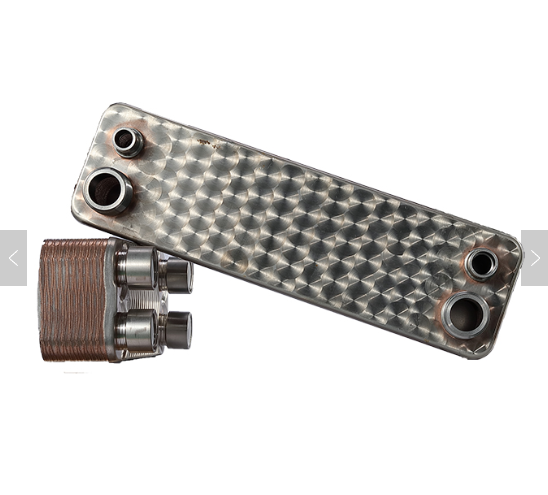

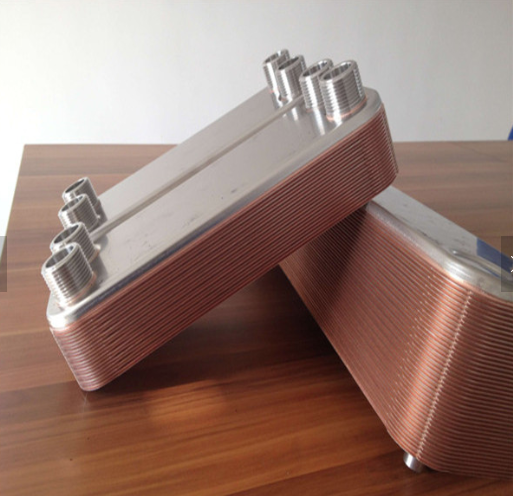

Carton Steel,Stainless Steel of Frame material Brazed plate heat exchanger
Carton Steel,Stainless Steel of Frame material Brazed plate heat exchanger
Product Description
| Technical parameter | |
| Product name | Condenser, Evaporator, Subcooler |
| Product model | B3-52A |
| Unit heat exchanging area | 0.052m2 |
| Maximum flowrate | 12m3/h |
| Plate material | 316L or 304 stainless steel |
| Welding material | 99.9% copper |
| Thickness of plate | 0.4mm |
| Volume per channel | 0.094L |
| Maximum number of plate | 120 |
| Design pressure | 3.0MPa or 4.5MPa |
| Test pressure | 4.5MPa or 6.0MPa |
| Design temperature | -195 ~+220 |
| Connections |
the biggest screw thread pipe for water: 5/4", the biggest welded pipe for liquid: 13/8"
|
| Capacity | 10-70KW |
| Basic flow disposition | F1 -> F3 F4 -> F2 |
| Application scope | Heat pump system, household type central air conditioning, afterheatrecycling, refrigeration equipment, industry cold water machine,cooleroil and so on |
Applications
This is an extremely popular unit for wood burning furnaces, radiant floor systems, refrigerant systems, straight vegetable oil conversions, beer chilling, air conditioning system and solar water heating systems. It will work for any application in which the desired result is for two fluids (liquid or gas) to exchange heat.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it takes 7-10 working days to finish products (when the order quatities is smaller than 200 pcs) ,and it is 10 days by DHL or Fedex if the goods are ready for samples. or it is 15-20 days by sea according to the different countries. .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charges, after you confirm the drawings.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Packaging Details
CARTON BOX, WOODEN BOX. METAL PALLET
Port:Shanghai or Ningbo
Supply ability :200000 Piece/Pieces per Year
Lead Time :
|
Quantity(Pieces) |
1 - 150 |
>200 |
|
Est. Time(days) |
12 |
To be negotiated |
