Finned Tube Air Conditioner Heat Exchanger Base Pipe OD 25-165mm Fin Depth 0.5-3mm
Finned tube heat exchanger Base pipe O.D:25-165mm and Fin depth:0.5-3mm
| Item | Details |
| Description | Heat exchanger, Air cooler |
| Cooling Medium | Air,Oil,Water or other liquid |
| Material |
Tube:Copper,Carbon/ Alloy steel,Stainless steel,Titanium Fins:Copper,carbon steel,Stainless steel or Aluminum |
| OD | 15-219mm |
| WT | 1.2-20mm |
| Min.Order quantity | 1 set. |
| Payment term: | TT |
| Delivery time |
Depends on the specific orders,normallywithin 40days. If you have drawings,it will be better for us to offer you.Please send it by email |
Specifications

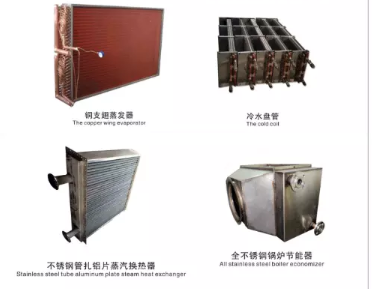

Chilled water cooling coil
Hot sale US market widely use on home heating
chilled water cooling coil
* Usage : For boilers, outdoor installed wood furnaces, composition of stoves
* Model:16*18*3 row
* Materials as bellow:
Tube coil: 3/8” seamless copper (3row)
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper
* Raw material: (1)Cu tube:3/8mm", (2)Al foil thickness: 0.13-0.2mm
* Application: outdoor wood furnace parts
* Structure: (1)pull and expanded type (2)slant inserting type
* Key process :prepare the material→starving tube and shaping→inserting fins
and enlarging tube→ leakage test→keeping pressure→packing
* Performance (1)Surface treated with powder coating to prevent corrosion
(2)inner cleanness
(3) Can satisfy the cooling capability requirements of the designed refrigerator.
* Producing capability 6 million sets per year
4, Lead Time
-
Quantity(Sets) 1 - 15 >50 Est. Time(days) 10 To be negotiated
- The last but not least ,we can do the customized once we received the drawing and specification .
