High Durability Finned Tube Heat Exchanger For Air Chiller Condenser Evaporator
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
3-15 days for 1-5 sets
Brand:
OEM/ODM
Product Description

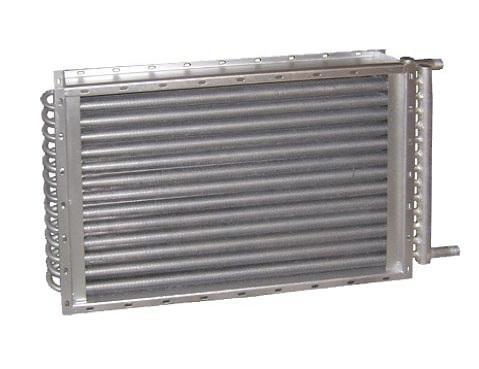

Finned tubes heat exchanger applied for Air Chiller, Condenser, Evaporator
Overview
Place of Origin:Jiangsu, China
Brand Name:OEM
Model Number:Customization
Type:Fin Tube
Application:Heater Parts, heating or cooling
Certification:CE
Fin material:stainless steel,carbon steel,copper, aluminum
Fin type:crimped or extruded
Tube material:stainless steel,carbon steel,copper, aluminum
Heat transfer efficiency:High efficiency
OD of Tube:18,21,25,16mm or customized
Width of fin:10,12,15,20mm or customized
Type:L,LL,KL,G type fins
Packing:Iron case
Service:OEM/ODM
Product Description:
| Name | Hot water tanks copper finned tubes/aluminum finned tubes for heat exchanger |
| Brand | OEM |
| Standard | ASME SA213/ASTM A213, ASME SA106/ASTM A106, ASME SA179/ASTM A179, ASTM B111/ASME SB111 |
| Base Tube Material | stainless steel, carbon steel, copper alloy, alloy steel (No theoretical limit) |
| Fin Material | Aluminium, Copper Alloy, Stainless Steel, Carbon Steel |
| Fin tube Max design temperature | <450°C |
| Fin Tube Type | 1.Extruded fins tube 2.Serrated fin tubes 3.L Type fins tube 4.G Type fins tube 5.LL Type fins tube 6.H Type fins tube 7.KL Type fins tube |
| Base pipe O.D | 25-165mm |
| Fins per inch | 20 Nos(as customer's request) |
| Fin depth | 0.5-3mm |
| No fin area on both side | As Customer's request. |
| Design Temperature | Below 450°C |
| Product processing | Extruded, Embedded, High Frequency Welding etc. |
| Ends | PE/Plain Ends, BE/Beveled Ends |
| Test Requirement | Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement. |
| Application | Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchanger, superheater, Boiler etc. |
| Certificate | ISO9001:2008, PED/97/23/EC and China Pressure Vessel Pipeline Manufacturing License(A1 & A2) |
| Capacity | 5000 tons/year |
| Package | In bundles, plywood cases, wooden cases with water-proof package, etc. |
| Product Origin | Jiangsu, China(mainland). |
| Trade Terms | FOB, CIF, CFR, DDP, EXW, etc. |
| Payment Terms | T/T, L/C |
| Nearest Port | Shanghai Port |
| Main Market | Domestic Market, North America, Western Europe, South America, Eastern Asia etc. |
Package

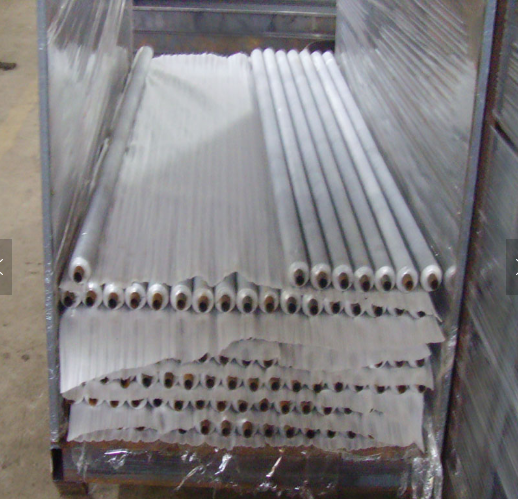

Packing with Plastic Mat, Waterproof Paper , drying agent/desiccant and plastic cap
For light ,short fin tubes ,we use exporting wooden case
For heavy, long fin tubes ,we use iron frame wooden case
On the top of the package ,we weld more square steel to protect the package
4, Lead Time
-
Quantity(Sets) 1 - 15 >50 Est. Time(days) 10 To be negotiated
- The last but not least ,we can do the customized once we received the drawing and specification .
