3.7kw Duct Pipe Bending Machine High Precision Max Bending Angle 180 Degree
3.7kw Duct Pipe Bending Machine High Precision Max Bending Angle 180 Degree
Specification
| Max.bending pipe diameter | 75*4mm |
| Max bending radius | R250mm |
| Max feed length | 3000mm |
| Max bending angle | 190° |
| Standard core length | 1600mm |
| Bending speed | Max40/S |
| Bending method | 1.Servo bending:7kw(three or more axes)2.Hydraulic bends |
| Feeding servo motor power | 3.7KW |
| Permissible number of elbows in pipe fittings | 1.16pcs(PLCtype)2.33pcs(Industrial computer type) |
| Number of stored parts | 1.1000 million groups(PLC type) 2.200 million groups(Industrial computer type) |
| Hydraulic motor power | 7.5KW |
| Machine dimensions | 5200mm*1350mm*1230mm |
| Machine weight | 4500kgs |

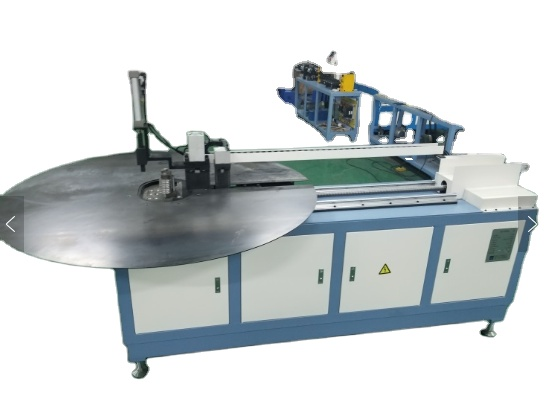

Detailed image
-
-
![]()
Product Application

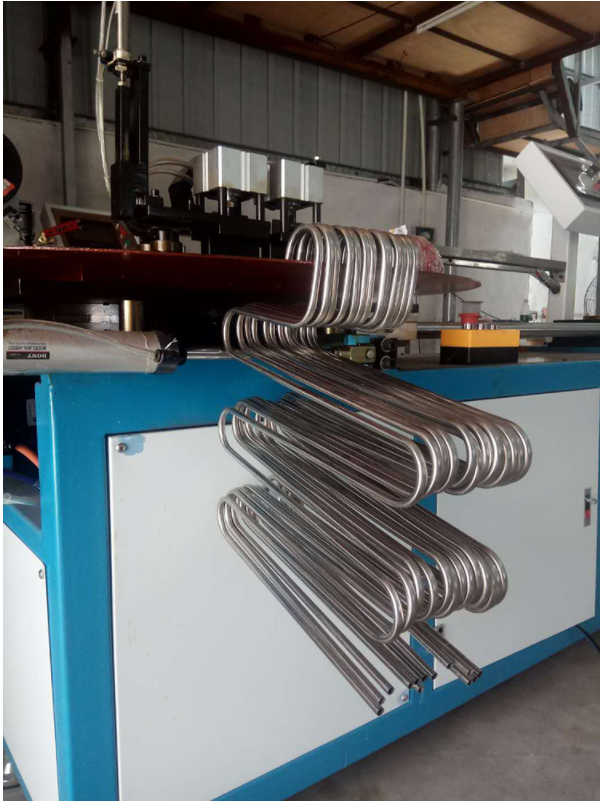

M Shape aluminum copper bundy condenser tube bending machine for hairpin pipe
Can be used for copper, aluminum, Bundy tube, refrigerator freezer wire-tube evaporator, condenser, fin evaporator production and processing.
After years of research and development and practice, strengthened strength of winding tube, while improving the convenience of the winding tube mold replacement. More critical, from the traditional one-processing 4-5 root canal to one-processing 8-10 root canal, increasing production efficiency, saving labor costs. (The multi-station freezer evaporator full-hard copper tube rotary CNC bending machine has applied for national invention patent.3D
