7.5kw Copper Tube Bending Machine , fully CNC powered systems
7.5kw Copper Tube Bending Machine , fully CNC powered systems
Specification

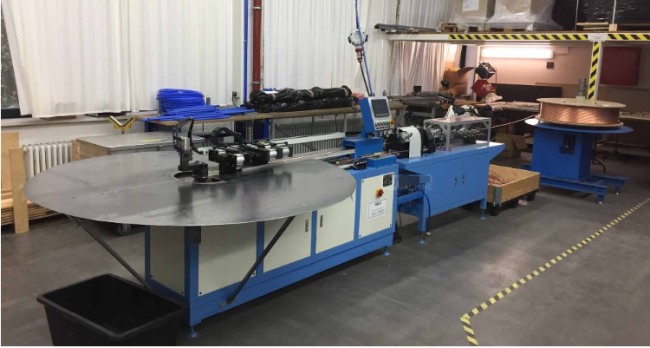

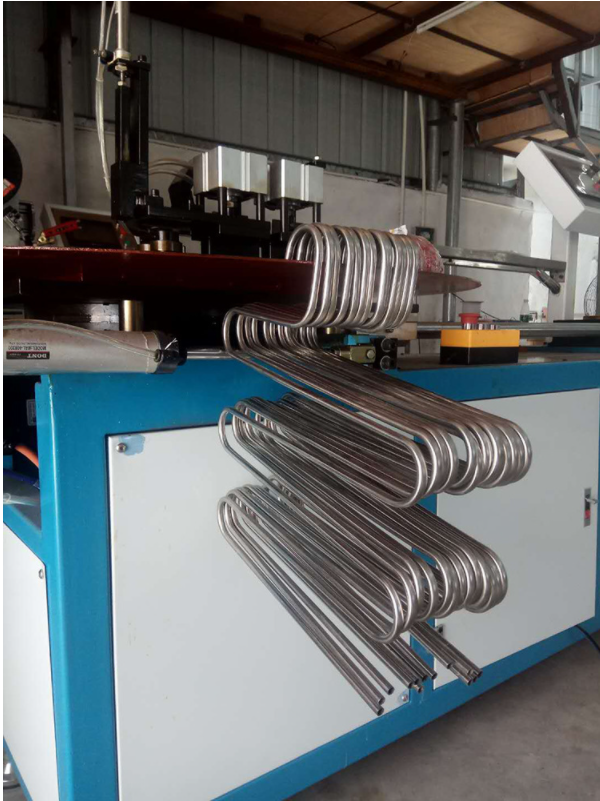

The full automatic serpentine bender is used to process single aluminum/ copper / Bundy tube with de-coiling, straightening and cutting machine and bending function in one line automatically. Compare to traditional anual process, the full-automatic machine improve the work efficient and save labor cost greatly.
-
No. Item Data 1 Applied material steel tube, bundy tube, copper tube, aluminum tube 2 Diameter range 3-12mm 3 Thickness range 0.3-1mm 4 Bending radius R9-R35 5 Bending angle 1-180 6 Bending times Max 110 7 Station 1-8, adjustable 8 Feeding speed 10-700mm/time 9 Table diameter 2m 10 Operation Automatic feeding and bending 11 Control Human-computer interface touch screen, PLC 12 Power 6.5KW, 220V, 50Hz 13 Dimension 2900*700*1520mm -
Main Features
1. Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
2. High accuracy concentricity ensures to get good welding quality in following process.
3. Chipless cutting with 360°rotary cutting and stretching with two points clamping.
4. Patented special designed servo control bending system for different bending direction and bending angle in exact size. (Patent No.: ZL 2011 1 0092227.X)
5. Patented special designed bending tools ensure exact bending radius, less deformation and good appearance (Patent No.: ZL 2011 2 0107426.9)
6. Patented special designed bending structure ensures the stable performance for up to 10-12 grouped tubes in one time. (Patent No.: ZL 2009 2 0013741.8)
7. Servo drive system, PLC control system, and touch screen control to get high accuracy product size with easy operation and maintenance.![]()
![]()
Packaging & Delivery
- Packaging Details:CNC copper tube bending machine is packaged within wooden case
- Port: Shanghai
- Lead Time :
-
Quantity(Sets) 1 - 2 >2 Est. Time(days) 15 To be negotiated
