11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 20-25days

Brand: OEM/ODM

Product Description

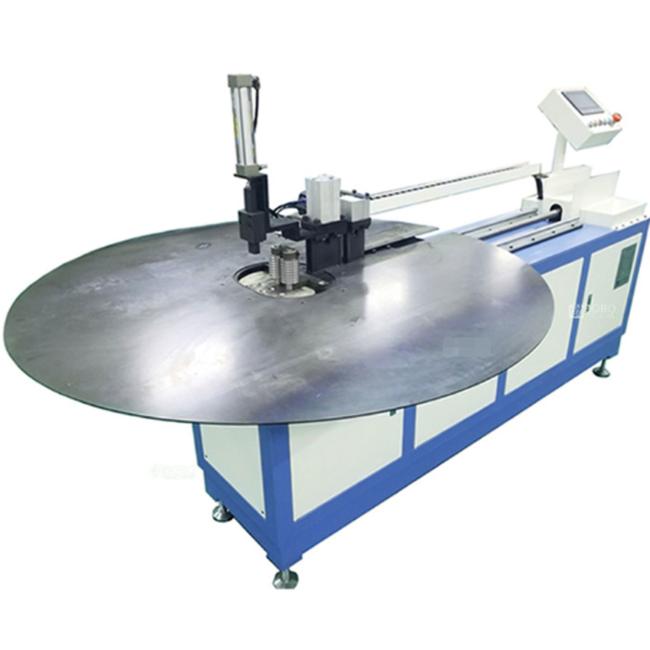

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

Specification

1	Tube Material	Copper tube / Aluminum tube /Bundy tube
2	Tube Diameter	Φ3-12mm
3	Tube Wall Thickness	0.3-1.0mm
4	Bending Capacity	Single tube
5	Bending Angle	1~180 degree
6	Bending Radius	R11~R30
7	Bending Times	Up to 110 times/cycle
8	Feeding length	0-700mm/time, max. 3 times
9	Rotary Table Size	Φ2000mm
10	Control System	PLC control / Touch Screen
11	Air Pressure	0.5-0.6MPa
12	Motor Power	13KW
13	Electric System	380V, 50Hz, 3Phae (Customized)
14	Dimension	4800 x 1300 x 1680 mm (Excluded Table)
15	Weight	About 3000 KG

Product Description

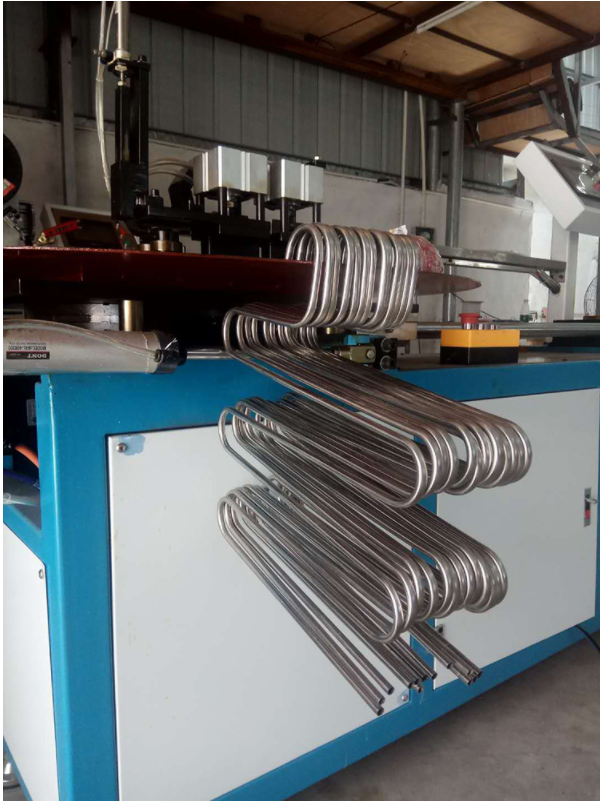

The full automatic serpentine bender is used to process single aluminum/ copper / Bundy tube with de-coiling, straightening and cutting machine and bending function in one line automatically. Compare to traditional manual process, the full-automatic machine improve the work efficient and save labor cost greatly.

Detailed image

Structural features

1, bending machine using touch screen plus CNC module, dialogue operation, easy to set the program;.

2, the bed structure is solid, not easy to deformation.

3, each file can set 16 bending angle, the memory can be stored in 16 groups of files.

4, all slow positioning function, bending angle stability, repeat accuracy of ± 0.1 °.

5, the error message is displayed on the screen to help the operator immediately to eliminate.

6, to provide self-developed coordinates to convert the bend processing values, software can be installed in the desktop computer optional editing calculations.
