8mm Copper Tube Vertical Expander Equipment For Different Types Coil
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
20-25days
Brand:
OEM/ODM
Product Description
8mm Copper Tube Vertical Expander Equipment For Different Types Coil
Specification
| No. | Item | Content | Item | Content |
| 1 | Copper tube O.D. and W.T. | φ7.94*0.4 | Processing(hairpin) length | Min:30 |
| 2 | Pattern type | 46*6 | Hole pitch * Row pitch | 25mm*2 |
| 3 | Nozzle height (A) | 11mm | Collar height(B) | 1.5m |
| 4 | Flaring length(C) | 6mm | Base height (L) | 16mm |
| 5 | Collar angle | 60° | Bullet diameter | φ7.78mm |
| 6 | Flaring diameter(D2) | φ8.16 | Upper clapboard height(H1) | 45mm |
| 7 | Down clapboard height(H2) | 100mm | Upper clapboard pitch( U) | 10mm |
| 8 | Down clapboard pitch(V) | 20mm | ||
| 9 | Max Number of tubes expanded at one time | 276 | ||
| 10 | Expansion mode | with shrinkage | ||
| 11 | Expansion main power | Servo motor | ||
| 12 | Flaring deepth control of two to three times | Servo motor | ||
| 13 | Expansion height control | Rotary table to load the coil | ||
| 14 | Loading -coil worktable | Servo motor | ||
| 15 | Flaring height control of two or three times | Double oil cylinder | ||
| 16 | Efficiency | expanding 3-5m/min ; retracting: 7-8m/min | ||
| 17 | Compressed air pressure | 0.4-0.6Mpa | ||
| 18 | Hydraulic system pressure | 7Mpa | ||
| 19 | Locking power of upper collet | Hydraulic system | ||
| 20 | Hydraulic motor power | 22KW | ||
| 21 | Cooling mode of hydraulic system | water cooling | ||
| 22 | Overall size | 2675mm*2580mm*8059mm | ||
| 23 | Total power | ≤25KW | ||

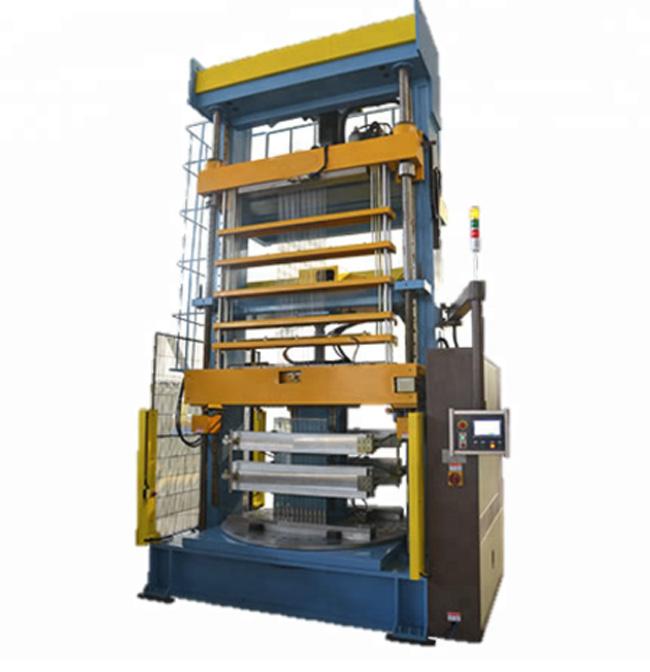

Detailed image
Features
Parameters can be adjusted automatically for different coil types.
Set-up data for each coil type can be memorized. Changeover between
different coil types is very quick.
Function
1. automatic expansion rod selection (QG)
2. automatic control of coil height (QL)
3. quick adjustment of front door panel and back door panel, automatic data memorization, quick changeover.
4. optional conveyor for auto loading and unloading.
Packing Details :
| Packaging | |
| Size | 2875mm*2780mm*8559mm |
| Weight | 510 KG |
|
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Delivery Details :
45-120 days after approval of your
specification and receipt of your payment for new clients.
- Port: Shanghai
- Lead Time :
-
Quantity(Sets)
1 - 1
>1
Est. Time(days)
60
To be negotiated
