Product Description

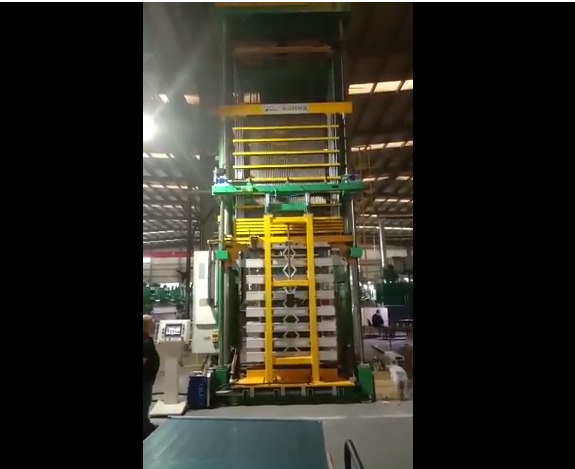

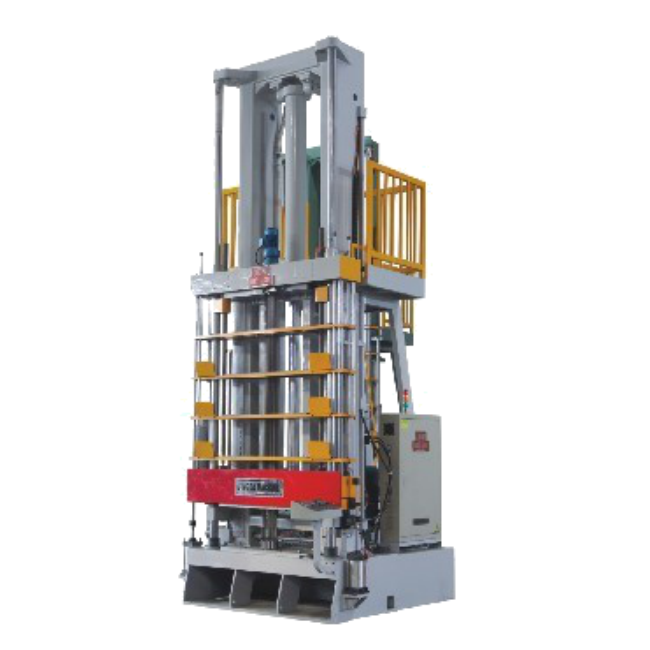

The vertical expansion is specially used for fin type heat exchanger. In one working cycle the machine can expand the tube inside and tube mouth, and also can fold-edge.
The expansion cylinders are placed above the expansion bars, which is a special tube expansion equipment for large-scale air conditioner production.
The expansion cylinders are placed inside the machine body. The expansion force is transmitted through the force transmission stand. This machine type can reduce the overall machine height, normally used for tube expansion of central air-conditioner and ceiling type air conditioner heat exchangers.
Vertical Expansion Machine Specification
| Machine | Vertical Expansion Machine | |
| Heat Exchanger Specification | Normal copper tube outer diameter (mm) | 7mm, 7.94mm,9.52mm |
| Normal fin thickness (mm) | 12.7,19.05,21.65,22 | |
| Length (mm) | 220~1000/1200/1600/2000/2500 | |
| Row quantity | 1~5 | |
| Max holes per row (based on hole-to-hole distance at 25mm) | 61 | |
| Expansion speed | Fast speed (m/min) | >4 |
| Slow speed (m/min) | >0.7 | |
| Oil pump motor power (kw) | 11/15 | |
| Oil cylinder diameter (mm) | Diameter 160/180/200 | |
| Hydraulic oil | ISOVG32(winter)/ISOVG46(summer) | |
| Lubrication oil | Mechanical oil ISOVG22-32 | |
Function
1. automatic expansion rod selection (QG)
2. automatic control of coil height (QL)
3. quick adjustment of front door panel and back door panel, automatic data memorization, quick changeover.
4. optional conveyor for auto loading and unloading.
Detection device

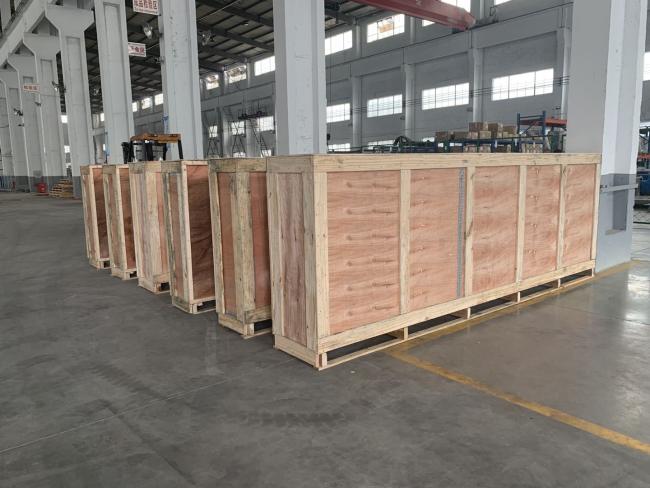

Delivery Details :
45-120 days after approval of your
specification and receipt of your payment for new clients.
- Port: Shanghai
- Lead Time :
-
Quantity(Sets)
1 - 1
>1
Est. Time(days)
60
To be negotiated
