Mutifunctional Automatic Tube Bender W 220-600 Bending Dimension Customized
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
20-25days
Brand:
OEM/ODM
Product Description
Mutifunctional Automatic Tube Bender W 220-600 Bending Dimension Customized
Specification
| Max.bending pipe diameter | 75*4mm |
| Max bending radius | R250mm |
| Max feed length | 3000mm |
| Max bending angle | 190° |
| Standard core length | 1600mm |
| Bending speed | Max40/S |
| Bending method | 1.Servo bending:7kw(three or more axes)2.Hydraulic bends |
| Rotor tube servo motor power | 1KW |
| Feeding servo motor power | 1.5KW |
| Permissible number of elbows in pipe fittings | 1.16pcs(PLCtype)2.33pcs(Industrial computer type) |
| Number of stored parts | 1.1000 million groups(PLC type) 2.200 million groups(Industrial computer type) |
| Hydraulic motor power | 7.5KW |
| Machine dimensions | 5200mm*1350mm*1230mm |
| Machine weight | 4500kgs |

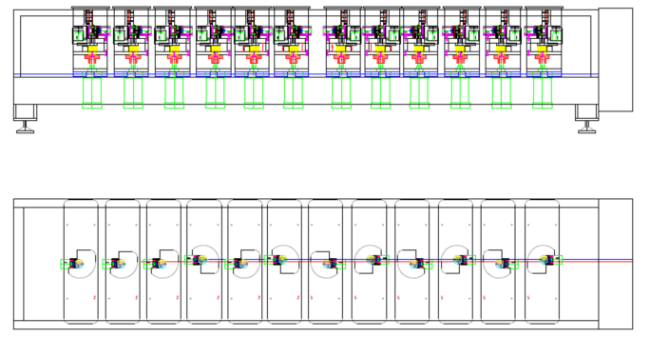

structure of the machine
Ø platform
Ø bending part
Ø body frame
Ø PLC control panel
Ø Electric case
Ø others
Product Description

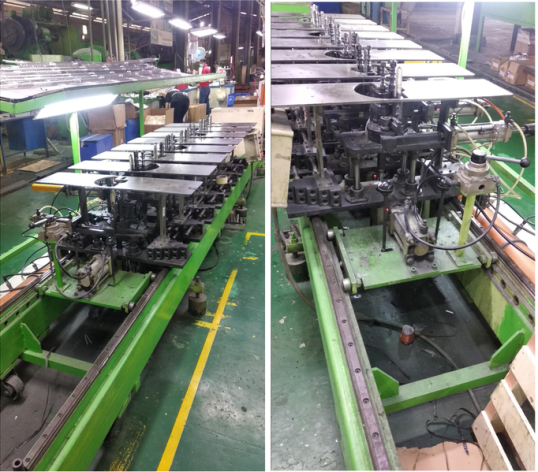

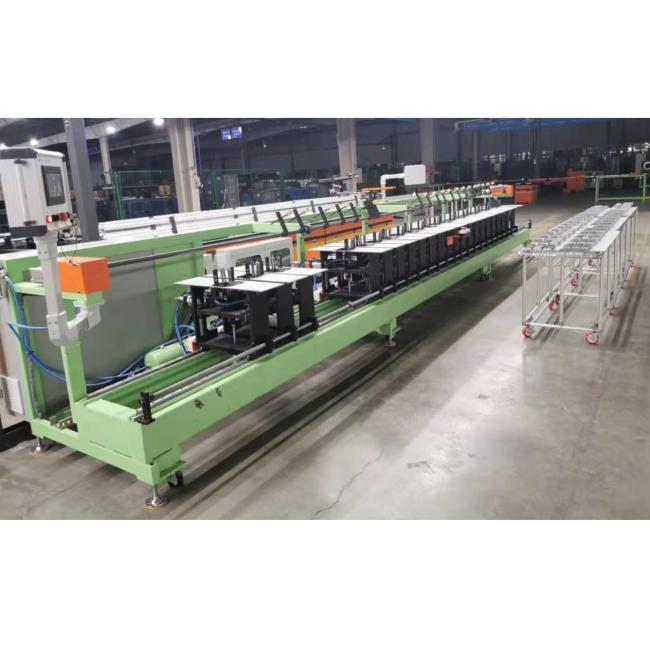

This bending machine is “multi bender bending machine”, applies for pull expanding or pushing expanding type fin evaporator.
1) Qty of Benders: Maximum20, according to request.
2) Radius of bender: R15 Al tube out diameter after expandingφ8.5mm
3) Bending dimension W 200～600
Technical parameters
| No. | item | specific/Brand | Remark |
| 1 | Quantity of bender | Maximum 20 benders | depend on the requires |
| 2 | R of bending | R15 | If different pls advice |
| 3 | Tube diameter | φ8.5mm after expanding | Aluminum tube A1070/1060 O |
| 4 | Bending dimension | W 220～600 | depend on the requires |
| 5 | Productivity | 1000pcs/shift/8h/operator | based on 10 benders |
| 6 | PLC | Delta | Can be defined |
| 7 | Body frame | Steel, painted | Color: green, similar as the photo |
| 8 | Air pressure | Min 6 bar(≥0.6MPa) | |
| 9 | Power rating | 2 KW | |
| 10 | voltage | 380V, 50HZ | according to local voltage |
Supply Ability
- Supply Ability:30 Set/Sets per Month Refrigerator condenser evaporator steel bundy aluminum copper
Packaging & Delivery
- Packaging Details:CNC copper tube bending machine is packaged within wooden case
- Port: Shanghai
- Lead Time :
-
Quantity(Sets) 1 - 2 >2 Est. Time(days) 15 To be negotiated
