Tube End Automatic Tube Shrinking Machine High Productivity
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
20-25days
Brand:
OEM/ODM
Product Description
Tube End Automatic Tube Shrinking Machine High Productivity
Specification
| Max pipe dia | Copper/Aluminum Φ30mm |
| Max work thickness | 2．5mm |
| Work station | 1,3,6 |
| Work efficiency | 3—6sec/cycle |
| Electic control mode | PLC |
| Operation mode | Auto/Manual/Jog |
| Loading mode | manual |
| Driving mode | hydraulic |
| Max clamping force | 4000kg |
| Max clamping travel | 50-1000mm |
| Max stress | 4000kg |
| Tolerance of depth | ＜0.5mm |
| Tolerance of coaxial | ＜0.1mm |
| Power | 3 phase 380V50HZ |
| Hydro motor power | 3.75KW |
| Hydraulic system pressure | 8Mpa |

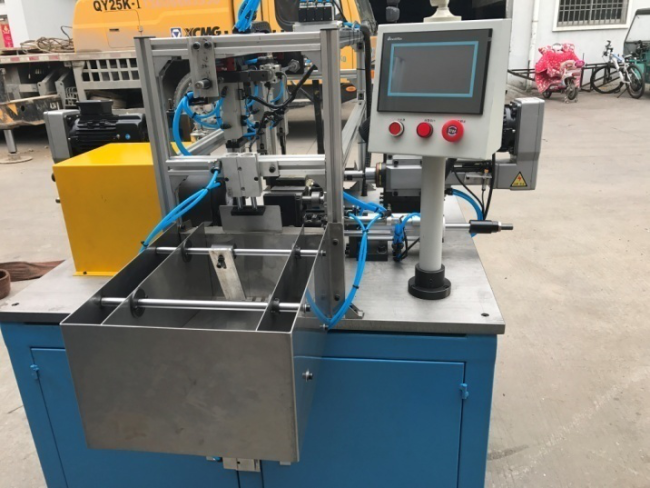

Structure of the machine
- tube loading box
- swaging machine
- tube end chamfering structure
- mechanical hands
- touch screen&PLC
- body frame
- Electric case
- Others
![]()
-
Main specification
1) PLC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds
Packaging & Delivery
Packing :Standard exporting polywood box
Port:Shanghai, China
Lead Time :10 days
