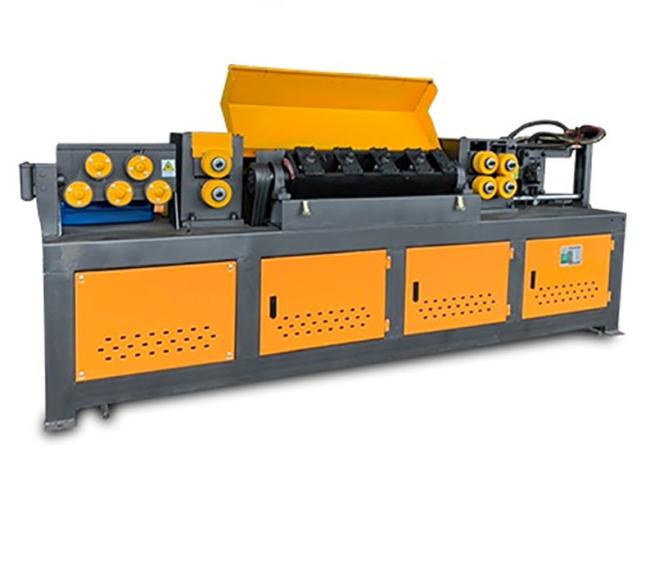

Copper Aluminum Bundy Tube Straightener Cutter High Accuracy Concentricity

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 20-25days

Brand: OEM/ODM

Product Description

Copper Aluminum Bundy Tube Straightener Cutter High Accuracy Concentricity

Specification

Parameters
Product brand	OEM/ODM
Product model	AD-6-16
Product voltage	380V
Product power	7.5KW
Straightening range	6-16mm
Straightening machine	5.5KW copper wire motor
Straightening speed	20m/min
Cut off range	6-16mm
Cut off the motor	2.2KW copper wire motor
Number of feed ports	6
The length of the shortest	300mm
Total Weight	500KGS
Dimensions	130010001100CM

Production Description

Copper aluminum bundy tube straightener and cutting machine is special designed for copper and aluminum tube process, which is mainly used for tube blanking before tube bending or welding process of condenser and evaporator.

Compare to normal design with two-half clamping die, we design the clamping die in three parts according to lathe chuck structure, which can minimize the tube distortion during cutting, and the clamping die changing / adjustment will be more easier.

Main Features

◆ Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
◆ High accuracy concentricity ensures to get good welding quality in following process.
◆ Chipless cutting with 360° rotary cutting and stretching with two points clamping.
◆ Straightening wheel Nylon and “U” shape rubber belt to avoid scratch on tube surface.

	Parameter	Data
1	Tube Material	Copper / Aluminum / Bundy tube
2	Tube Diameter	4-20mm
3	Cutting Length	>50mm
4	Work Speed	0~60m/min, adjustable by Inverter
5	Cutting Tolerance	0.5mm/1m
6	Control System	PLC control / HMI
7	Motor Power	1.12KW
8	Electric System	380V, 50Hz, 3Phae (Customized)
9	Dimension	2300 x 650 x 1300 mm
10	Weight	460 KG
