380V 50Hz Tube Straightening Cutting Machine , Aluminum / Copper Tube Straightener Cutter
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
20-25days
Brand:
OEM/ODM
Product Description
380V 50Hz Tube Straightening Cutting Machine , Aluminum / Copper Tube Straightener Cutter
Specification
| Item | Data |
| Applicable copper tube | Coil, TP1/2 (M/M2) |
| Applicable copper tube diameter | Ф2.0~Ф6.5mm |
| Applicable copper tube wall thickness | 0.2~0.5mm |
| Cutting length range | 40mm~ unlimited |
| Cutting length tolerance | ≤0.3mm /1000mm |
| Length difference among two pieces | ≤0.5mm |
| Cutting pieces in one cycle | max. 2 tubes |
| Cutting speed | 8 cuts per minute (@L=1000mm) |
| One time feeding stroke | continuous feeding, no limit |
| Coil tube pay-off device | only one transmitting bridge coils horizontal laying on ground |
| Total electric power | 1.0kW |
| Pneumatic pressure | 0.5~0.7MPa |
| Machine dimension | 2600 x 1200 x 1500mm |
| Pay-off device dimension | 2000 x 1000 x 2000mm |
| Total weight | about 1400kg |

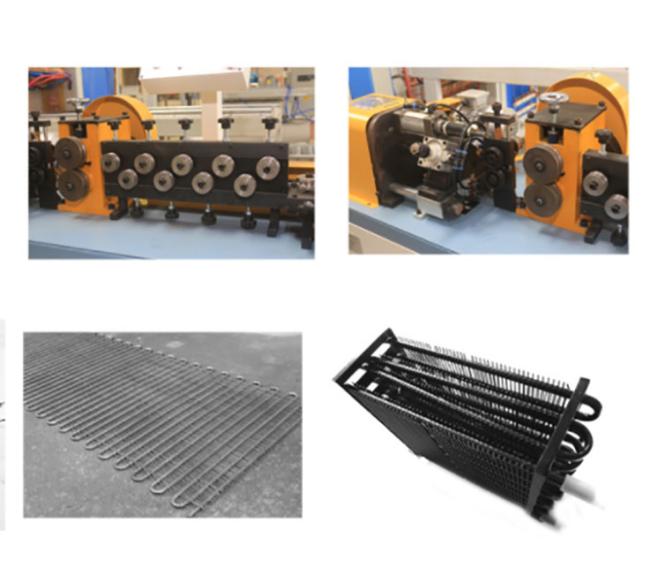

Detailed iamge
Features
1.Servo CNC, accurate locating, stable feeding.
2.High degree of automation, convenient adjustment.
3.With snapping function, little shrinking of pipe end.
Guarantee
The guarantee period is one year since the date B/L. During this period, we will offer free parts for changing if machine quality problem.
Also the spare parts can be offered in original cost after that. The freight for part sending will be paid by buyer.
Supply Ability
- Supply Ability:20 Set/Sets per Month Automatic coil steel bundy aluminum copper tube pipe
