High Efficiency Tube Shrinking Machine For Condenser Evaporator Manufacturing
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
20-25days
Brand:
OEM/ODM
Product Description
Tube shrinking machine can make good connection during condenser and evaporator manufacturing
Description

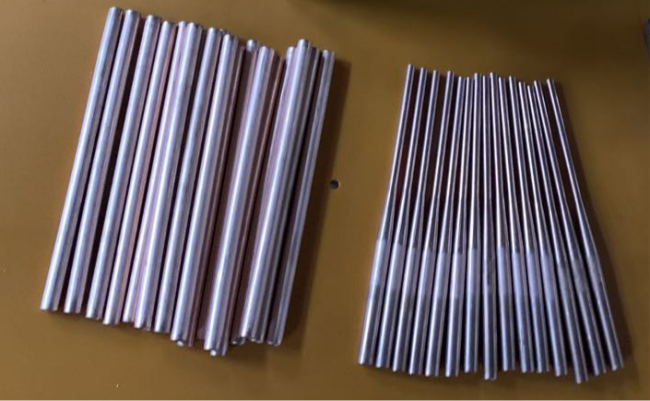

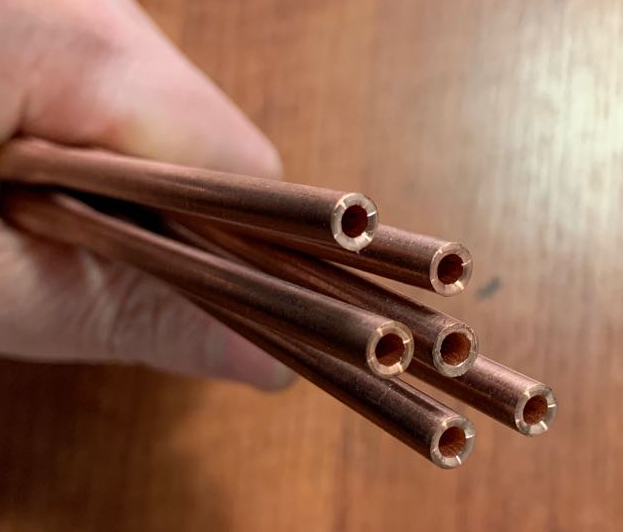

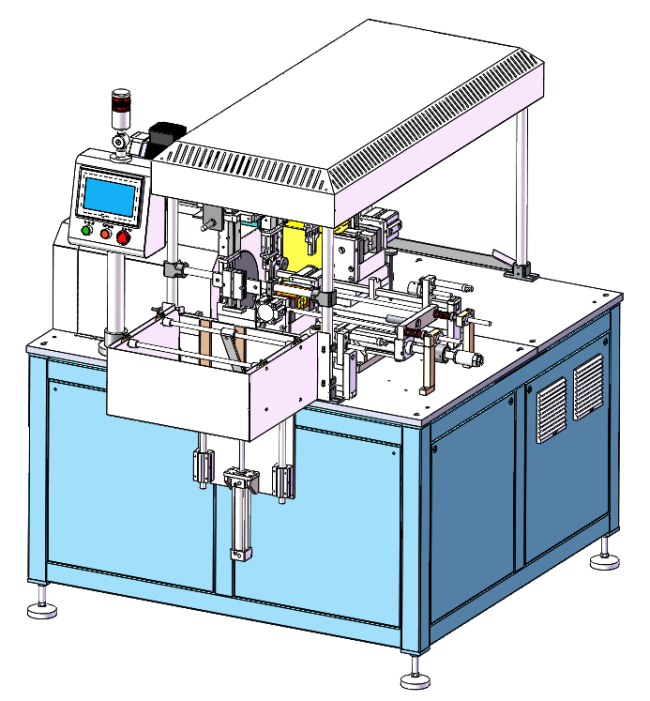

Automatic Shrinking machine is specially used to narrow the diameter of copper, aluminum or steel pipe in order to make good connection during condenser and evaporator manufacturing. It is with PLC control, auto feeding, auto shrinking and auto discharging, easy operation, high efficiency.
Technical parameter
| Type | idea-40 | idea-60 | idea-80 | idea-100 |
| Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
| Max processing length(mm) | 110 | 130 | 150 | 180 |
| Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
| Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
| Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
| Weight(kg) | 600 | 950 | 1600 | 1800 |
| Remark | 1.The max processing length can according to customers requirement. |
|||
Application
Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language
Packaging & Delivery
Packing :Standard exporting polywood box
Port:Shanghai, China
Lead Time :10 days
