CE 1/4HP Air Fan Louvered Fin Heat Exchanger Hydrophilic 8 Rows
CE 1/4HP Air Fan Louvered Fin Heat Exchanger Hydrophilic 8 Rows
Specification
| Finned tube type | Diameter (mm) | Fin specific | ||
| Tube | Finned O.D | W*t | F.P | |
| Steel-steel SRZ | Φ21*2.0 | Φ41 | 10*0.4 | 5.0/6.0/8.0 |
| Steel-steel GLII | Φ21*2.0 | Φ41 | 10*0.3 | 5.0/6.0/8.0 |
| SS-AL BGL | Φ21*2.0 | Φ41 | 10*0.3 | 3.2/5.0/6.0 |
| SS-SS | Φ21*2.0 | Φ41 | 10*0.3 | 3.2/5.0/6.0 |
| Φ21*2.0 | Φ51 | 15*0.3 | 3.2/5.0/6.0 | |
| Φ25*2.0 | Φ45 | 10*0.3 | 3.2/5.0/6.0 | |
| Φ25*2.0 | Φ55 | 15*0.3 | 3.2/5.0/6.0 | |
| Copper-Al | Φ16*1.0 | Φ36 | 10*0.2 | 3.2/4.2/5.0/6.5 |
Heat Exchanger Specification
1. Tube material: carbon steel/ copper tube
2. Fin material: Hydrophilic, bare, black foil, copperfoil, gold foil
3. Frame material: galvanizedsteel/Zinc galvanized steel/Stainless steel
4. Fin type: Flat fin, Corrugated fin, Louvered / Lanced fin
5. Tube: diameter 7mm, 7.94mm, 9.52mm, 12.7mm, 15.88mm. internal thread or smooth tube.
6. Use media: water/steam/refrigeration
7. Tube rows:2rows, 3rows, 4rows, 6rows, 8rows,
* Design,manufacture and sale of products in accordance with consumer needs
* Provide all kinds of convenience for consumers
Company information
Changzhou Aidear Refrigeration Accessories Factory designs and manufactures a wide
range of heat exchangers for refrigeration, industrial and special applications .
Our evaporators and condensers can be manufactured with different materials and can
work with all types of fluids and with duty up to 6000 kW.
We are prepared for the solution of different heat exchange problems, thanks to the widest
experience of technical departments able to suggest technical solutions best suited to each
customer's need .

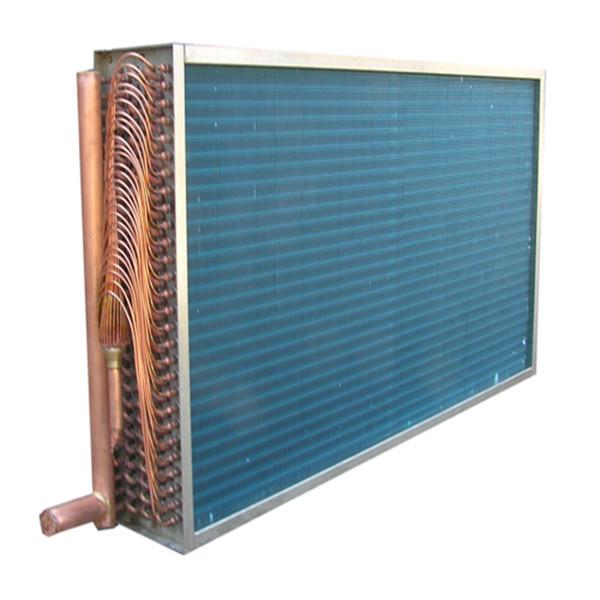

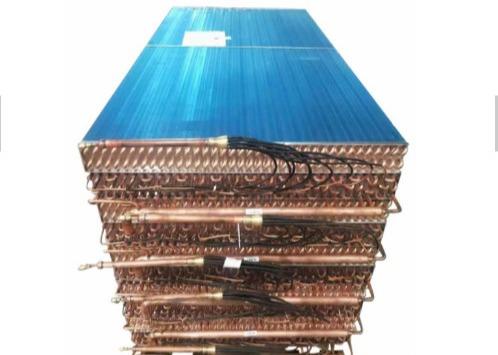

Detailed image
