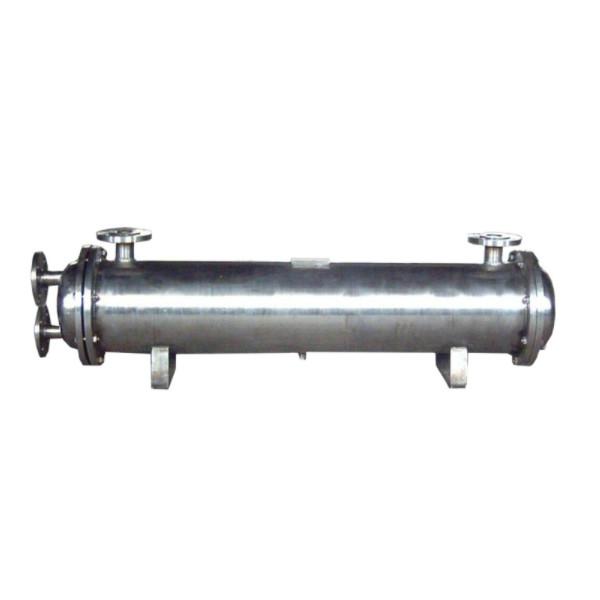

SS304 Air conditioner shell and tube heat exchanger for heat pump
SS304 Air conditioner shell and tube heat exchanger for heat pump
Product description
| Tube Size | Fin (OD) | Fin Height | Fin Thickness | Fins Distance |
| Φ18x2 mm | Φ38mm | 10 mm | 0.45 mm | 3 mm |
| Φ21x2 mm | Φ45 mm | 12 mm | 0.35 mm | 3 mm |
| Φ21x2 mm | Φ51 mm | 15 mm | 0.35 mm | 3 mm |
| Φ25x2 mm | Φ50 mm | 12.5 mm | 0.3 mm | 3 mm |
| Φ25x2 mm | Φ55 mm | 15 mm | 0.3 mm | 3 mm |
| Φ32x3 mm | Φ62 mm | 15 mm | 0.3 mm | 3 mm |
| Other finned tube size can be customized. | ||||
The tubular heat exchanger (also known as tubular condenser) is a highly efficient heat exchange equipment, suitable for steam-vapour steam-liquid, liquid-liquid, convection heat transfer. It is mainly composed of shell, tube plate, heat exchanger tube, head, baffle plate and so on. The required material can be made of ordinary carbon steel, copper, or stainless steel respectively. In the heat exchange, a fluid from the head of the connecting tube at the entry, in the tube flow, from the other end of the head of the export tube out, which is called the tube process; the other - a fluid from the shell of the receiver into, from the shell of another receiver out, which is called the shell process of tubular heat exchanger.

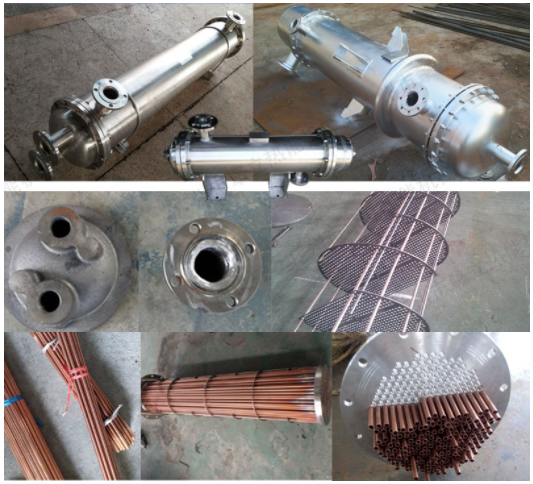

Detailed image
