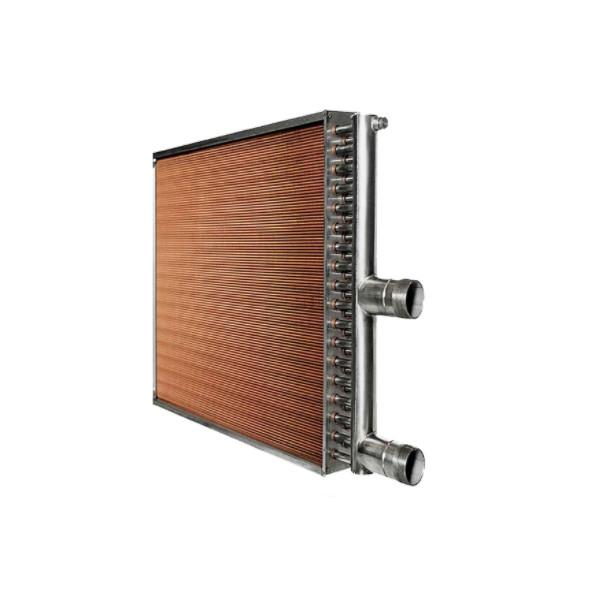

Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
3-15 days for 1-5 sets
Brand:
OEM/ODM
Product Description
Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Specification
| Copper tube |
Die specific mm(inch) |
Fin shape |
Fin pitch (mm) |
Rows | Material | ||
| surface | Edge | Tube | Fins | ||||
| Φ5(1/5”) | 19.5*11.6 (0.768’’*0.457’’) | Louvered/V-wave | straight | 1.1-1.8 | 1-4 | copper | Al |
|
Φ7 (0.276”) |
21*12.7 (0.827’’*0.5’’) | Slit/louvered | straight | 1.2-2.0 | 1-4 | copper | Al |
| 21*18.3 (0.827’’*0.72’’) | V-wave/plat | Straight/waved | 1.2-3.0 | 1-4 | copper | Al | |
|
Φ7.94 (5/16”) |
22*19.05 (0.866’’*0.75”) | Louvered/waved/plat | Straight | 1.2-3.0 | 1-4 | copper | Al |
| 25.4*19.05 (1”*0.75”) | Louvered/waved/plat | straight | 1.3-4.0 | 1-6 | copper | Al | |
| 25.4*15.88 (1”*0.625”) | waved/plat | Straight/waved | 1.3-4.0 | 1-6 | copper | Al | |
| 25.4*22 (1”*0.866”) | Louvered/waved/plat | straight | 1.3-4.0 | 1-4 | copper | Al | |
| 30*30 (1.18”*1.18”) | Corrugated Wave | straight | 4.0-5.0 | 1-6 | copper | Al | |
|
Φ9.52 (3/8”) |
25*21.65 (0.984”*0.852”) | S-V/V-W/louvered/plat | Straight/waved | 1.5-3.2 | 1-12 | copper | Al |
| 25*21.65 (0.984”*0.852”) | S-W/plat | Straight/waved | 1.8-7.0 | 1-12 | copper | Al/SS | |
| 25.4*22 (1”*0.866”) | Louvered/waved/plat | Straight/waved | 1.5-3.2 | 1-12 | copper | Al | |
| 25.4*22 (1”*0.866”) | Plat/waved | Straight/waved | 3.2-6.35 | 1-12 | copper | Al | |
| 25.4*15.88 (1”*0.625”) | Waved/plat | Straight/waved | 1.3-4.0 | 1-12 | copper | Al | |
| 25.4*25.4 (1”*1”) | Plat | Straight | 3.2-6.35 | 1-12 | copper | Al | |
| 31.75*27.5 (1.25”*1.083”) | V-W/plat | Straight | 3.2-6.35 | 1-12 | copper | Al | |
|
Φ12.7 (1/2“) |
31.75*27.5 (1.25”*1.083”) | S-W/plat | Straight | 1.8-6.35 | 1-12 | Copper/SS | Al/T2/SS |
| 38.1*38.1 (1.50“*1.50“) | S-W/plat | Straight | 4.0-6.35 | 1-6 | Copper/SS | Al/T2/SS | |
Company information
Changzhou Aidear Refrigeration Accessories Factory designs and manufactures a wide
range of fin type heat exchangers for refrigeration, industrial and special applications .
Our evaporators and condensers can be manufactured with different materials and can
work with all types of fluids and with duty up to 6000 kW.
We are prepared for the solution of different heat exchange problems, thanks to the widest
experience of technical departments able to suggest technical solutions best suited to each
customer's need .

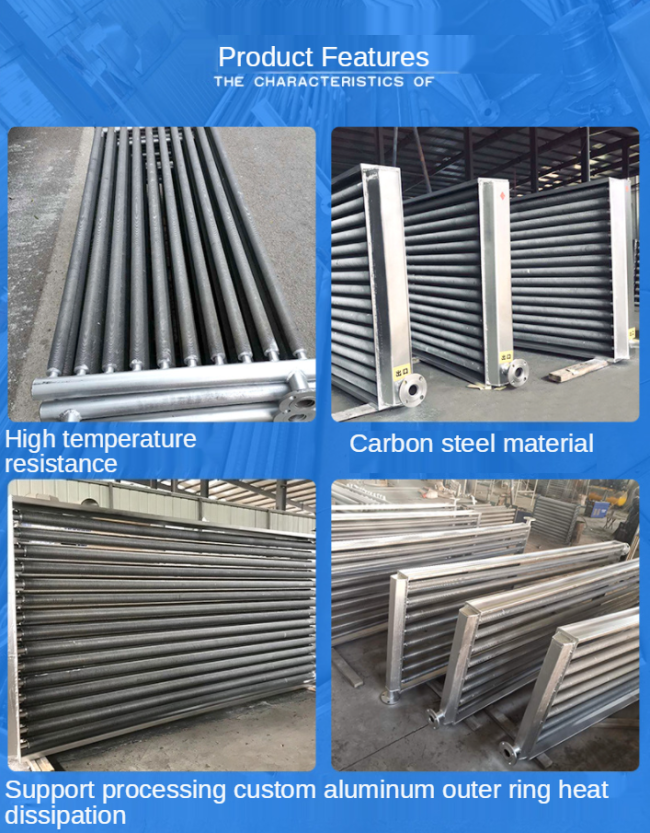

Detailed image
