Low Pressure Brazed Aluminum Fin Type Heat Exchanger for Ethylene glycol
Low Pressure Brazed Aluminum Fin Type Heat Exchanger for Ethylene glycol
Specification
| Tube Size | Fin (OD) | Fin Height | Fin Thickness | Fins Distance |
| Φ18x2 mm | Φ38 mm | 10 mm | 0.3 mm | 4-5 mm |
| Φ21x2 mm | Φ45 mm | 12 mm | 0.3 mm | 5-8 mm |
| Φ21x2 mm | Φ51 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ50 mm | 12.5 mm | 0.3 mm | 5-8 mm |
| Φ25x2 mm | Φ55 mm | 15 mm | 0.3 mm | 5-8 mm |
| Φ32x3 mm | Φ62 mm | 15 mm | 0.3 mm | 8-10 mm |
|
Other finned tube size can be customized. (Materials S/S 201, S/S 304, S/S 316 are optional) |
||||

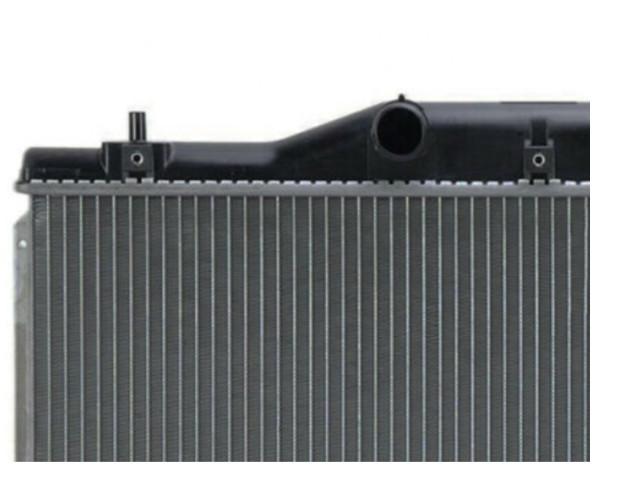

Detailed image
Application
Finned tube heat exchanger is applied and equipped with fins on one side to increase the heat transfer area, improve the degree of turbulence in the fluid and the convection heat transfer coefficient when two fluid convection heat transfer coefficient has large difference.
Tube Fin Heat Exchangers, also called finned coil heat exchangers, consist of tubes that pass through a dense fin stack that is mechanically supported by a mounting frame. Fluid passes through the tube coils, conducts heat to the fins and dissipates heat to air forced through the heat exchanger.
