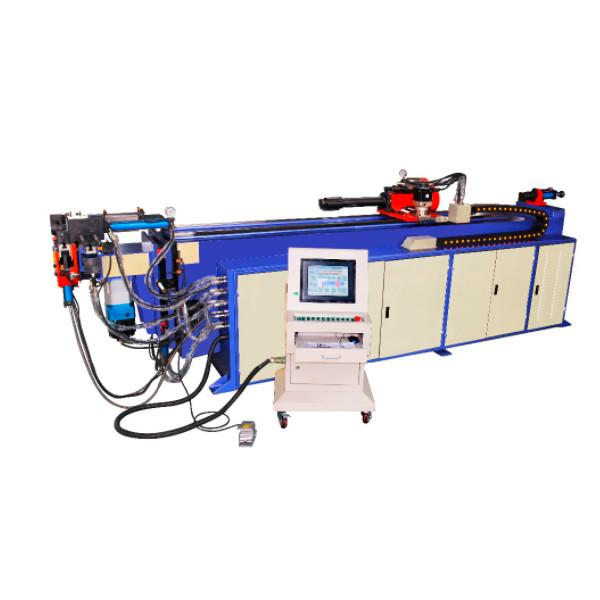

5.5kw Hydraulic Mandrel Pipe Bending Machine Stainless Steel PLC Control
5.5kw Hydraulic Mandrel Pipe Bending Machine Stainless Steel PLC Control
Specification
| 1 | Tube Material | Copper tube / Aluminum tube /Bundy tube |
| 2 | Tube Diameter | Φ3-12mm |
| 3 | Tube Wall Thickness | 0.3-1.0mm |
| 4 | Bending Capacity | Single tube |
| 5 | Bending Angle | 1~180 degree |
| 6 | Bending Radius | R11~R30 |
| 7 | Bending Times | Up to 110 times/cycle |
| 8 | Feeding length | 0-700mm/time, max. 3 times |
| 9 | Rotary Table Size | Φ2000mm |
| 10 | Control System | PLC control / Touch Screen |
| 11 | Air Pressure | 0.5-0.6MPa |
| 12 | Motor Power | 13KW |
| 13 | Electric System | 380V, 50Hz, 3Phae (Customized) |
| 14 | Dimension | 4800 x 1300 x 1680 mm (Excluded Table) |
| 15 | Weight | About 3000 KG |
Product introduction
Pipe bender can be broadly divided into CNC pipe bender, hydraulic pipe bender and so on. Mainly used for electric power construction, public railway construction, boilers, bridges, ships, furniture, decoration and other aspects of pipe laying and repair, with more functions, reasonable structure, simple operation and other advantages. In addition to the bending function, the machine can also be used as a hydraulic cylinder jack, relative to the CNC pipe bending equipment has a cheap, easy to use characteristics of the dominant product position in the domestic pipe bender market
-
![]()
![]()
-
Feature
1. Electric control system: world-renowned controllers are applied. For example, servo drivers, servo motors, positioning modules and CPU produced by Mitsubishi, Yaskawa and Delta are applied and they have strong performance and excellent stability.
2. Ultra-large CPU that can hold the edition of 400 groups of archives is applied. If it is not sufficient, transmission software can be purchased and installed for the computer. The archives can be stored in hard disk to expand the number of edit groups infinitely. (Optional)
3. WINDOWS operating system is installed in industrial computer to be mated with servo system, so it not only has the servo drive feature, but also has the archives management convenience brought by WINDOWS operating system. The archives can also be stored in hard disk or soft disk to expand the number of edit groups infinitely.
4. It can detect the error and fault automatically and display them on screen, so that the operator can eliminate the failures easily.
Packaging & Delivery
- Packaging Details:CNC copper tube bending machine is packaged within wooden case
- Port: Shanghai
- Lead Time :
-
Quantity(Sets) 1 - 2 >2 Est. Time(days) 15 To be negotiated
