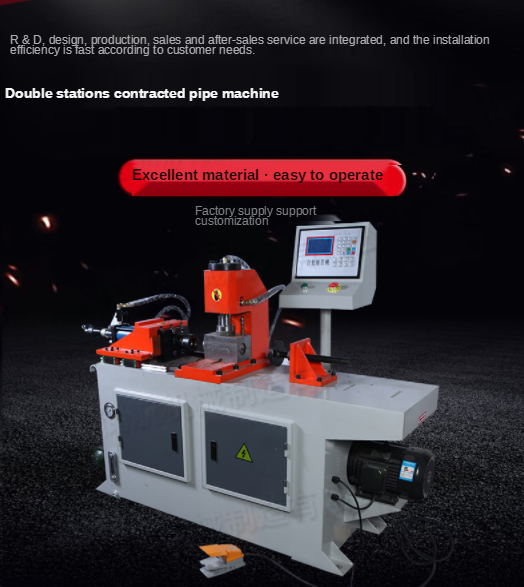

Punching type Tube Shrinking Machine 480V/60Hz
Punching type Tube Shrinking Machine 480V/60Hz
| Max pipe dia | Copper/Aluminum Φ30mm |
| Max work thickness | 2．5mm |
| Work station | 1,3,6 |
| Work efficiency | 3—6sec/cycle |
| Electic control mode | PLC |
| Operation mode | Auto/Manual/Jog |
| Loading mode | manual |
| Driving mode | hydraulic |
| Max clamping force | 4000kg |
| Max clamping travel | 50-1000mm |
| Max stress | 4000kg |
| Tolerance of depth | ＜0.5mm |
| Tolerance of coaxial | ＜0.1mm |
| Power | 3 phase 380V50HZ |

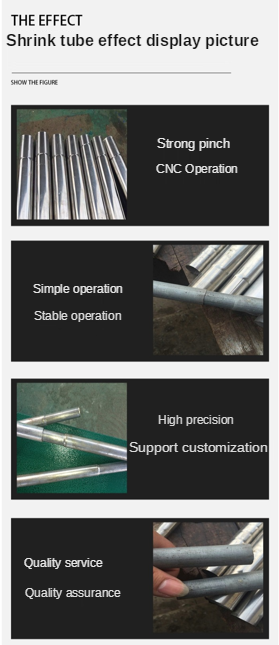

Detailed image
Whole Machine Advantage
A copper and aluminium tube welding line, consisting of a copper tube shrinking machine and a copper and aluminium tube butt welding machine.
It is designed and developed specifically for this production line and is mainly used to reduce copper tubes, but can also be used to reduce tubes made of other materials such as iron and aluminium tubes.
The shrinking machine developed by our company is a compact machine, small in size, light in weight, simple to operate, easy to use and can be easily moved. The reduced inner and outer diameter of the copper tube is precise and the appearance is beautiful.
Depending on the diameter of the tube, the moulds can be changed at will, and one mould can reduce two sizes, further reducing the cost of the moulds.
