2.6mm Coil Aluminum Copper Tube Straightening Machine
automatic coil steel bundy straightening and cutting machine aluminum copper tube
Specification
| Input Voltage | 440V, 2-phase 50Hz |
| Applicable Tube | Bundy tube |
| Working Air Pressure | 0.6-0.8Mpa |
| Tube Coil Specification | 4.76mm |
| Tube Wall Thickness | 0.4~1.5mm |
| Making Length | 50mm~3860mm |
| Output Power | 4KW |
| Control System | Full Automatic |
| Max Material Feeding Speed | 60m/min |
| Precision | ≤1000mm±0.5mm；≤3000mm±1mm； ≤5000mm±1.5mm |
| Machine Dimension | 2000x500x1500(mm) |
| Weight | 1100kgs |
Company information
Changzhou Aidear Refrigeration Technology Co.,ltd.Based on Honesty,Responsible,Technology and continuous Innovation.We are professional refrigeration system solutions provider. Main products are tube&fin heat exchangers,Microchannel heat exchanger,air cooler,condenser and units,raw materials and the components for heat exchangers,automatic machines for heat exchangers,and the complete solutions for customer. Welcome to contact us if you are intrested to our products or any question.

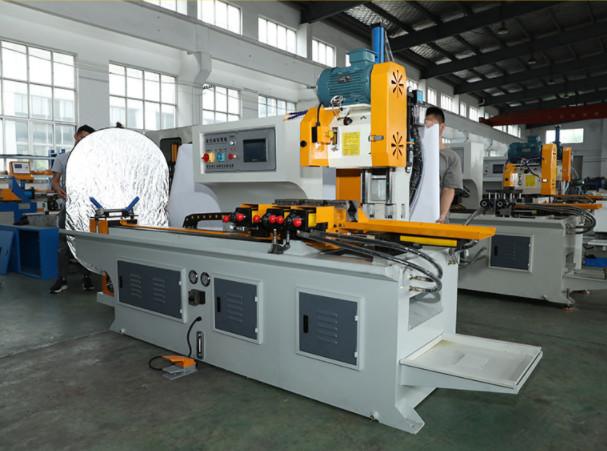

Detailed image
Features
1.Servo CNC, accurate locating, stable feeding.
2.High degree of automation, convenient adjustment.
3.With snapping function, little shrinking of pipe end.
