110KW/H Automatic Bottle Blowing Machine , 12000 BPH High Speed Blow Molding Machine
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
120 Days
Brand:
RIBO
Product Description
12000 BPH Automatic Blow Moulding Machine , High Speed Bottle Blow Moulding Machine
Used for: This series is widely used for making PET bottle for drinking water,carbonated soft drink,medium temperature
filling drink,milk,edible oil,food,daily chemical......ect.
R series linear full electric PET bottle blow molding machine is a high speed automatic PET blower designed and developed
with the most advanced bottle blowing technology at present, the advantages of which can be described as speedy, stable,
simple, general purposed and environmental safe. It is mainly applicable in blow molding PET containers for water,
beverage, juice, etc. The machine yields abundantly with high efficiency. The capacity of each cavity has been increased to
2600~2000bph when the bottle size is equal to or less than 0.55L for water bottle respectively, which can meet the high-end
customer's requirements. Equipped with preform auto loading system, the machine works fully automatically with consistent
performance and high speed, without any operator's interference during the whole processes. Accordingly, chance of
contamination can be reduced manifestly, which assures the quality of products.

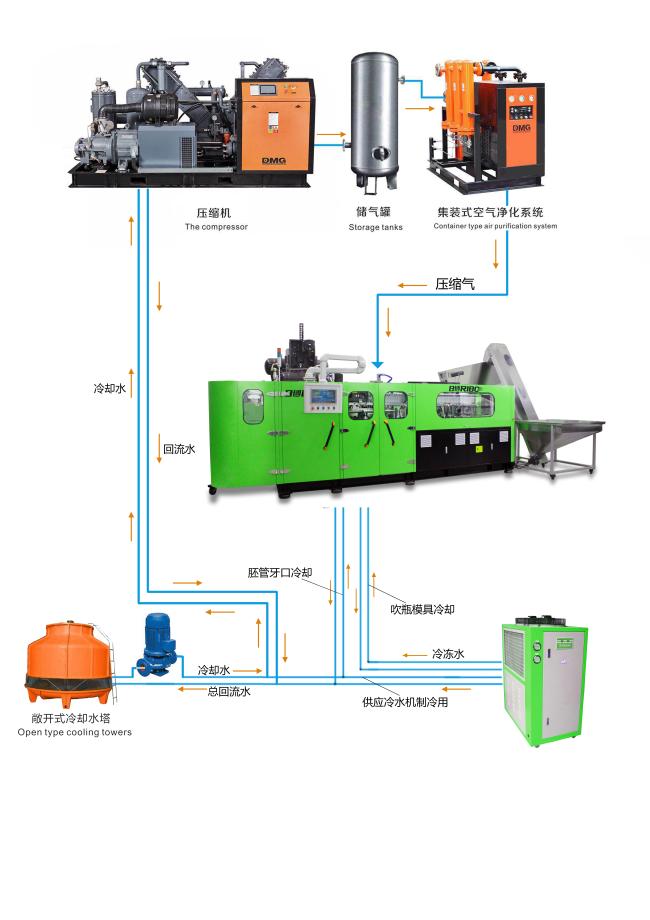

The bottle blowing system layout
Our Services
The warranty period for RIBO machine is one year with a long life maintenance.If the user requires special quality guarantee,other stipulated warranty period may be made after mutual agreement.
1. Reply the email and take action in 24 hours.
2. 100% Quality inspection before the shipment.
3. Provide the trainning for free in Seller's factory before shipment.
4. 1 set of standard spare parts will be sent with the blowing machine for free.
5. Engineer overseas is available.
6. Provide other auxiliary machinery for whole line.
Techical Parameter
| Items | Unit | Model | |
| RiBo-6CR1.5L | |||
| Molding Spec. | Preform Pitch | mm | 105 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 6 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 97 | |
| Max.Containr Height | mm | 325 | |
| ※※Theoretical Output | bph | 12000~9000 | |
| Power Spec. | Rated Power | KW | 123 |
| Power Consumption | KW | 40~56 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 6~8 | |
| Main Machine Spec. | Size | mm | 6843x3312x3250 |
| Weight | Kg | 7500 | |
| *Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
