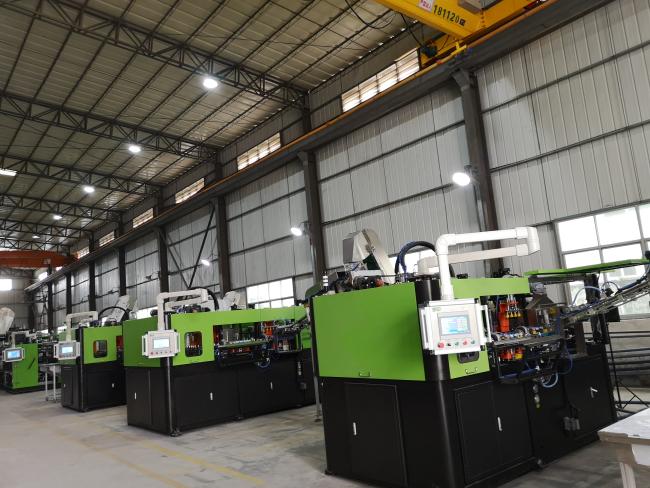

4 Cavity Bottle Blow Moulding Machine Plastic Bottle Manufacturing Equipment
CSD Drinks Bottle , Water Bottle , Edible Oil Bottle Blow Moulding Machine
Performance and Characteristics
1. The servo motor driven stepping system and stretching system have improved the speed, flexibility and accuracy of blowing.
2. The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.
3. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.
4. The man-machine interface is highly automated and easy to operate. The compact machine occupies a smaller area.
5. This series is widely used for making PET bottles for drinking water, carbonated soft drink, medium temperature filling drink,
milk, edible oil, food, pharmacy, daily chemical……etc.
Machine Technical Parameter
| Items | Unit | Model | |
| BLMS-6000 | |||
| Molding Spec. | Cavity Pitch | mm | 76 |
| Preform Heating Pitch | mm | 76 | |
| No.of Cav. | Cav. | 4 | |
| Container Spec. | Max.Container Volume | L | 0.6 |
| Neck Diameter Range | mm | 18-38 | |
| Max.Containr Diameter | mm | 70 | |
| Max.Containr Height | mm | 240 | |
| ※※Theoretical Output | bph | 7000~6000 | |
| Power Spec. | Rated Power | KW | 56 |
| Power Consumption | KW | 30~40 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m³/min | 5~6 | |
| Whole Machine Spec. | Size | mm | 4532*4352*3100 |
| Weight | Kg | 4500 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||
