24000BPH 500ml Stretch Blow Molding Machine Easy Maintenance

500ml Water , Carbonated Soft Drink , Energy Drinks Bottle Stretch Blow Molding Machine

This series is widely used for making PET bottle for drinking water, carbonated soft drink, medium temperature filling drink, milk,

edible oil, food, daily chemical……ect.

Machine Performance and Features

1.The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position

  streamlines the process,before feed-in the preforms into the heating ovens,the preform no need to flip over;After blown the

  bottle,finished bottle no need to flip over,makes the bottle processing more simpler and improved the efficiency.

2. 38mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy

   saving (energy saving can be up to 50%).

3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform. Hinged

   oven holders make it easy for the operators to change infrared tubes and do maintenance.

4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high

   speed and accurate preform handling between the two mechanism.

5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed

    precision blowing valve unit helps to make high capacity.

6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and

   blowing.

7. The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve

    the energy-efficient and environmental safe.

8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and

    rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.

9. Operation on the touch screen is simple and easy.

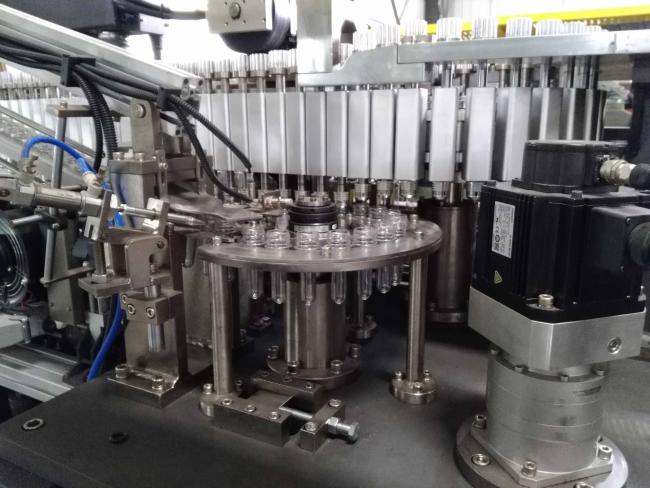

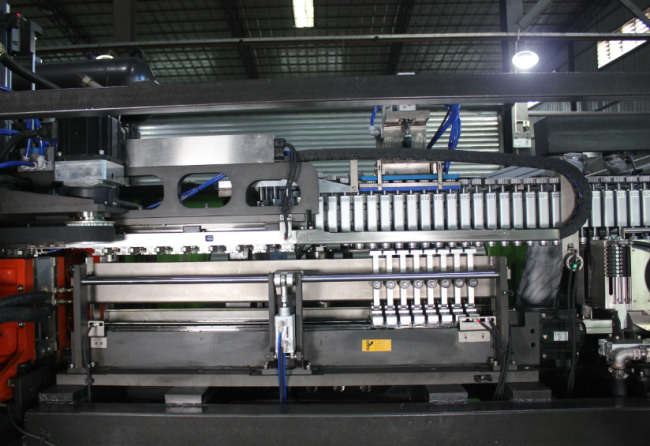

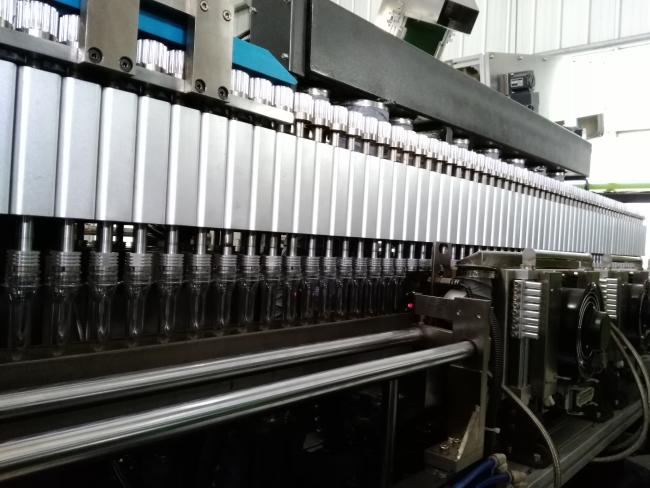

The parts of machine

Machine Technical Parameter

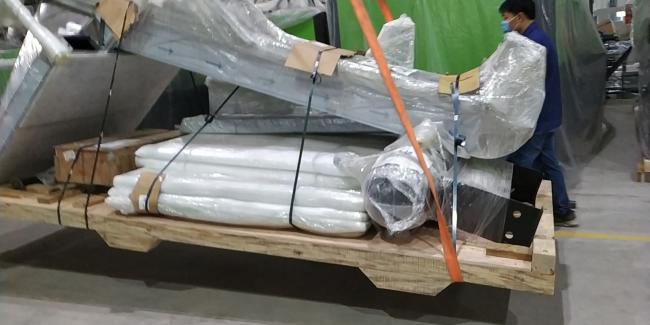

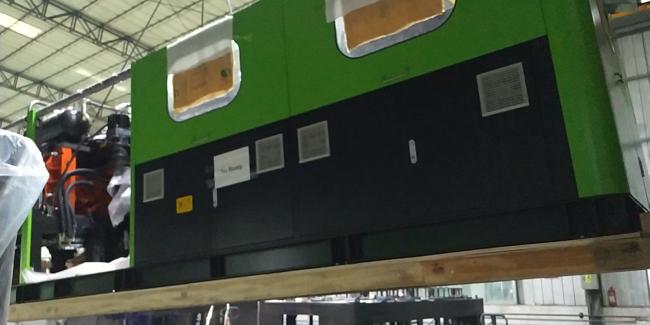

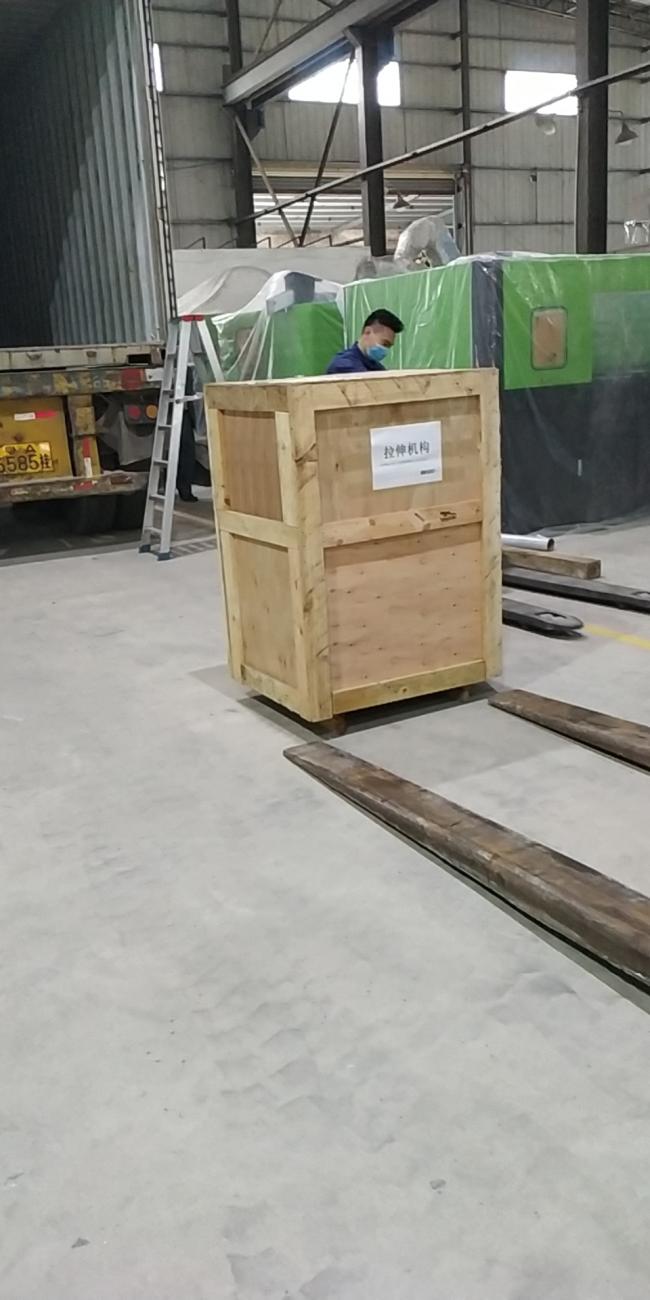

Machine shipment pictures
