Stretch Mineral Water Bottle Making Machine 147KW 16000BPH-12000BPH
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
90~120 days
Brand:
RiBo
Product Description
Bottle Blow Moulding Machine / Stretch Blow Molding Machine for Mineral Water Bottle
The mould movement mechanism

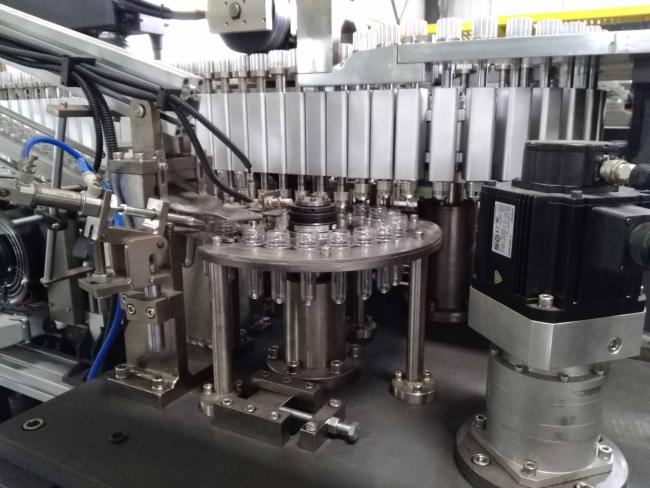

The preform feeding and preform heating holders transfer mechanism
The perform after heated / variable pitch mechanism
Preform transfer system with the grippers and bottle out-feed mechanism
Machine Technical Parameter
| Items | Unit | Model | |
| RiBo-8CR1.5L | |||
| Molding Spec. | Preform Pitch | mm | 98 |
| Preform Heating Pitch | mm | 38 | |
| No.of Cav. | cav. | 8 | |
| Container Spec. | Max.Container Volume | L | 1.5 |
| Neck Diameter Range | mm | 18~30 | |
| Max.Containr Diameter | mm | 92 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 16000~12000 | |
| Power Spec. | Rated Power | KW | 147 |
| Power Consumption | KW | 48~68 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m3/min | 8~10 | |
| Main Machine Spec. | Size | mm | 7690x3270x3000 |
| Weight | Kg | 8500 | |
| Note:*Due to continuous technical development specification would be improved without prior notice. | |||
| *Special designs correspond to customers needs. | |||
