9 Cavities Pet Stretch Blow Moulding Machine 18000BPH~13500BPH Capacity

Water Bottle/ Soft Drinks Bottle / Oil Bottle Stretch Blow Molding Machine

Machine Features

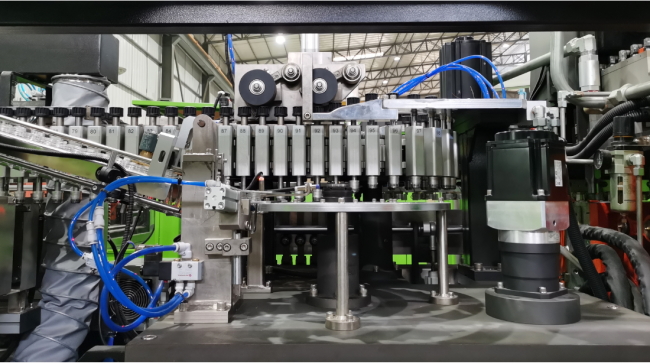

1.The built-in contious preform rotating infeed system is adopted in this kind of energy saving

   machine,effectively reduces the space occupied.38mm pitched, more preforms are uninterruptedly heated within the same

   distance, which improves the efficiency and energy saving (energy saving can be up to 50%).

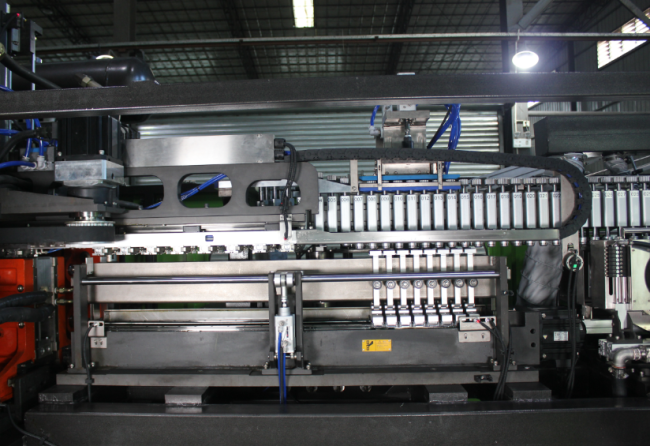

2.The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high

speed and accurate preform handling between the two mechanism.Servo motor directly driven the screw,screw turn a round,the

pitch was changed from heating pitch 38mm to the cavity pitch 105mm,structure is simplied,machine works more speedy,

improved the efficiency.

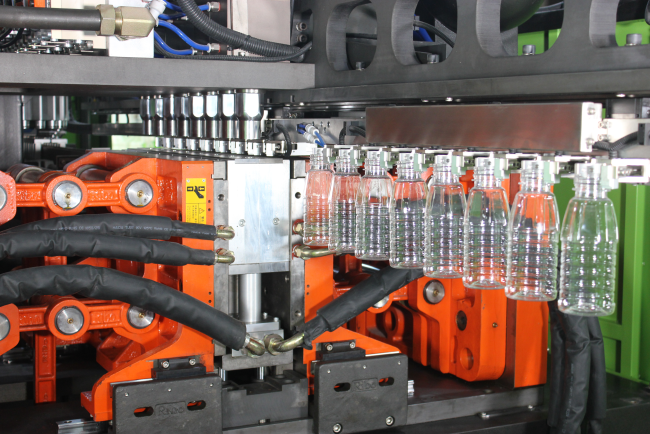

3.The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed

   precision blowing valve unit helps to make high capacity.The finished bottle can be connected to the filling machine via the air

   converyor directly,makes the whole production line to achieve full automation,saving the cost of labour.

4.Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and

   rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.

II. Quality Control

We are always implementing rigid enterprise criteria and manufacturing processes to make quality and advanced products for

customers, conforming to ISO9002 quality system.

• All of our products are designed with CAD.
•
• Major parts are all processed with CNC lathes and machining centers and then fitted and assembled in the
•
• dedicated room to assure the accuracy of fitting and the cleaness of parts.
•
• Most of the components and accessories are of famous brands domestic and world wide.
•
• Each machine must be subjected to 80~100hrs uninterrupted operation test before delivered.

Machine Technical Parameter
