380V 6000BPH Automatic Blow Moulding Machine 4 Cavity Pet Blowing Machine
Automatic Blow Moulding Machine for 1.5 L Water bottle / Juice Bottle / Milk Drink Bottle
Widely Used for

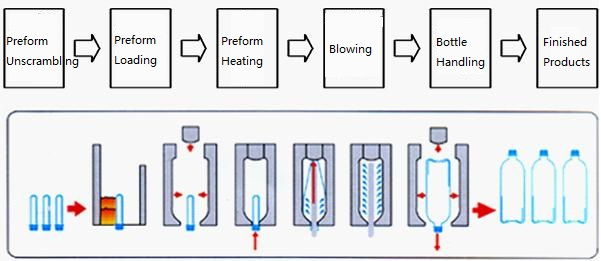

Electric high speed series is a stable two-step blow-up stretch automatic blowing machine.It can be used from 4 cavity to 9
cavity with a speed of 1500 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of
carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic
bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

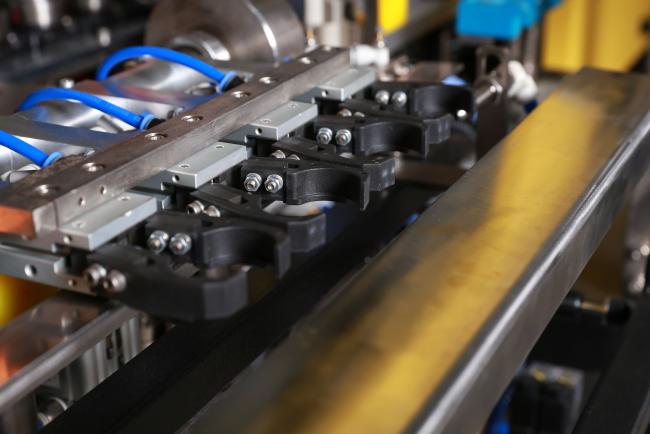

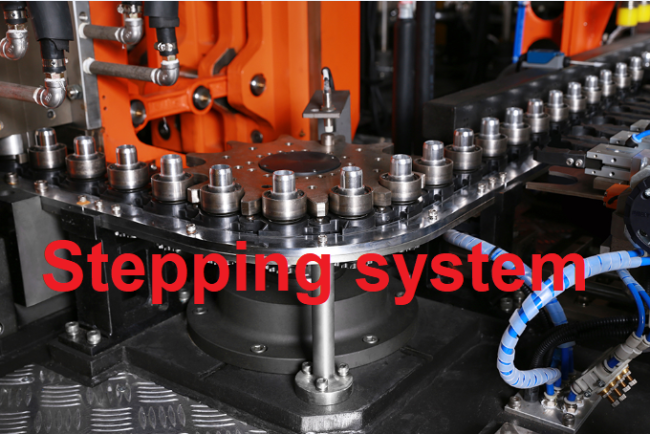

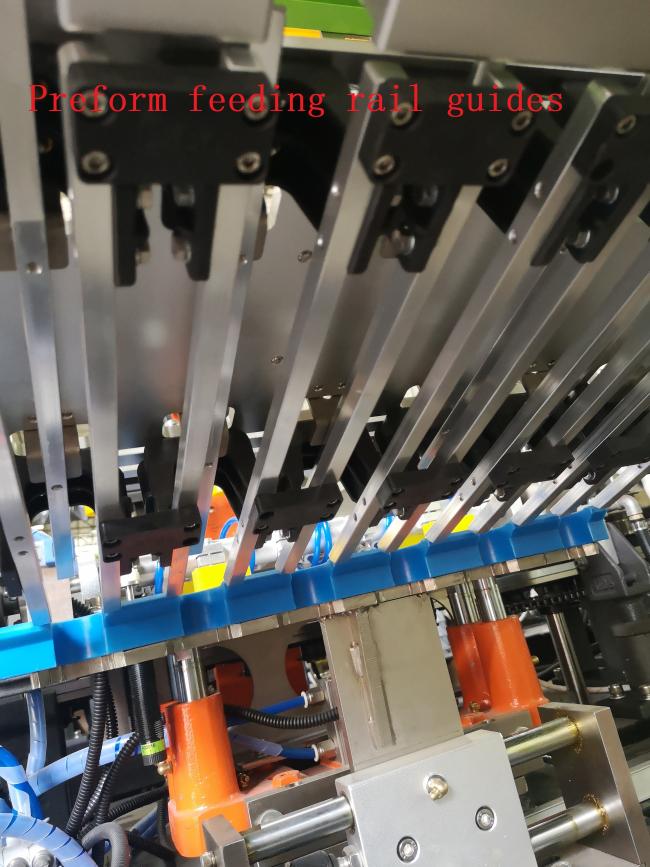

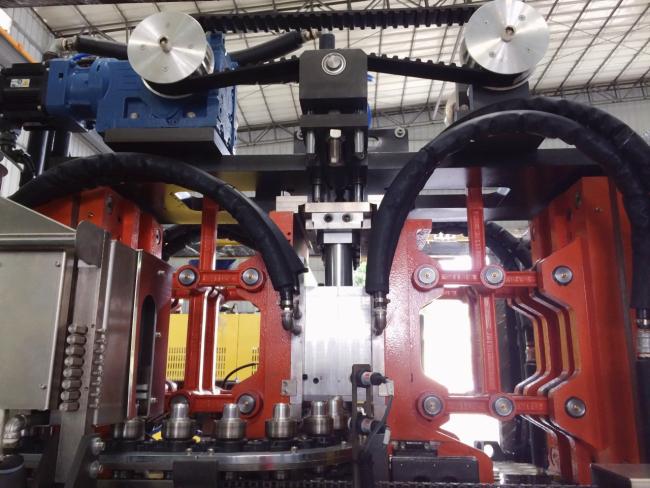

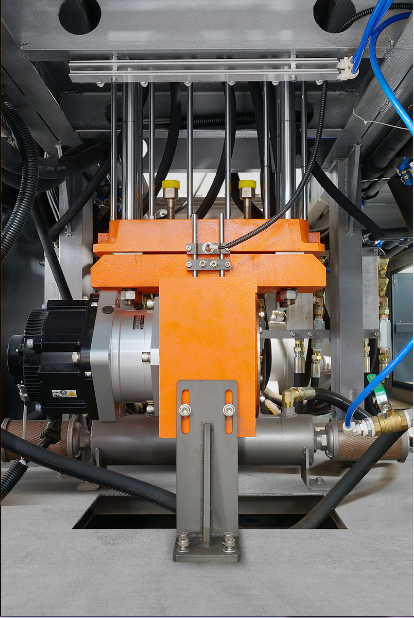

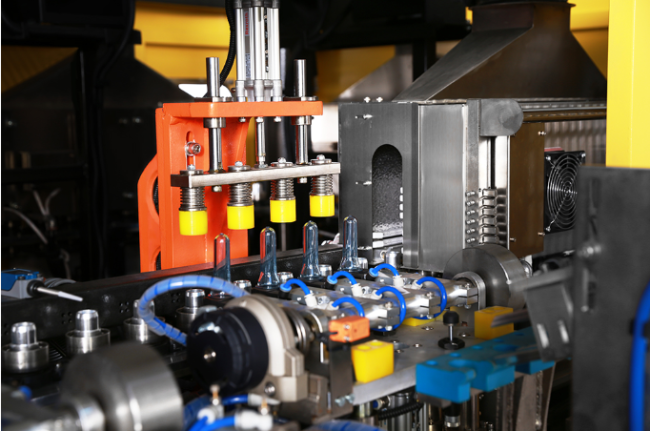

Part of Machine Pictures
Technical Parameter
| Items | Unit | Model | |
| BLMS-6000-2L | |||
| Molding Spec. | Cavity Pitch | mm | 114 |
| Preform Heating Pitch | mm | 114 | |
| No.of Cav. | Cav. | 4 | |
| Container Spec. | Max.Container Volume | L | 2 |
| Neck Diameter Range | mm | 18-38 | |
| Max.Containr Diameter | mm | 108 | |
| Max.Containr Height | mm | 320 | |
| ※※Theoretical Output | bph | 6000~4800 | |
| Power Spec. | Rated Power | KW | 80 |
| Power Consumption | KW | 45~55 | |
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
| Air Consuming | m³/min | 6 | |
| Whole Machine Spec. | Size | mm | 5191*4864*3200 |
| Weight | Kg | 5600 | |
| Note: Due to continuous technical development specification would be improved without prior notice. | |||
| Special designs correspond to customers needs. | |||

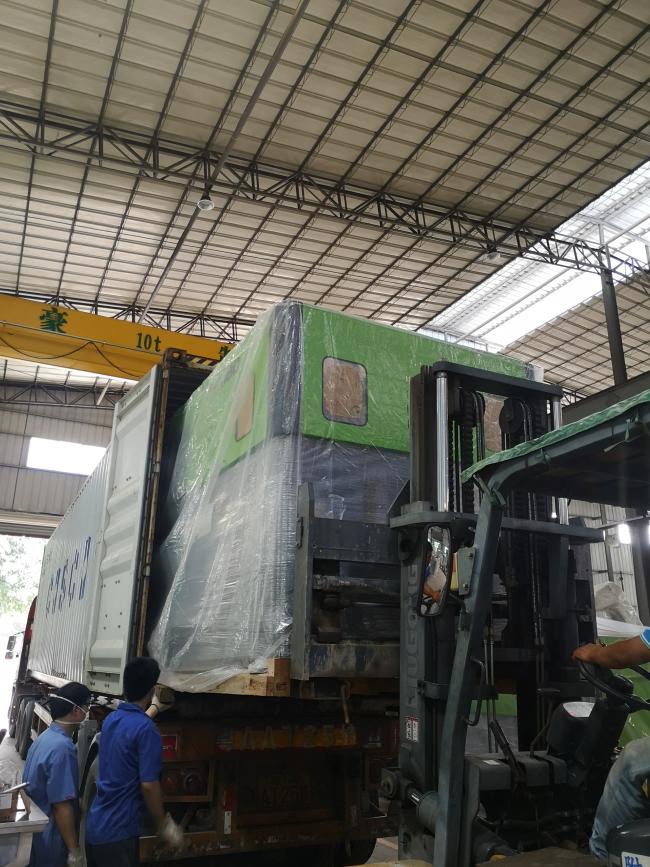

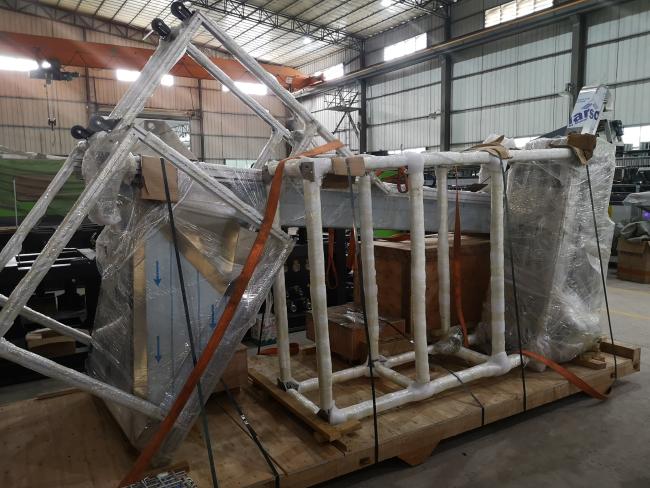

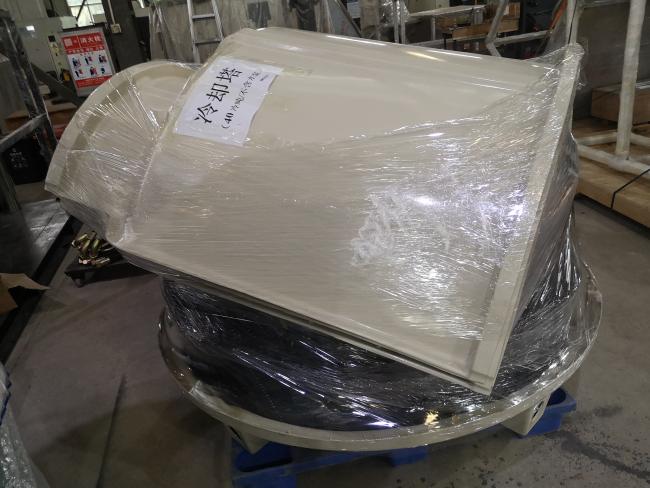

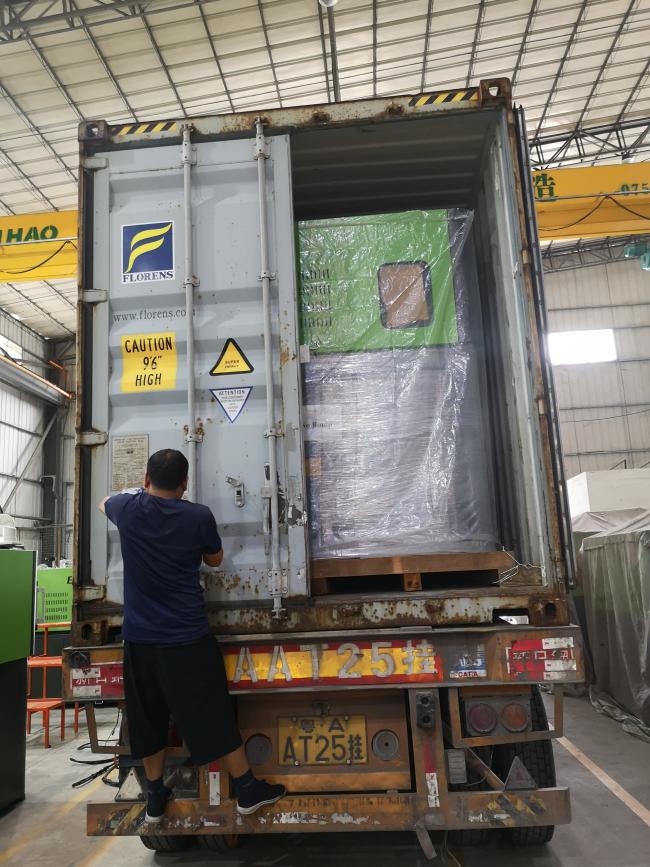

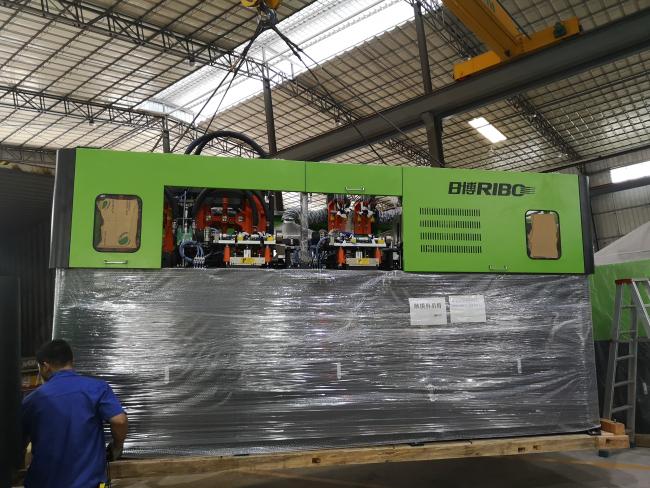

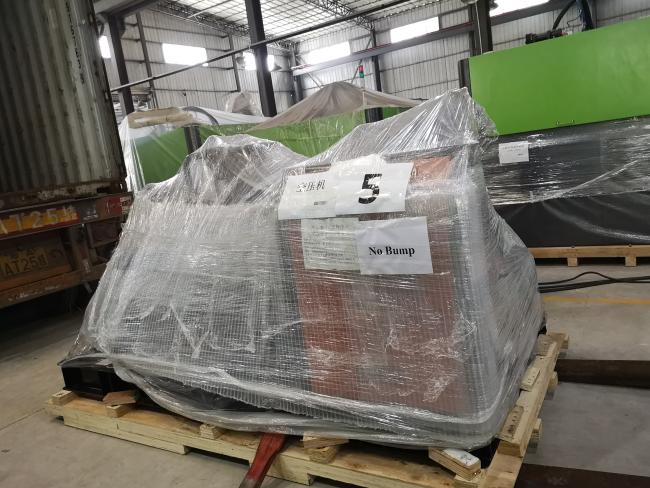

Packing & shipping
