1600BPH 20 Liters PET Blowing Machine

10L Bottle Blowing Machine/ Full Automatic High Speed Blow Moulding Machine / 20 Liters PET blowing Machine

Performance and Characteristics

1.The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position streamlines the process.

2. Continuous heating system, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving.

3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged oven holders make it easy for the operators to change infrared tubes and do maintenance.

4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high speed and accurate preform handling between the two mechanism.

5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision blowing valve unit helps to make high capacity.

6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.

7. High pressure blowing air recovery system saves up to 30% of HPC air.

8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.

9. Operation on the touch screen is simple and easy.

Parts of Machine

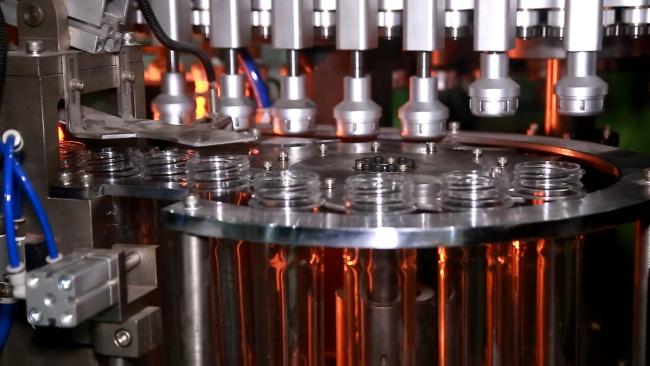

1.Preform feeding part

2. Preform feeding system

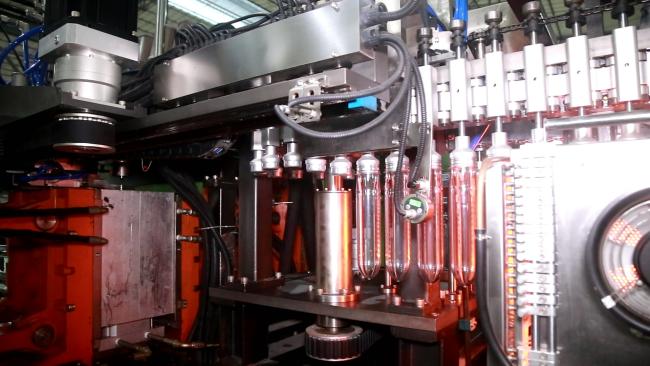

3.Variable pitch system

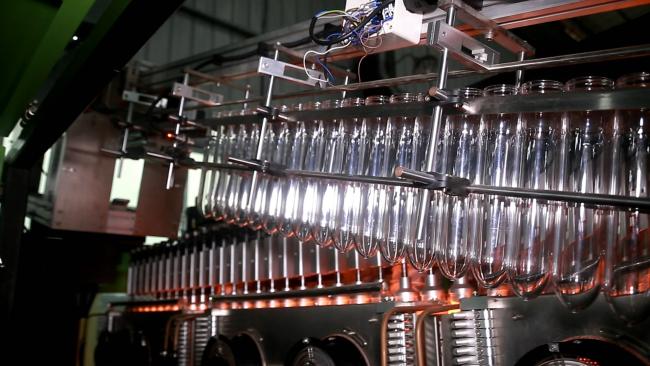

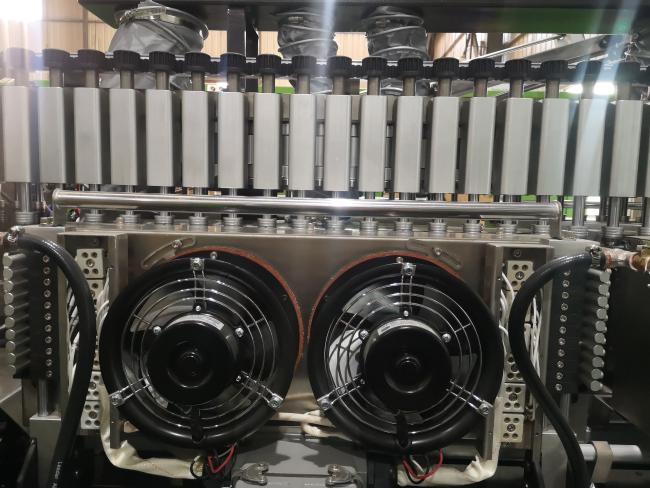

4.Preform Heating system

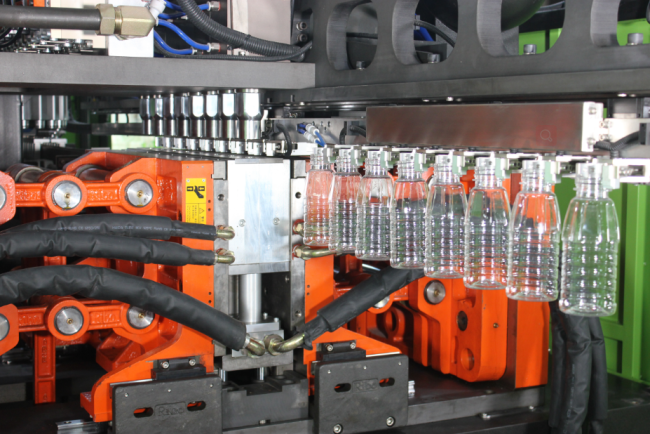

5.Mould clamping system

This series is widely app for making PET bottle for drinking water, edible oil, food, daily chemical……ect.

Technical Parameter
