158KW Plastic Blow Molding Machine , 10000BPH Pet Moulding Machine

PET Bottle Beverage Blowing Hot Filling Plastic Blow Molding Machine for Tea Juice Functional Drink Milk Beverage

This series is applied widely in PET hot filling bottle for juice, tea drinks ,energy drinks and other hot filling drinks.

Mahcine features and advantages

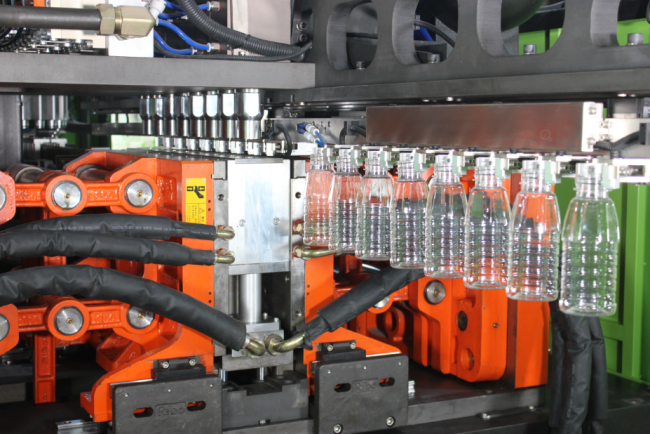

1.The servo motor is adopted to drive the molding mechanism, triggering off a bottom mold linkage as well. The whole        mechanism works speedy, accurately, stably and flexibly. Meanwhile, it is energy efficient and environmental safe.

2. Oil or electricity heated, the mold can ensure bottles meet the hot filling requirement and withstand a temperature up to 92℃ without deformation. The capacity of each cavity can be up to 700~850bph.

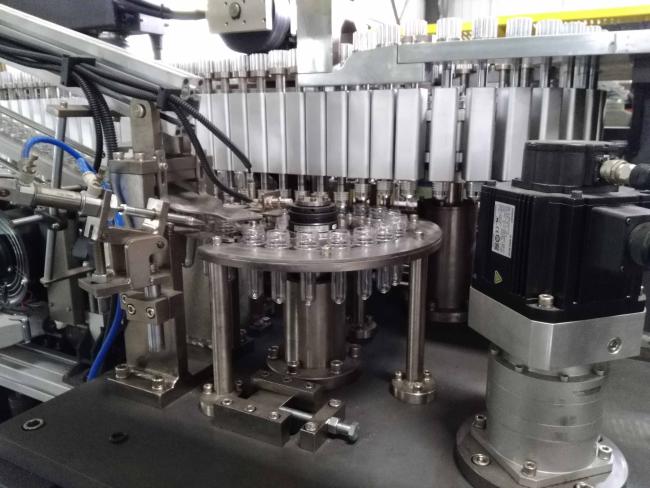

3.The servo motor driven stepping unit and stretching mechanism have improved the speed, flexibility and accuracy of blowing.

4. 38mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving.

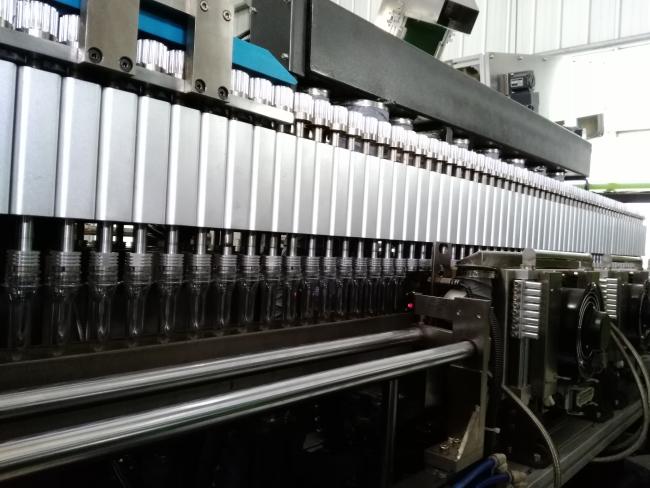

5. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged oven holders make it easy for the operators to change infrared tubes and do maintenance.

6.The high pressure blowing system is also equipped with the gas recycling device (air recycling rate can be up to 30%)which may reduce power consumption as much as 30kw per hour.That means you do not need the low pressure air compressor any more, which will minimize your investment as well as the space for placing the machine. In one word, it is energy-efficient and environmental safe.

7.The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.

8.The man-machine interface is highly automated and easy to operate. The compact machine occupies a smaller area.

Technical Parameter
