3600BPH Beverage Plastic Blow Molding Machine 12 Months Warranty

Automatic Bottle Water/ Juice/ Carbonated Drink Beverage Plastic Blow Molding Machine Production Line

Hot filling bottle blowing machine is widely used for producing the PET bottle for Tea drinks,orange juice,other

flavor drinks and milk drinks,etc......

BLMS series hot filling linear full electric PET bottle blow molding machine is a automatic PET blower designed and developed

with the most advanced bottle blowing technology at present, the advantages of which can be described as speedy, stable,

simple, general purposed and environmental safe. It is mainly applicable in blow molding hot filling PET containers (the bottle

can withstand 90°) for beverage, juice, etc. The machine yields abundantly with high efficiency. The capacity of each cavity has

been increased to 700bph when the bottle size is equal to or less than 0.55L respectively, which can meet the high-end

customer's requirements. Equipped with preform auto loading system, the machine works fully automatically with consistent

performance and high speed, without any operator's interference during the whole processes. Accordingly, chance of

contamination can be reduced manifestly, which assures the quality of products.

Performance and characteristics

1.The servo motor is adopted to drive the molding mechanism, triggering off a bottom mold linkage as well. The whole

mechanism works speedy, accurately, stably and flexibly. Meanwhile, it is energy efficient and environmental safe.

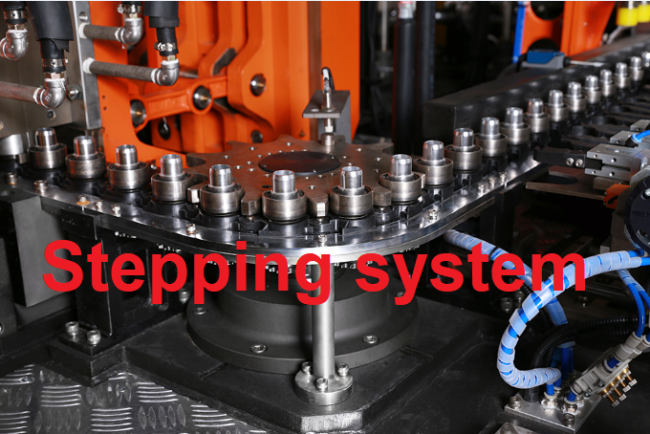

2.The servo motor driven stepping unit and stretching mechanism have improved the speed, flexibility and accuracy of blowing.

3.Oil or electricity heated, the mold can ensure bottles meet the hot filling requirement and withstand a temperature up to 92℃

without deformation. The capacity of each cavity can be up to 700bph.

4.The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform. Hinged

oven holders make it easy for the operators to change infrared tubes and do maintenance.

5.The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.

6.The man-machine interface is highly automated and easy to operate. The compact machine occupies a smaller area.

This series is applied widely in PET hot filling bottle for juice, tea drinks ,energy drinks and other hot filling drinks.

Technical Parameter
