1.5L Automatic Blow Molding Equipment 15000bph~9000bph Easy Operate

Technician Parameter PET bottle stretch blow moulding machine

Bottle blow moulding machine performance and characteristics

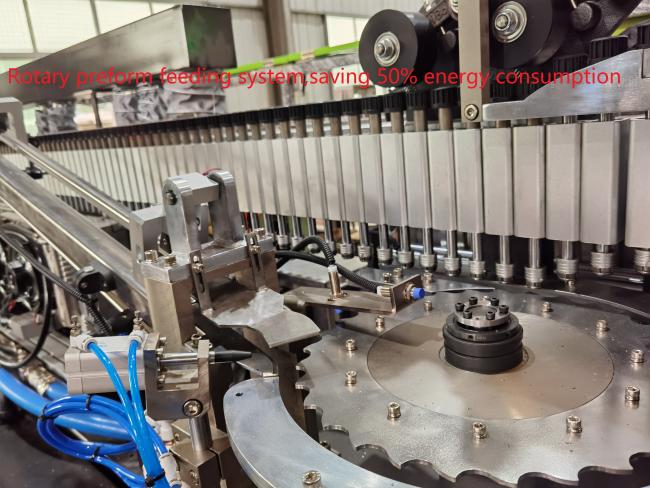

1.The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position streamlines the process.

2. 38mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy saving (energy saving can be up to 50%).

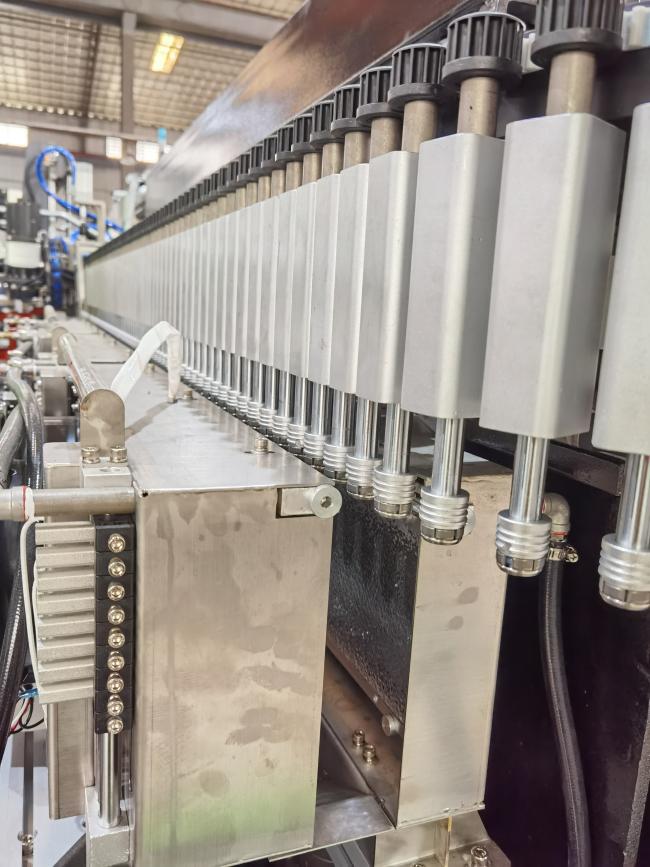

3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged oven holders make it easy for the operators to change infrared tubes and do maintenance.

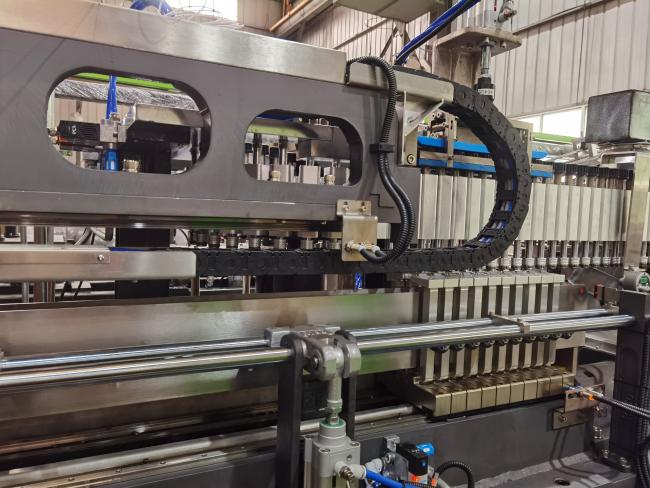

4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high speed and accurate preform handling between the two mechanism.

5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed precision blowing valve unit helps to make high capacity.

6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.

7. The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve the energy-efficient and environmental safe.

8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.

9. Operation on the touch screen is simple and easy.

10.This series is widely used for making PET bottle for drinking water, carbonated soft drink, medium temperature filling drink, milk, edible oil, food, daily chemical……ect.
