Super large tank AISI316 stainless steel made heat exchanger ultrasonic cleaning machine

1. Model:JTS-1936
2. Capacity: 7280L
3. Internak tank inner dimension:3.5m*1.6m*1.3m (L*W*Deep)
4. Transducer:936pcs (26 pcs ultrasonic transducer box side mounted)
5. External sweep generator: 26pcs(with generator shelf)
6. Ultrasonic frequency: 28KHZ (40khz optional available)
7. Ultrasonic power: 46.8KW
8. Heating power : 36KW
9. Timer:1-99hours adjustable
10.Heater:20°C to 95°C adjustable
11.Material: AISI 304 stainless steel housing,AISI 316L
with bottom support frame
12.Load weight:1500KGS
13.Power supply :machine AC380V,50HZ,3Phase
generator power supply AC220V,50HZ,1phase
14.1 year warranty and technical support for life
15.Stainless steel wall 3mm thinckness shell ,durabiltiy and anti-rust;
16.With suuport feet, castor, Inlet valve and drainage valve and cover lid and support frame.
17.Overall size:3.9x2x1.65m

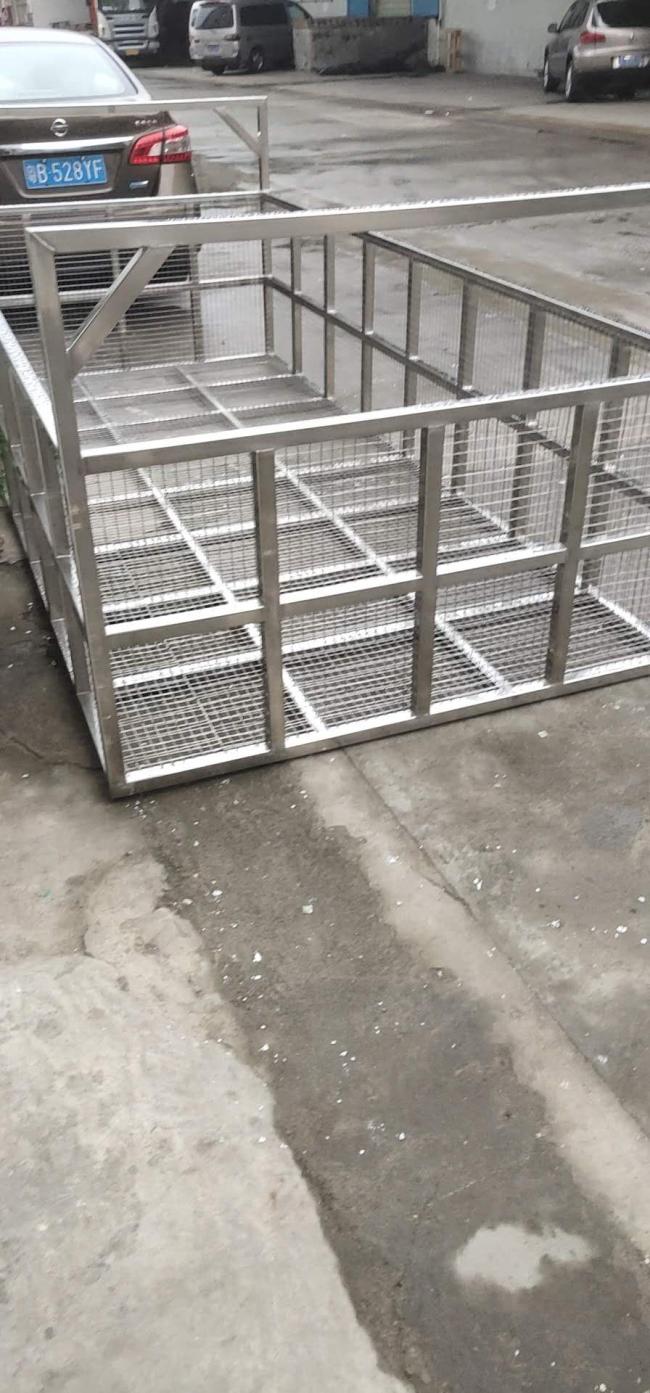

Basket
