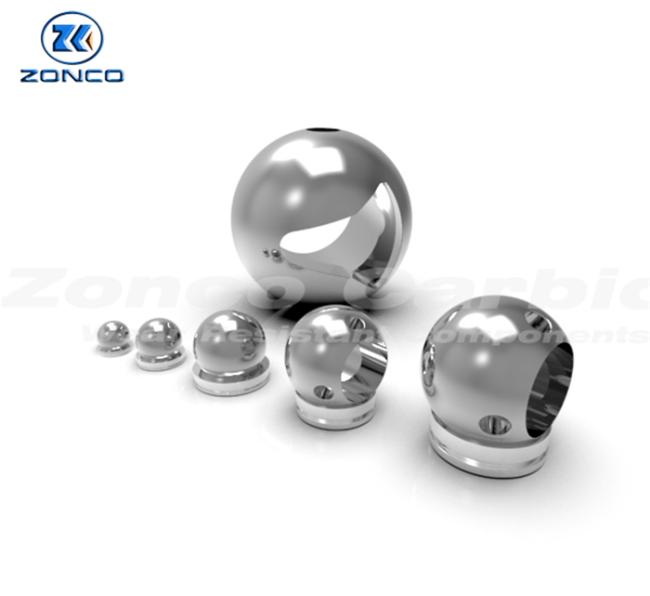

Precision Tungsten Carbide Valve Seats / Ball Valve Seat Good Temperature Resistance
Precision Tungsten Carbide Seat for Valve Ball
Quick Detail
| Application: valve ball, screw ball | Model Type:Various | Trade term: CIF,EXW,FOB |
| Grade: YG6, YG6X, YG8 | Dimensions: 0.5mm-80mm | Surface: Ground or Blanks |
| Trial order: Acceptable | OEM Service: Acceptable | Delivery Time: Shipped in 3-15 days after payment |
Product Description
Specification:
1. High strength, high wear resistance, high precision, good temperature resistance and good corrosion resistance.
2. Mainly used for the sealing of valves of oil pumps in petroleum industry`s containing wells, viscous oil wells, sea oil wells and high pressure sulfur resistant oil wells, etc.
3. Balls and seats are used with compatible cemented carbide valve seats.
4. The finished surface, tolerance standard have reached the standards of the machine industry: G5, G10, G16, G40 and G100 of JB/T 9145-1999.
5. Precision machined cemented carbide balls of other grades and specifications are also available based on customers’ demands.
6. Compatible high precision valve seats can also be made.

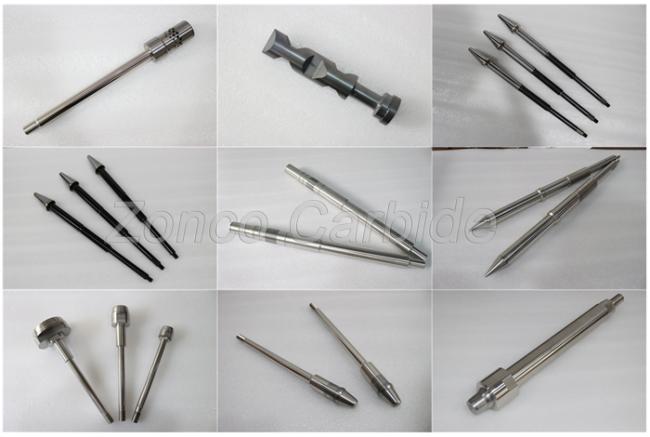

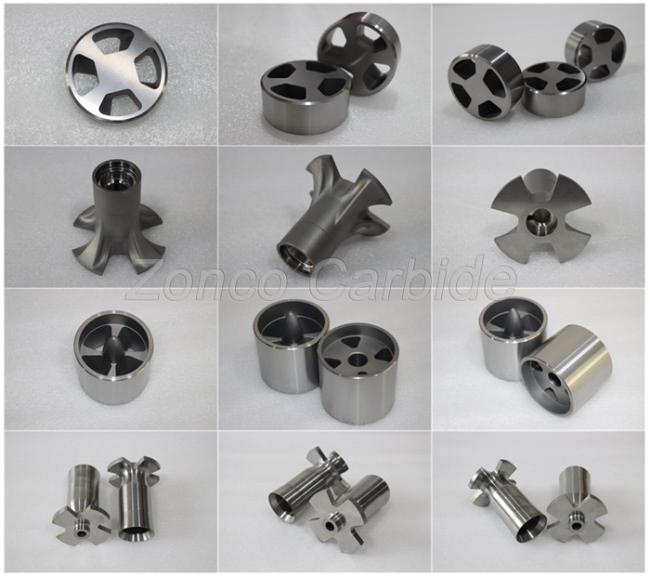

Detailed Image
| Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application | |||||||
| Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | |||||
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure. |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance. |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds, general tools, etc. |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle products |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
| ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
