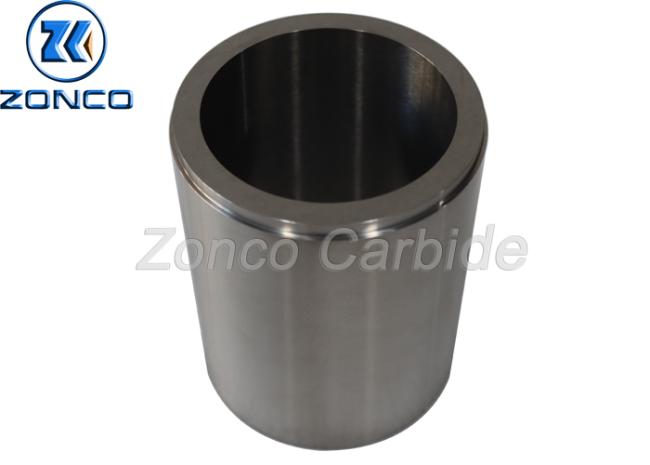

Oil And Gas Industry Tungsten Carbide Bush K10 K20 K30 Grade ISO9001 Certificated
Durable Tungsten Carbide Material Carbide Bushings
Quick Details
| Application: Oil and gas industry | Model Type:Various | Trade Term: CIF,EXW,FOB |
| Grade: K10, K20, K30, C2, C6, YF06,YL10.2,G5 | Virgin Material:100% | Surface: Ground or Blanks |
| Trial Order: Acceptable | OEM Service: Acceptable | Delivery Time: Shipped in 20 days after payment |
Product Description
Tungsten carbide bush has been playing an important role in the field of long working parts materials.With excellent concentricity, verticality, high wear resistance, high tenacity, making the bush a superior long working life.
1. Sleeve (OD/10~300, ID/3~260, H/8~150)
2. Used for water pump, oil pump and other pumps, especially used for high pressure or corrosion resistance pumps
3. Good wear resistance
4. Keeping operation precision, prolong the lifetime of rolling axletree.
5. Various types and grades, supplied as required
Recommended grade and properties of tungsten carbide bushing:
| Grade | Cobalt (%) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| ZK6 | 6 | 14.8 | ≥90.0 | ≥1980 |
| ZK8 | 8 | 14.7 | ≥89.5 | ≥1680 |
| ZKN8 | 12 | 14.8 | ≥89 | ≥1680 |
| Type | Dimensions(mm) | ||
| Tungsten Carbide Bushing | D | d | H |
| 10-450 | 3-360 | 8-260 | |
We can not only supply carbide sleeves and bushings with size listed above, but also provide tailor made service according to the drawings of our customers.
Our Services
* We will inspect and test all products after finishing production and before delivery.
* We can provide dimension & inspection certificate as customers' requirements.
* We also can provide customers' samples dimensional verification.
Product show
| Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application | |||||||
| Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | |||||
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure. |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance. |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds, general tools, etc. |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle products |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
| ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
