250ml 1000ml Tungsten Carbide Ball Mill Grinding Jar
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
30-35 working days
Brand:
ZONCO
Product Description
Factory Supply Tungsten Carbide Ball Mill Jar For Industry Powder Grinding
Tungsten carbide grinding jar is the highest density grinding tools for milling and crushing applications. High hardness and strengthness can meet the application of crushing and refining for most majority of metal powder,especially those hard and super hard metal powder.
| Jar volume | 25mL-1000ml |
| Max loading capacity | 2/3 capacity of the grinding jar |
| Density | 15.5g/cm³ |
| Main chemical compositions | WC(94%,92%,85%),cobalt(6%,8%,15%) |
| Surface treatment | blank or finish |
| Abrasion resistance | good |

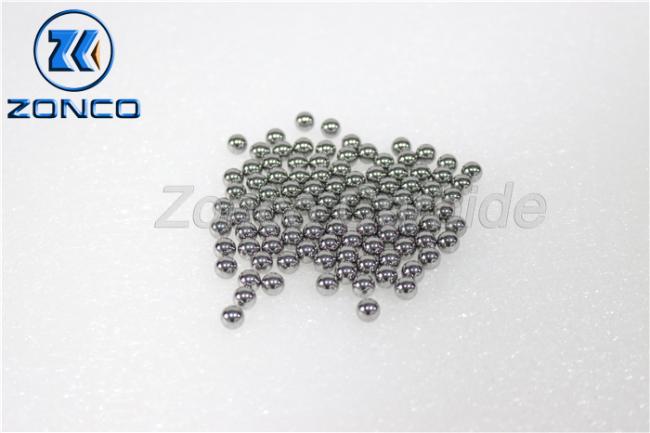

| Grinding balls | mixed tungsten carbide ball(should be ordered separately) |
| Hardness | 92.1HRA |
Grinding jars & balls configurations
| Jar Volume | 50ml | 100ml | 250ml | 500ml | 1000ml |
| Ø6mm | 50 pcs | 100 pcs | 280 pcs | 500 pcs | 1000 pcs |
| Ø10mm | 8 pcs | 16 pcs | 40 pcs | 100 pcs | 200 pcs |
| Ø20mm | 2 pcs | 3 pcs |
Common volume size
| Volume | H (mm) | OD (mm) | ID (mm) |
| 50 ml | 70 | 48 | 36 |
| 100 ml | 63 | 63 | 51 |
| 250 ml | 79 | 86 | 74 |
| 500 ml | 106 | 105 | 90 |
| 1000 ml | 135 | 130 | 115 |

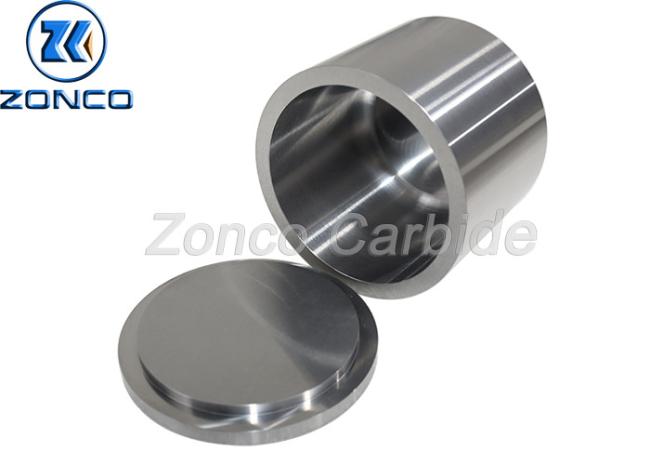

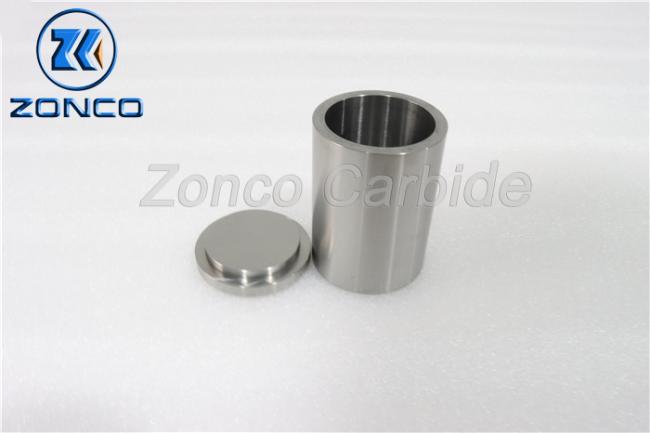

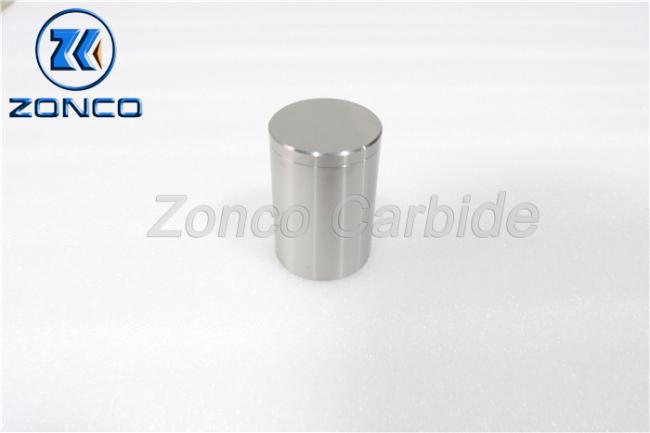

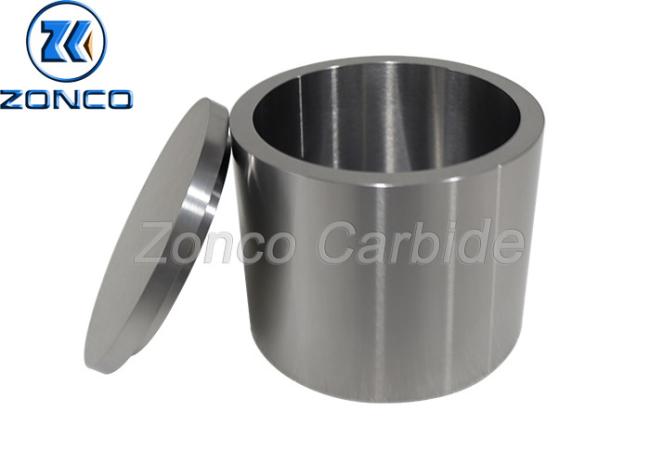

Products show
Common tungsten carbide grades
| Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application | |||||||
| Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | |||||
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure. |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance. |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds, general tools, etc. |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle products |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
| ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
