China Customised Color Insulated Wire Anti Corrosion FEP Insulation for sale

Customised Color Insulated Wire Anti Corrosion FEP Insulation

Price Negotiable

Price: 0.1 usd per meter

MOQ: 6100 meters

Delivery Time: 5-8days

Brand: YANGDA

Product Description

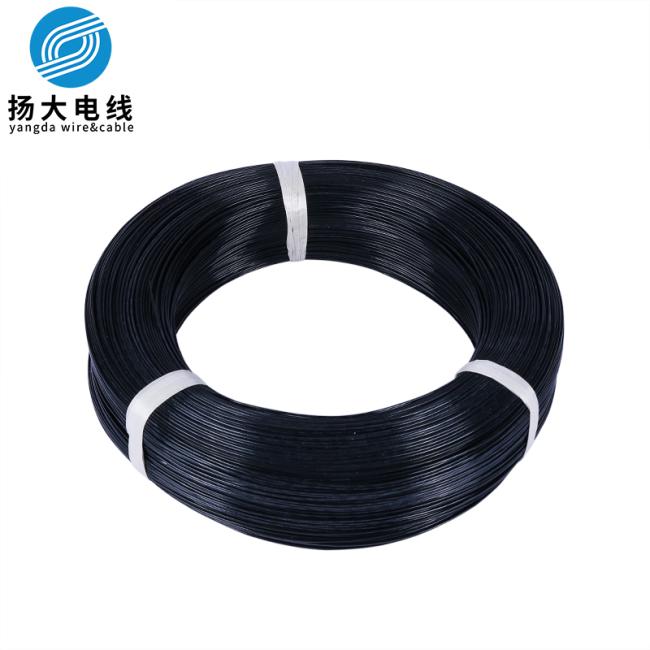

ul1332 24AWG 7/0.20mm Tinned Plated Copper FEP High Temperature Hook-up Wire


Product Type: ul1332

Properties:

1. Rated Voltage:300V
2. Rated Temperature: -60°C~200°C
3. Conductor: Tinned Plated Copper
4. Insulation: FEP
5. Color: Customized

It has good capacities of anti-corrosion, anti-oil, anti-acid, anti-alkali, anti-oxidation, anti-water, anti-aging. It is widely used as lead wire in electronic and heating element industry and as wiring parts in appliance industry.

Nominal voltage: 300V

Temperature range: 200C

Standard: UL 758

Insulation: FEP

Conductor: tinned copper wire

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
30	1/0.26	0.26	0.305	0.87	361	610/2000
30	7/0.10	0.30	0.305	0.91	361	610/2000
28	1/0.32	0.32	0.305	0.93	227	610/2000
28	7/0.12	0.36	0.305	1.38	227	610/2000
26	7/0.16	0.48	0.305	1.09	143	610/2000
26	19/0.10	0.48	0.305	1.11	143	610/2000
24	1/0.50	0.50	0.305	1.11	89.3	610/2000
	7/0.20	0.60		1.21
	19/0.12	0.60		1.21
22	1/0.65	0.65	0.33	1.31	56.4	305/1000
	7/0.254	0.76		1.42
	19/0.15	0.75		1.41
20	1/0.81	0.81	0.33	1.47	35.2	305/1000
	7/0.31	0.93		1.59
	19/0.19	0.93		1.59
18	1/1.02	1.02	0.33	1.68	22.2	305/1000
	7/0.39	1.17		1.83
	19/0.235	1.17		1.83
16	1/1.30	1.30	0.33	1.96	14	305/1000
	7/0.49	1.47		2.13
	19/0.30	1.50		2.16
14	19/0.37	1.85	0.33	2.51	8.78	305/1000
12	19/0.47	2.35	0.33	3.01	5.53	305/1000
10	19/0.61	3.05	0.33	3.71	3.476	305/1000
