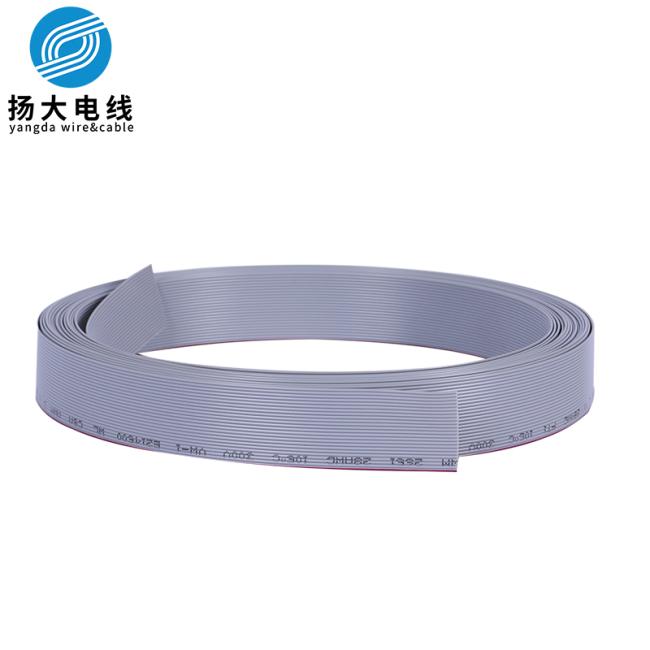

26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
Price:
0.02usd per meter
MOQ:
3050m
Delivery Time:
5-8days
Brand:
YANGDA
Product Description
UL approved PVC insulation ul2651 28awg 1.27mm pitch 26 Pin Flexibble Flat Ribbon Cable
Product Description:
1.Tinned,annealed,stranded or solid copper conductor.
2.Color -coded PVC insulation.
3.Rated temperature:105°C .Rated voltage:300volts
4.Uniform thickness of wire to ensure easy stripping and cutting.
5.Passes UL VW-1&CSA FT1 vertical flamt test.
6.Executed standard:UL758.UL1581.CSA22.2.
Applications:
For use in internal wiring of appliances,Computers.
| UL Style & CSA Type | Cores | Conductor | Pitch | Insulation Thickness |
Overall Dianeter | Conductor Resistance at 20℃ |
|
| AWG | mm | mm | mm | mm | Ω/KM | ||
| UL2651 (Stranded) |
9 | 28 | 7/0.12 | 1.27 | 0.23 | 0.9×11.43 | 239.00 |
| 10 | 0.9×20.32 | ||||||
| 14 | 0.9×12.70 | ||||||
| 15 | 0.9×17.78 | ||||||
| 16 | 0.9×19.05 | ||||||
| 20 | 0.9×25.40 | ||||||
| 25 | 0.9×31.75 | ||||||
| 26 | 0.9×33.02 | ||||||
| 30 | 0.9×38.10 | ||||||
| 34 | 0.9×43.18 | ||||||
| 36 | 0.9×45.72 | ||||||
| 40 | 0.9×50.80 | ||||||
| 50 | 0.9×63.50 | ||||||
| 60 | 0.9×76.20 | ||||||
