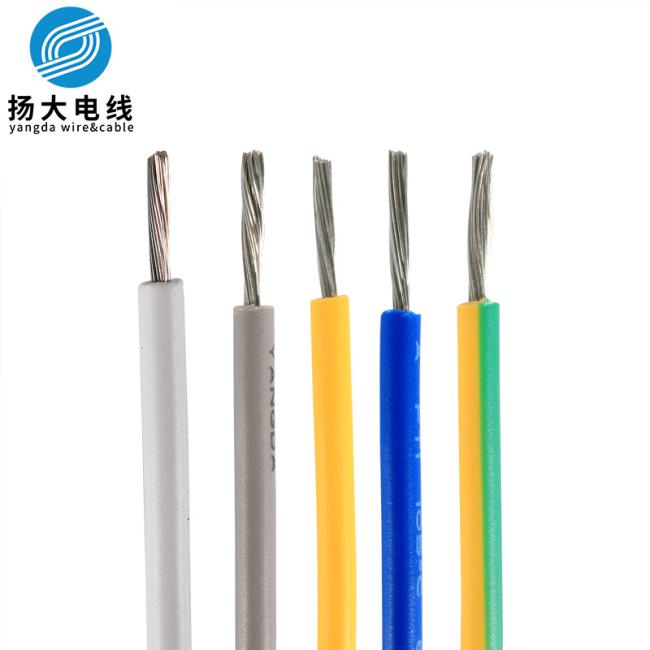

Ul Factory Awm Ul1571 Pvc Insulated And Tinned Copper Stranded low voltage Wire Cable
Ul Factory Awm Ul1571 Pvc Insulated And Tinned Copper Stranded Low Voltage Wire Cable
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European UnionRoHS environmental protection instruction.
1.Rated temperature:80ºC
2.Rated voltage:300v
3.according to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor 30-16AWG
5.SR-PVC insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.uniform insulation thickness of wire to ensure easy stripping and cutting
8.Environmental testing pass ROHS
Product Parameters
| UL Style | conductor | Overall Diameter(mm) | Insulation Thickness(mm) | wire O.D(mm) | Max Cond.resistance(Ω/kft) | Standard length | ||
| (AWG) | (no/mm) | FT/ROLL | METER/ROLL | |||||
| UL1061 | 30 | 7/0.10 | 0.3 | 0.23 | 0.8 | 116 | 2000 | 610 |
| 28 | 7/0.127 | 0.38 | 0.9 | 72.8 | ||||
| 26 | 7/0.16 | 0.48 | 1 | 45.8 | ||||
| 24 | 11/0.16 | 0.61 | 1.1 | 28.7 | ||||
| 22 | 17/0.16 | 0.76 | 1.3 | 18.1 | ||||
| 20 | 21/0.178 | 0.94 | 1.5 | 11.2 | ||||
| 18 | 16/0.254 | 1.16 | 1.8 | 7.06 | ||||
| 16 | 26/0.254 | 1.49 | 2.1 | 4.45 |
||||
Rated temperature:80℃
Rated voltage:30V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 32~16AWG
PVC insulation, comply with ROHS, REACH environmental standard
Passes UL VW-1, CSA FTI and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:
For general purpose internal wiring of appliance
| UL.TYPE | Conductor | Insulation |
Max.cond. Resistance |
(Dielectric Strength) | |||
|
1571 |
AWG |
Construction (No./mm) |
OD (mm) |
Thickness (mm) |
OD (mm) |
(Ω/Km,20℃,Dc)
|
(Vac,1min)
|
| 32 | 7/0.08 | 0.24 | 0.18 | 0.60 | 596 | 2000 | |
| 30 | 7/0.10 | 0.30 | 0.20 | 0.70 | 381 | 2000 | |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 239 | 2000 | |
| 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | 150 | 2000 | |
| 24 | 11/0.16 | 0.61 | 0.25 | 1.10 | 94.2 | 2000 | |
| 22 | 17/0.16 | 0.76 | 0.27 | 1.30 | 59.4 | 2000 | |
| 20 | 26/0.16 | 0.94 | 0.28 | 1.50 | 36.7 | 2000 | |
| 18 | 41/0.16 | 1.20 | 0.30 | 1.80 | 23.2 | 2000 | |
| 16 | 26/0.254 | 1.49 | 0.31 | 2.10 | 14.6 |
2000 |
|
