Low Voltage ETFE Insulated Wire Uniform Insulation Thickness

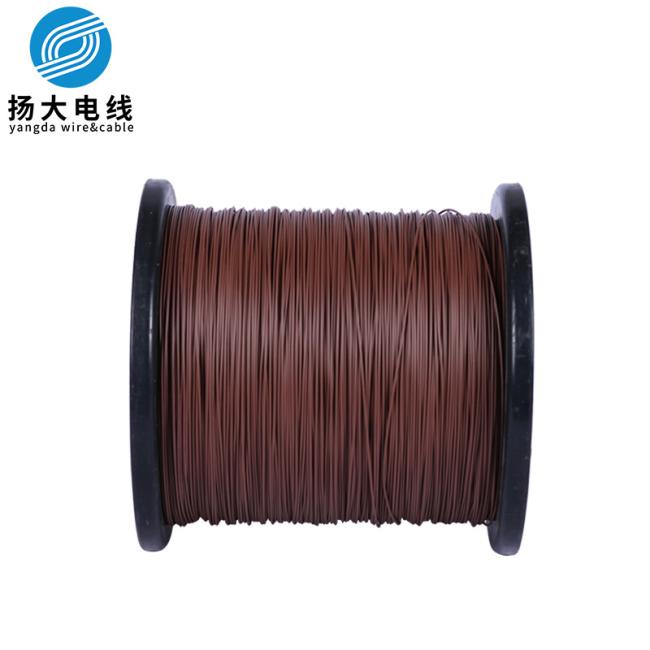

Low Voltage UL1867 Tinned Copper Conductor ETFE insulation Ultra Thin Electronic Hook-up Wire
Rated temperature:125℃
Rated voltage:30V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded, tinned or bare copper conductor 32~10AWG
FEP insulation, comply with ROHS, REACH environmental standard
Passes UL VW-1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:
For insulated wires in internal or external interconnection cables for use in Class 2 circuits of electronic equipment
-
Rated temperature:80°CRated voltage:30V
- Reference standard:UL758,UL1581,CSA C22.2No.210.2
- Solid or stranded , 50AWG min copper conductor
- ETFE insulation
- Passes UL VW-1 and CSA FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
- For internal wiring of electronic equipment in Class 2 circuits only
- Supply Ability:
- 150,000 Kilometer/Kilometers per Month
- Packaging Details
- According to different OD, there will be different standarded packing length as 610m/Roll, 305m/Roll, 250m/Roll, 200m/Roll, and 100m/Roll. And we also can support "Bobbin" packing way if customer requests. For exportation purpose, wire will be put into big carton box and palletized.
Wooden pallets is designed according to the international standard container sizes. Now we have 2 kinds as 0.98m*0.98m and 1.10m*1.10m
| UL Type | Conductor | Insulation | Max.cond Resistance | Dielectric Strength | ||
| 10064 |
Specification (AWG) |
Construction |
Thickness (mm) |
OD (mm) |
(Ω/Km,20℃,Dc)
|
(Vac,1min)
|
| 36 | 7/0.05 | 0.06 | 0.27 | 1500 | 500 | |
| 34 | 7/0.064 | 0.075 | 0.34 | 900 | 500 | |
| 32 | 7/0.08 | 0.08 | 0.40 | 588.85 | 500 | |
| 30 | 7/0.10 | 0.10 | 0.50 | 381 | 1000 | |
| 28 | 7/0.127 | 0.11 | 0.60 | 239 | 1000 | |
| 26 | 7/0.16 | 0.11 | 0.70 | 150 | 1000 | |
| 24 | 7/0.20 | 0.12 | 0.85 | 94.2 | 1000 | |
| 22 | 7/0.254 | 0.16 | 1.08 | 59.4 | 1000 | |
| 20 | 7/0.32 | 0.15 | 1.26 | 36.7 | 1000 | |
| 18 | 7/0.40 | 1.20 | 1.60 | 23.2 | 1000 | |
| 16 | 1/1.29 | 0.20 | 1.69 | 14.0 |
1000 |
|
|
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE(Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
|
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
| 42 | 7/0.0254 | 0.076 | 0.05 | 0.18 | - | 500 |
| 40 | 7/0.032 | 0.096 | 0.05 | 0.20 | - | |
| 38 | 7/0.04 | 0.12 | 0.06 | 0.24 | - | |
| 36 | 7/0.05 | 0.15 | 0.06 | 0.27 | 1900 | |
| 34 | 7/0.064 | 0.19 | 0.075 | 0.34 | 900 | |
| 32 | 7/0.08 | 0.24 | 0.10 | 0.44 | 588.85 | |
| 30 |
1/0.254 7/0.10 |
0.25 0.30 |
0.12 0.12 |
0.49 0.54 |
361 381 |
1000 |
| 28 |
1/0.32 7/0.127 |
0.32 0.38 |
0.12 0.12 |
0.56 0.62 |
227 239 |
|
| 26 |
1/0.404 7/0.16 |
0.40 0.48 |
0.12 0.12 |
0.64 0.72 |
143 150 |
|
| 24 |
1/0.511 11/0.16 |
0.51 0.60 |
0.15 0.15 |
0.81 0.91 |
89.3 94.2 |
|
| 22 |
1/0.643 17/0.16 |
0.64 0.76 |
0.15 0.15 |
0.94 1.06 |
56.4 59.4 |
|
| 20 |
1/0.813 26/0.16 |
0.81 0.94 |
0.15 0.15 |
1.11 1.24 |
35.2 36.7 |
|
