Ul1354 28awg PE PTFE Insulation With Braid Shield Coaxial Cable For Tv Tvr Radio

UL1354 28AWG PE Insulation with Braid Shield Coaxial Cable for TV, TVR, radio

Product Description

1. The conductor uses a single or stranded wire of 40AWG or more, bare soft copper or tinned soft copper wire.
Solid, foamed or flame resistant PE insulation.
2.Woven isolation of bare soft copper or tinned soft copper wire.
3.Low loss, low latency and interference can be minimized.
4.Rated temperature: 60 degrees or 80 degrees,

5.rated voltage: 30 volts.
6.Can pass the UL VW-1 vertical flame resistance test.
7.Reference standard: UL 758, UL 1581.

Rated temperature: 60℃ or 80℃
Rated voltage: 30V
Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
Tinned or bare, stranded or solid copper conductor, 40 AWG minimum
Solid foamed or FRPE insulation
Tinned or bare copper wire spiral or braid shield
Passes UL VW-1 & CSA FT1 vertical flame test
Application: For internal or external wiring of TV, radio, receiver, VTR and
tape recorder,etc.

CHARACTERISTIC
High temperature resistance, low temperature resistance, anti-acid, anti-oil, antisepsis and moisture, UL758 & UL1581, RoHS compliance, passed VW-1.

APPLICATION

Apply to Household appliance, Illumination & Lighting & Headlamp, electric machines, temperature sensor, Military Series, Metallurgy Chemical series, Motor cars & Ships, Electrical Installation.

Item UL Certificated Coaxial Cable UL1354Conductor

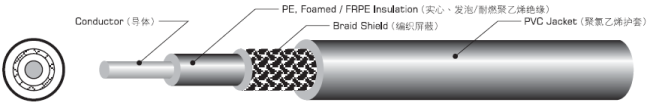

CABLE CONSTRUCTION
