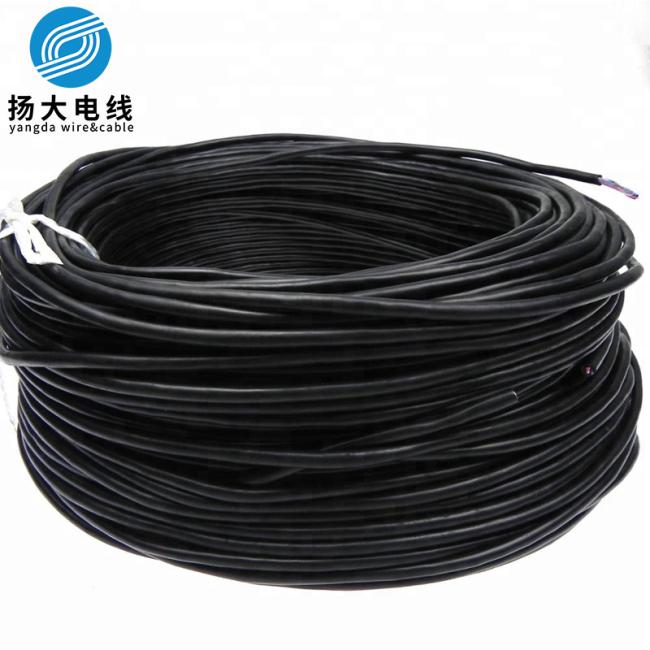

Ul 2851 Electrical Wires & Cable , Pvc Jacketed Flexible Video Cable
Price:
0.23usd per meter
MOQ:
6100 meters
Delivery Time:
10days
Brand:
YANGDA
Product Description
Flexible Video Cable Ul 2851 Pvc Jacketed Muti-Core Solid Or Tinned Copper Shielded Electrical Wire
Product Description:
1) Tinned,annealed,stranded or solid copper conductor.
2) PVC insulation.
3) Tinned or bare copper wire spiral or braid shield.
4) PVC jacketed.
5) Rated temperature:80°C.Rated voltage: 30Volts.
6) Passes UL VW-1 & CSA FT1 vertical flame test.
7) Executed standard:UL758,UL1581,CSA22.2.
Applications:
1) For internal wiring of electronic equipmengt, in class 2 systems.
| UL Style & CSA Type | Cores | Conductor | Insulation Thickness |
Nom.Dia | Spiral Shield | Jacket Thickness | Overall Diameter | Conductor Resistance at 20℃ |
|
| AWG | mm | mm | mm | No./mm | mm | mm | Ω/KM | ||
| UL2851 (Stranded) |
2C | 30 | 7/0.100 | 0.23 | 0.80 | 41/0.10 | 0.35 | 2.50 | 381.00 |
| 28 | 7/0.127 | 0.26 | 0.90 | 46/0.10 | 0.35 | 2.80 | 239.00 | ||
| 26 | 7/0.160 | 0.26 | 1.00 | 54/0.10 | 0.35 | 3.00 | 150.00 | ||
| 24 | 1/0.160 | 0.26 | 1.10 | 62/0.10 | 0.35 | 3.20 | 94.20 | ||
| 22 | 17/0.160 | 0.26 | 1.30 | 62/0.12 | 0.35 | 3.50 | 59.40 | ||
| 20 | 21/0.178 | 0.26 | 1.50 | 72/0.12. | 0.35 | 4.00 | 36.70 | ||
| 18 | 34/0.178 | 0.26 | 1.70 | 82/0.12 | 0.35 | 4.40 | 23.20 | ||
| 3C | 30 | 7/0.100 | 0.23 | 0.80 | 46/0.10 | 0.35 | 2.60 | 381.00 | |
| 28 | 7/0.127 | 0.26 | 0.90 | 53/0.10 | 0.35 | 3.10 | 239.00 | ||
| 26 | 7/0.160 | 0.26 | 1.00 | 62/0.10 | 0.35 | 3.10 | 150.00 | ||
| 24 | 1/0.160 | 0.26 | 1.10 | 69/0.10 | 0.35 | 3.40 | 94.20 | ||
| 22 | 17/0.160 | 0.26 | 1.30 | 72/0.12 | 0.35 | 3.70 | 59.40 | ||
| 20 | 21/0.178 | 0.26 | 1.50 | 82/0.12 | 0.35 | 4.10 | 36.70 | ||
| 18 | 34/0.178 | 0.26 | 1.70 | 96/0.12 | 0.35 | 4.60 | 23.20 | ||
| 4C | 30 | 7/0.100 | 0.23 | 0.75 | 56/0.10 | 0.35 | 2.80 | 381.00 | |
| 28 | 7/0.127 | 0.26 | 0.90 | 56/0.12 | 0.35 | 3.10 | 239.00 | ||
| 26 | 7/0.160 | 0.26 | 1.00 | 63/0.12 | 0.35 | 3.40 | 150.00 | ||
| 24 | 1/0.160 | 0.26 | 1.10 | 71/0.12 | 0.35 | 3.70 | 94.20 | ||
| 22 | 17/0.160 | 0.26 | 1.30 | 81/0.12 | 0.35 | 47.10 | 59.40 | ||
| 20 | 21/0.178 | 0.26 | 1.50 | 92/0.12 | 0.35 | 4.50 | 36.70 | ||
| 18 | 34/0.178 | 0.26 | 1.70 | 107/0.12 | 0.35 | 5.10 | 23.20 | ||
| 5C | 30 | 7/0.100 | 0.23 | 0.75 | 68/0.10 | 0.35 | 3.00 | 381.00 | |
| 28 | 7/0.127 | 0.26 | 0.90 | 62/0.12 | 0.35 | 3.40 | 239.00 | ||
| 26 | 7/0.160 | 0.26 | 1.00 | 71/0.12 | 0.35 | 3.70 | 150.00 | ||
| 24 | 1/0.160 | 0.26 | 1.10 | 19/0.12 | 0.35 | 4.00 | 94.20 | ||
| 22 | 17/0.160 | 0.26 | 1.30 | 90/0.12 | 0.35 | 4.40 | 59.40 | ||
| 20 | 21/0.178 | 0.26 | 1.50 | 103/0.12 | 0.35 | 4.90 | 36.70 | ||
| 18 | 34/0.178 | 0.26 | 1.70 | 120/0.12 | 0.35 | 5.60 | 23.20 | ||
| 6C | 30 | 7/0.100 | 0.23 | 0.75 | 59/0.12 | 0.35 | 3.20 | 381.00 | |
| 28 | 7/0.127 | 0.26 | 0.90 | 71/0.12 | 0.35 | 3.70 | 239.00 | ||
| 26 | 7/0.160 | 0.26 | 1.00 | 79/0.12 | 0.35 | 4.00 | 150.00 | ||
| 24 | 1/0.160 | 0.26 | 1.10 | 88/0.12 | 0.35 | 4.40 | 94.20 | ||
| 22 | 17/0.160 | 0.26 | 1.30 | 101/0.12 | 0.35 | 4.80 | 59.40 | ||
| 20 | 21/0.178 | 0.26 | 1.50 | 114/0.12 | 0.35 | 5.40 | 36.70 | ||
| 7C | 30 | 7/0.100 | 0.23 | 0.80 | 59/0.12 | 0.35 | 4.50 | 381.00 | |
| 28 | 7/0.127 | 0.26 | 0.90 | 71/0.12 | 0.35 | 3.20 | 239.00 | ||
| 26 | 7/0.160 | 0.26 | 1.00 | 79/0.12 | 0.35 | 4.00 | 150.00 | ||
| 24 | 1/0.160 | 0.26 | 1.10 | 88/0.12 | 0.35 | 4.40 | 94.20 | ||
| 22 | 17/0.160 | 0.26 | 1.30 | 101/0.12 | 0.35 | 4.80 | 59.40 | ||
| 20 | 21/0.178 | 0.26 | 1.50 | 114/0.12 | 0.35 | 5.40 | 36.70 | ||
