UL758 UL1581 Standard UL2547 Multi Core Electrical Cable For Recording Studios

Price Negotiable

Price: 0.31 usd per meter

MOQ: 6100 meters

Delivery Time: 10days

Brand: YANGDA

Product Description

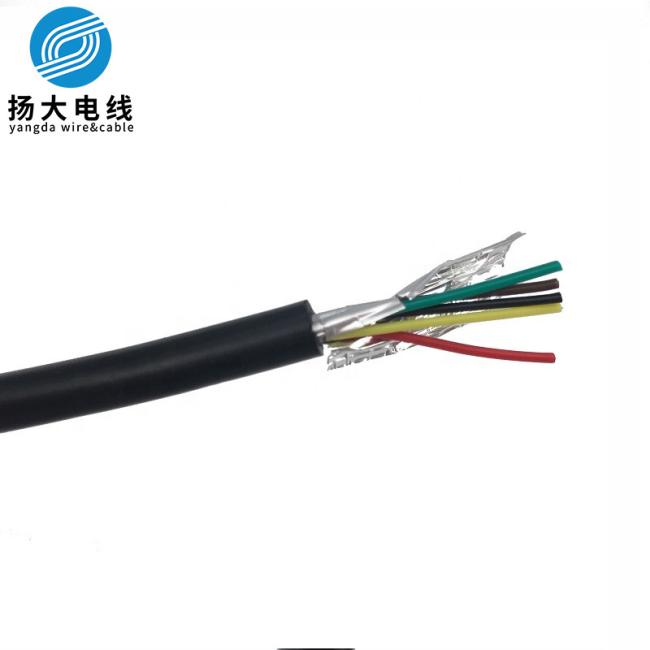

UL758 UL1581 Standard UL2547 Multi Core Electrical Cable For Recording Studios

Product Description:

1) Tinned,annealed,stranded or solid copper conductor.

2) PVC insulation.

3) PVC jacketed.

4) Tinned or bare copper wire, spiral sheild.

5) Rated temperature:80°C.Rated voltage: 300Volts..

6) Passes UL VW-1 & CSA FT1 vertical flame test.

7) Executive Standard: UL758,UL1581,CSA22.2.

Applications:

1) For use in recording studios, sound systems and electronic circuits.

UL Style & CSA Type	Conductor Cores	Conductor		Insulation Thickness	Nom.Dia	Spiral shield	Jacket Thickness	Overall diameter	Conductor Resistance at 20℃
UL Style & CSA Type	Conductor Cores	AWG	mm	mm	mm	No./mm	mm	mm	Ω/KM
UL2562 (Stranded)	2C	28	7/0.127	0.40	1.20	29/0.10	0.40	2.5×5.0	239.00
		26	7/0.160	0.40	1.30	35/0.12	0.40	2.6×5.2	150.00
		24	11/0.160	0.40	1.50	39/0.12	0.40	2.7×5.4	94.20
		22	17/0.160	0.40	1.70	42/0.12	0.40	2.8×5.6	59.40
	3C	28	7/0.127	0.40	1.20	39/0.10	0.40	2.5×7.5	239.00
	3C	26	7/0.160	0.40	1.30	35/0.12	0.40	2.8×8.4	150.00

UL Style & CSA Type	Cores	Conductor		Insulation Thickness	Nom.Dia	Spiral Shield	Jacket Thickness	Overall Diameter	Conductor Resistance at 20℃
UL Style & CSA Type	Cores	AWG	mm	mm	mm	No./mm	mm	mm	Ω/KM
UL2851 (Stranded)	2C	30	7/0.100	0.23	0.80	41/0.10	0.35	2.50	381.00
		28	7/0.127	0.26	0.90	46/0.10	0.35	2.80	239.00
		26	7/0.160	0.26	1.00	54/0.10	0.35	3.00	150.00
		24	1/0.160	0.26	1.10	62/0.10	0.35	3.20	94.20
		22	17/0.160	0.26	1.30	62/0.12	0.35	3.50	59.40
		20	21/0.178	0.26	1.50	72/0.12.	0.35	4.00	36.70
		18	34/0.178	0.26	1.70	82/0.12	0.35	4.40	23.20
	3C	30	7/0.100	0.23	0.80	46/0.10	0.35	2.60	381.00
		28	7/0.127	0.26	0.90	53/0.10	0.35	3.10	239.00
		26	7/0.160	0.26	1.00	62/0.10	0.35	3.10	150.00
		24	1/0.160	0.26	1.10	69/0.10	0.35	3.40	94.20
		22	17/0.160	0.26	1.30	72/0.12	0.35	3.70	59.40
		20	21/0.178	0.26	1.50	82/0.12	0.35	4.10	36.70
		18	34/0.178	0.26	1.70	96/0.12	0.35	4.60	23.20
	4C	30	7/0.100	0.23	0.75	56/0.10	0.35	2.80	381.00
		28	7/0.127	0.26	0.90	56/0.12	0.35	3.10	239.00
		26	7/0.160	0.26	1.00	63/0.12	0.35	3.40	150.00
		24	1/0.160	0.26	1.10	71/0.12	0.35	3.70	94.20
		22	17/0.160	0.26	1.30	81/0.12	0.35	47.10	59.40
		20	21/0.178	0.26	1.50	92/0.12	0.35	4.50	36.70
		18	34/0.178	0.26	1.70	107/0.12	0.35	5.10	23.20
	5C	30	7/0.100	0.23	0.75	68/0.10	0.35	3.00	381.00
		28	7/0.127	0.26	0.90	62/0.12	0.35	3.40	239.00
		26	7/0.160	0.26	1.00	71/0.12	0.35	3.70	150.00
		24	1/0.160	0.26	1.10	19/0.12	0.35	4.00	94.20
		22	17/0.160	0.26	1.30	90/0.12	0.35	4.40	59.40
		20	21/0.178	0.26	1.50	103/0.12	0.35	4.90	36.70
		18	34/0.178	0.26	1.70	120/0.12	0.35	5.60	23.20
	6C	30	7/0.100	0.23	0.75	59/0.12	0.35	3.20	381.00
		28	7/0.127	0.26	0.90	71/0.12	0.35	3.70	239.00
		26	7/0.160	0.26	1.00	79/0.12	0.35	4.00	150.00
		24	1/0.160	0.26	1.10	88/0.12	0.35	4.40	94.20
		22	17/0.160	0.26	1.30	101/0.12	0.35	4.80	59.40
		20	21/0.178	0.26	1.50	114/0.12	0.35	5.40	36.70
	7C	30	7/0.100	0.23	0.80	59/0.12	0.35	4.50	381.00
		28	7/0.127	0.26	0.90	71/0.12	0.35	3.20	239.00
		26	7/0.160	0.26	1.00	79/0.12	0.35	4.00	150.00
		24	1/0.160	0.26	1.10	88/0.12	0.35	4.40	94.20
		22	17/0.160	0.26	1.30	101/0.12	0.35	4.80	59.40
		20	21/0.178	0.26	1.50	114/0.12	0.35	5.40	36.70
