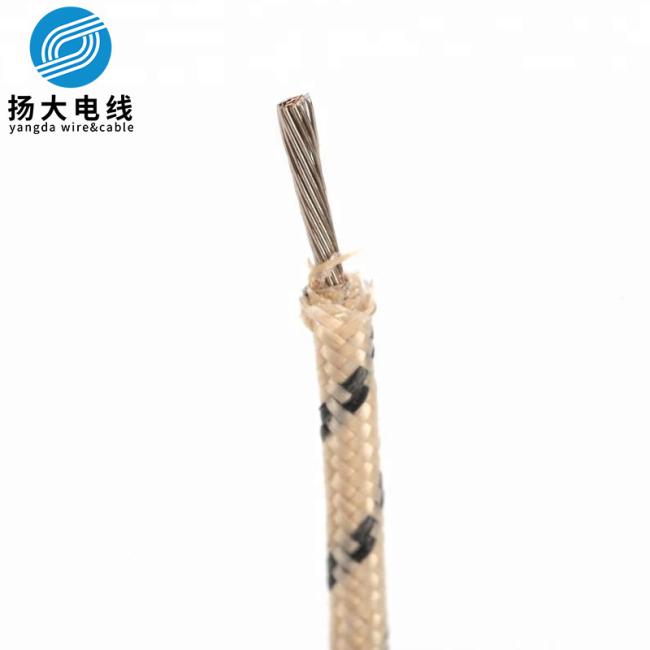

30awg-12awg Fiberglass Braided Silicon Rubber Wire Tinned Copper Conductor
Flame Retardant Cable Ul 3069 Ul 3070 Fiberglass Braided Silicon Rubber Insulated Heat Resistance Copper Wire
Product Description:
1)Conductor: 18AWG - 12AWG
2)Tinned,annealed,stranded or solid copper conductor.
3)Silicone Rubber insulation Braid:Fiberglass+Silicone
4) Rated temperature: 150 °C .Rated voltage:600volts
5) Uniform thickness of wire to ensure easy stripping and cutting.
6) Passes UL VW-1&CUL FT1 vertical flame test
7) Top coated conductor is available
Applications:
Apply to Household appliance,lumination&Lighting
Metallurgy&Headlamp,electric machines,tempurature
sensor,Military series,Metallurgy Chemical series,
Motor cars&Ships,Electrical installation
| UL Style& Cul Type | Conductor |
Insulation
Thickness
|
Overall
Diameter
|
Standard Put-up |
Conductor
Resistance at 20°C
|
||
| AWG | No/mm | mm | mm | Ft/Reel | M/Reel | Ω/KM | |
|
UL3070
CUL AWM I A
(Stranded)
|
18 | 7/0.39 | 0.76 | 3.05 | 1000 | 305 | 23.20 |
| 34/0.178 | 0.76 | 3.05 | 1000 | 305 | |||
| 16 | 7/0.5 | 0.76 | 3.39 | 1000 | 305 | 14.60 | |
| 26/0.25 | 0.76 | 3.39 | 1000 | 305 | |||
| 14 | 37/0.26 | 0.76 | 3.74 | 1000 | 305 | 8.96 | |
| 41/0.25 | 0.76 | 3.74 | 1000 | 305 | |||
| 12 | 45/0.32 | 0.76 | 4.30 | 1000 | 305 | 5.64 | |
| 65/0.25 | 0.76 | 4.30 | 1000 | 305 | |||
|
UL3070
CUL AWM I A
(Stranded)
|
18 | 1/1.02 | 0.76 | 2.84 | 2000 | 610 | 21.80 |
| 16 | 1/1.29 | 0.76 | 3.11 | 1000 | 305 | 13.70 | |
| 14 | 1/1.63 | 0.76 | 3.45 | 1000 | 305 | 8.62 | |
| 12 | 1/2.05 | 0.76 | 3.87 | 1000 | 305 | 5.43 | |
| Part NO. | Conductor | Insulation |
Braild thick mm |
MaximumResistanceat20℃ Ω/km |
|||
| AWG | NO./mm | Dia.mm |
Nom.Thick. mm |
Nom.Dia.mm | |||
| UL3069 | 26 | 7/0.160 | 0.48 | 0.76 | 2.04 | 0.15 | 139.76 |
| 24 | 11/0.160 | 0.61 | 0.76 | 2.17 | 0.15 | 88.36 | |
| 22 | 17/0.160 | 0.76 | 0.76 | 2.32 | 0.15 | 60.16 | |
| 20 | 21/0.178 | 0.94 | 0.76 | 2.5 | 0.15 | 38.58 | |
| Product Description: |
| 1. Rated temperature:150℃ |
| 2. Rated voltage:600V |
| 3. Reterence standard:UL Subject 758, UL1581, UL62 |
| 4. Tinned or bare,stranded or solid copper conductor |
| 5. Colour-coded silicone rubber insulation |
| 6. Covering for fiberglass braid |
| 7. Uniform insulation thickness to ensure easy stripping and cutting |
| 8. Passes UL VW-1, FT2 flame test |
