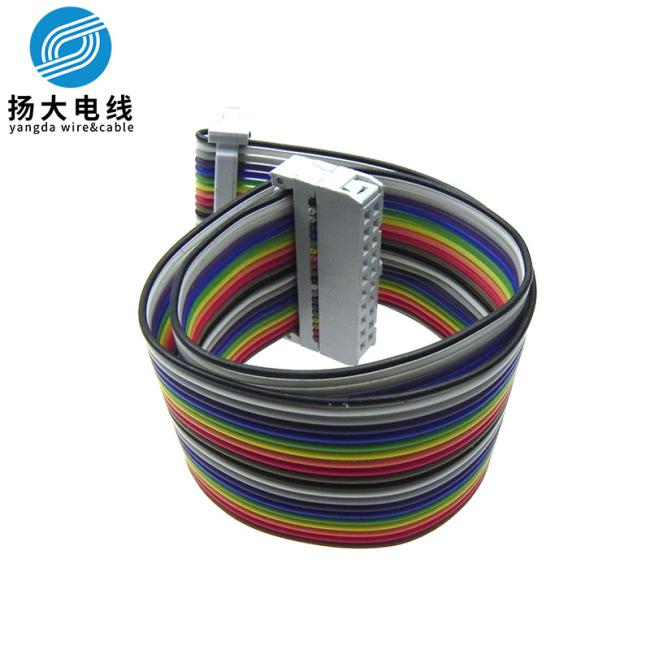

Ul1015 Ribbon Flat Cable , Round Ribbon Cable High Temperature Resistance
Price:
0.11 usd per meter
MOQ:
6100 m
Delivery Time:
5-8days
Brand:
YANGDA
Product Description
High Temperature Resistance Reach Standard Ribbon Cable Ul1015 Pvc Insulation Tinned Copper Flexible Flat Ribbon Cable
PRODUCTS DESCRIPTION:
1. Rated temperature:80 ℃
2. Rated voltage:300V
3. According to:UL subject 758,UL 1581
4. Solid or Steanded,tinned or bare copper conductor 32-16AWG
5. PVC insulation
6. Passes UL VW-1 & CSA FT1 Vertical flame test
7. Uniform insulation thickness of wire to ensure easy stripping and cutting
8. Environmental testing pass RoHS, REACH
9. Internal wiring of appliances or electronic equipment
| UL Style & CSA Type | Cores | Conductor | Number of Conductor | Pitch | Insulation Thickness | Overall Diameter | Conductor Resistance at 20℃ |
| NO | AWG | mm | mm | mm | Ω/KM | ||
| UL2468 (Stranded) |
2 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×3.00 | 94.20 |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×5.08 | 94.20 | ||
| 3 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×4.50 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×7.62 | 94.20 | ||
| 4 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×6.00 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×10.16 | 94.20 | ||
| 5 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×7.50 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×12.70 | 94.20 | ||
| 6 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×9.00 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×15.24 | 94.20 | ||
| 7 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×10.05 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×17.78 | 94.20 | ||
| 8 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×12.00 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×20.32 | 94.20 | ||
| 9 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×13.50 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×22.86 | 94.20 | ||
| 10 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×15.00 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×25.40 | 94.20 | ||
| 11 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×15.40 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.5×27.94 | 94.20 | ||
| 12 | 24 | 1/0.20or11/0.16 | 1.50 | 0.45 | 1.4×18.00 | 94.20 | |
| 24 | 7/0.20 | 2.54 | 0.45 | 1.4×30.48 | 94.20 | ||
| 13 | 24 | 7/0.20 | 1.50 | 0.45 | 1.5×19.50 | 94.20 | |
| 14 | 24 | 7/0.20 | 1.50 | 0.45 | 1.5×21.00 | 94.20 | |
| 15 | 24 | 7/0.20 | 1.50 | 0.45 | 1.5×19.50 | 94.20 |
| UL Style & CSA Type | Cores | Conductor | Number of Conductor | Pitch | Insulation Thickness | Overall Diameter | Conductor Resistance at 20℃ |
| NO | AWG | mm | mm | mm | Ω/KM | ||
| UL2468 (Stranded) |
2 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×2.9/2.8 | 150.00 |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×3.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×3.9 | 150.00 | ||
| 3 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×4.4/4.2 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×5.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×6.4 | 150.00 | ||
| 4 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×5.9/5.0 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×7.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×8.9 | 150.00 | ||
| 5 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×7.4/7.0 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×9.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×11.4 | 150.00 | ||
| 6 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×8.9/8.4 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×11.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×13.9 | 150.00 | ||
| 7 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×10.4/9.8 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×13.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×16.4 | 150.00 | ||
| 8 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×11.9/11.2 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×15.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×18.9 | 150.00 | ||
| 9 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×13.4/12.6 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×17.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×21.4 | 150.00 | ||
| 10 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×14.9/14 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×19.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×23.9 | 150.00 | ||
| 11 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×16.4/15.4 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×21.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×26.4 | 150.00 | ||
| 12 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×17.9/16.8 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×23.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×28.9 | 150.00 | ||
| 13 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×19.4/18.2 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×25.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×31.4 | 150.00 | ||
| 14 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×20.9/19.6 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×27.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×33.9 | 150.00 | ||
| 15 | 26 | 7/0.16 | 1.5or1.40 | 0.45 | 1.4×22.4/21.0 | 150.00 | |
| 26 | 7/0.16 | 2.00 | 0.45 | 1.4×29.4 | 150.00 | ||
| 26 | 7/0.16 | 2.54 | 0.45 | 1.4×36.4 | 150.00 |
