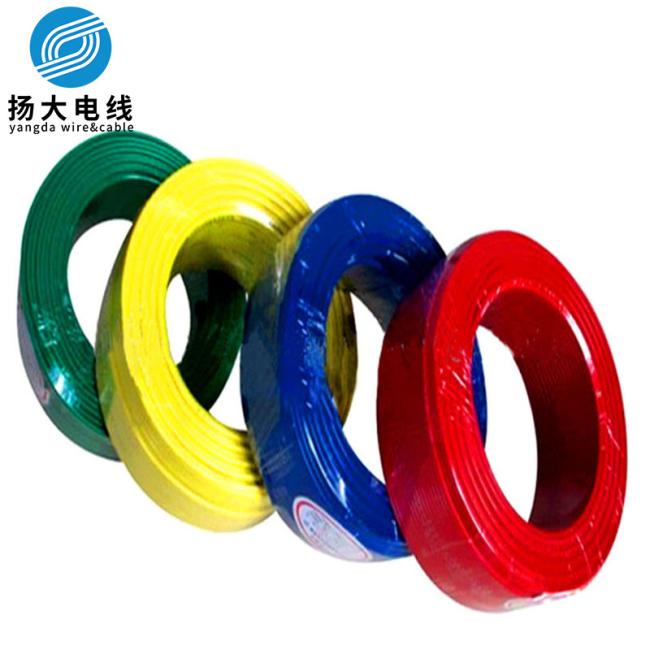

Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg pvc Insulated reach standard hook-up Wire

Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg Pvc Insulated Reach Standard Hook-Up Wire

Product Description

Rated temperature: 80 °C

Rated voltage: 300V

According to : UL758, UL1581, CSA C22.2

Solid or stranded, tinned or bare copper conductor 30-2 AWG

PVC insulation

Passes UL VW-1 & CSA FT1 Vertical flame test

Uniform insulation thickness of wire to ensure easy stripping and cutting

Environmental testing pass RoHS

Internal wiring of appliances or electronic equipment

- 8 AWG & larger - stranded bare copper or tinned copper
- 10 AWG - 16 AWG - stranded tinned copper
- 20 AWG - 24 AWG - stranded or solid tinned copper
- 18 AWG - solid bare, stranded tinned
- Other conductor types and strandings available by request

Insulation: - Color coded PVC, temperature range -40°C to 105°C

Applications: - Internal wiring of electrical and electronic equipment and appliances, internal wiring of panels and meters, point to point wiring

Additional Information: - All colors may be striped - Can be provided in twisted configurations - CT rating available for 1/0 and larger

Application

Internal wiring for electric or electronic equipment.
(Lead wire for primary circuits)
