China Pp Insulation Standard Robot Cable Uniform Insulation Wall Thickness For Easy Stripping for sale

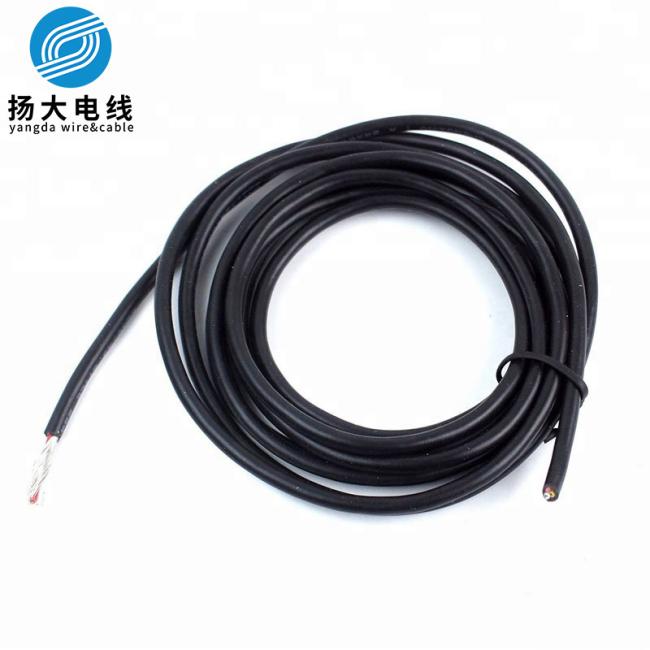

Pp Insulation Standard Robot Cable Uniform Insulation Wall Thickness For Easy Stripping

Price Negotiable

Price: 1usd per meter

MOQ: 10000m

Delivery Time: 10days

Brand: YANGDA

Product Description

Ul758 Standard Ul20938 Pp Insulation Low Voltage Multiple-Conductor Extruded Tpu Jacket Sensor Signal Robot Cable

Product Description:

Tinned stranded or bare annealed copper conductor.
Insulation material: PP, PVC, SR-PVC, HDPE, FR-PE
Rated temperature: 80C.
Rated voltage: 30V.
Uniform insulation wall thickness for easy stripping and cutting.
UL VW-1 and CSA FT-1/FT-2 vertical flame test verified.
Jacket material: Thermoplastic Polyurethane PUR / TPU
Standard executed: Appliance Wiring Material UL 758
100% RoHS compliant.

CharacterictisGood heat resistance, flame retardant and cold resistance

Can withstand certain mechanical external forces and wear resistance

The core wire is bright and easy to install.

Applications:

Internal wiring or external interconnection of electronic equipment.

UL Style& CUL Type	Cores	Conductor		Insulation Thickness	Nom.Dia	Shield Coverage	Jacket Thickness	Overall Dimeter	Conductor Resistance at 20℃
UL Style& CUL Type	Cores	AWG	No/mm	mm	mm	%	mm	mm	Ω/KM
UL20938 CUL (Stranded)	2C	30	7/0.100	0.23	0.80	>=65	0.76	3.60	381.00
		28	7/0.127	0.23	0.90	>=65	0.76	3.90	239.00
		26	7/0.16	0.23	1.00	>=65	0.76	4.00	150.00
		24	11/0.16	0.23	1.10	>=65	0.76	4.20	94.20
		22	17/0.16	0.23	1.30	>=65	0.76	4.60	59.40
		20	21/0.178	0.23	1.50	>=65	0.76	5.00	36.70
		18	34/0.178	0.23	1.80	>=65	0.76	5.60	23.20
		16	26/0.25	0.23	2.00	>=65	0.76	7.80	14.60
UL20938 CUL (Stranded)	3C	30	7/0.100	0.23	0.80	>=65	0.76	5.50	381.00
		28	7/0.127	0.23	0.90	>=65	0.76	5.70	239.00
		26	7/0.16	0.23	1.00	>=65	0.76	5.90	150.00
		24	11/0.16	0.23	1.10	>=65	0.76	6.10	94.20
		22	17/0.16	0.23	1.30	>=65	0.76	6.50	59.40
		20	21/0.178	0.23	1.50	>=65	0.76	7.00	36.70
		18	34/0.178	0.23	1.80	>=65	0.76	7.60	23.20
UL20938 CUL (Stranded)	4C	30	7/0.100	0.23	0.80	>=65	0.76	5.70	381.00
		28	7/0.127	0.23	0.90	>=65	0.76	5.90	239.00
		26	7/0.16	0.23	1.00	>=65	0.76	6.20	150.00
		24	11/0.16	0.23	1.10	>=65	0.76	6.50	94.20
		22	17/0.16	0.23	1.30	>=65	0.76	6.90	59.40
		20	21/0.178	0.23	1.50	>=65	0.76	7.40	36.70
UL20938 CUL (Stranded)	5C	30	7/0.100	0.23	0.80	>=65	0.76	6.00	381.00
		28	7/0.127	0.23	0.90	>=65	0.76	6.30	239.00
		26	7/0.16	0.23	1.00	>=65	0.76	6.40	150.00
		24	11/0.16	0.23	1.10	>=65	0.76	6.80	94.20
		22	17/0.16	0.23	1.30	>=65	0.76	7.40	59.40
UL20938 CUL (Stranded)	6C	30	7/0.100	0.23	0.80	>=65	0.76	6.40	381.00
		28	7/0.127	0.23	0.90	>=65	0.76	6.70	239.00
		26	7/0.16	0.23	1.00	>=65	0.76	7.00	150.00
		24	11/0.16	0.23	1.10	>=65	0.76	7.30	94.20
