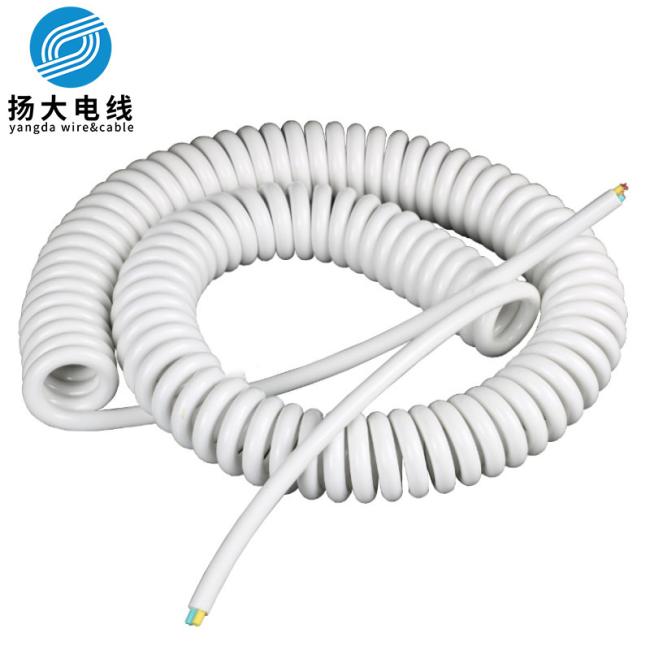

PUR Insulation Spiral Wire Coil Customized Size Ul758 Ul21029 Standard
Price:
1usd per meter
MOQ:
10000m
Delivery Time:
10days
Brand:
YANGDA
Product Description
Ul758 Standard Ul21029 Pvc Insulation Low Voltage Multi-Cores Pur Jacket Tinned Copper Machinary Cable
Product Description:
1) Tinned, annealed,stranded or solid copper conductor.
2) PUR Insulation
3) Rated temperature: 60°C,80°C.Rated voltage: 600volts.
4) Passes UL VW-1 & CSA FT1 vertical flame test
5) Executive Standard:UL758,UL1581,CSA22.2.
Applications:
External interconnection or internal wiring of electronic equipment.
| UL Style& CUL Type | Cores | Conductor | Insulation Thickness | Nom.Dia | Shield Coverage | Jacket Thickness | Overall Dimeter | Conductor Resistance at 20℃ | |
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
| UL21029 CUL (Stranded) | 2C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 6.00 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 6.30 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 6.40 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 6.60 | 94.20 | ||
| 22 | 17/0.16 | 0.76 | 2.40 | >=65 | 0.76 | 7.00 | 59.40 | ||
| 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 7.40 | 36.70 | ||
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 8.00 | 23.20 | ||
| 16 | 26/0.25 | 0.76 | 3.10 | >=65 | 0.76 | 10.20 | 14.60 | ||
| UL21029 CUL (Stranded) | 3C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 7.90 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 8.10 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 8.30 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 8.50 | 94.20 | ||
| 22 | 17/0.16 | 0.76 | 2.40 | >=65 | 0.76 | 8.90 | 59.40 | ||
| 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 9.40 | 36.70 | ||
| 18 | 34/0.178 | 0.76 | 2.80 | >=65 | 0.76 | 10.00 | 23.20 | ||
| UL21029 CUL (Stranded) | 4C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 8.10 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 8.30 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 8.60 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 8.90 | 94.20 | ||
| 22 | 17/0.16 | 0.76 | 2.40 | >=65 | 0.76 | 9.30 | 59.40 | ||
| 20 | 21/0.178 | 0.76 | 2.50 | >=65 | 0.76 | 9.80 | 36.70 | ||
| UL21029 CUL (Stranded) | 5C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 8.40 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 8.70 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 8.80 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 9.20 | 94.20 | ||
| 22 | 17/0.16 | 0.76 | 2.40 | >=65 | 0.76 | 9.80 | 59.40 | ||
| UL21029 CUL (Stranded) | 6C | 30 | 7/0.100 | 0.76 | 1.90 | >=65 | 0.76 | 8.80 | 381.00 |
| 28 | 7/0.127 | 0.76 | 2.00 | >=65 | 0.76 | 9.10 | 239.00 | ||
| 26 | 7/0.16 | 0.76 | 2.10 | >=65 | 0.76 | 9.40 | 150.00 | ||
| 24 | 11/0.16 | 0.76 | 2.20 | >=65 | 0.76 | 9.70 | 94.20 | ||
