Flat Flexible 2 Cores Wires And Cables Pvc Insulated Sheathed Chemicals Resistance
Price:
0.21 USD PER METER
MOQ:
3050M
Delivery Time:
10DAYS
Brand:
YANGDA
Product Description

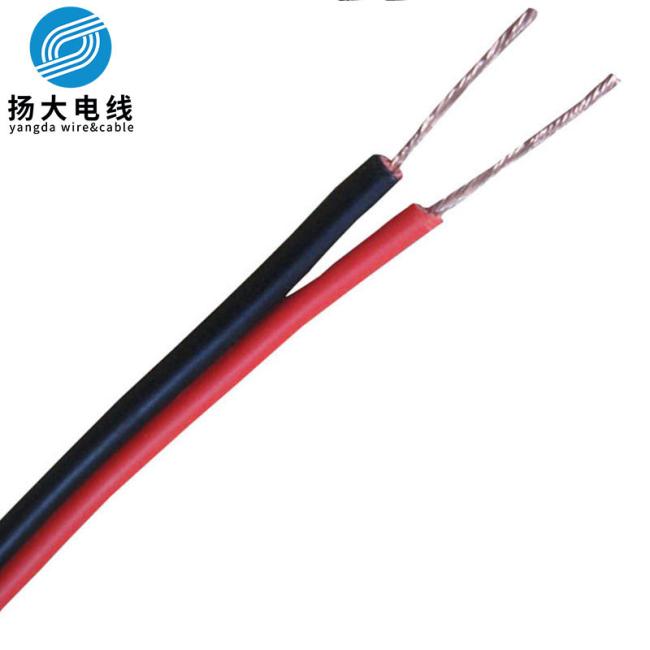

Flat Flexible 2 Cores Plain Annealed Wire PVC Insulated Non-Sheathed RVB Electrical Wire And Cables
1 Applying Standard
GB/T5023.1~.7-2008 JB/T8734.1~.5-2016 equivalent to IEC60227
GB/T19666-2005 GB/T18380.12-2008
2 Product Application
2.1 The B series is used for fixed installation for power unit with AC rated voltage 450/750V and below, R series is copper core PVC insulation flexible power cable(wires) used for home appliances, small electric tool, instrument, power lighting. with AC rated voltage 300/500V and below.
2.2 Long-term working temperature
The long-term working temperature of cable conductor for model BV-90, RV-90, the Max temperature is 90ºC,for the rest model, the Max temperature is 70ºC.
2.3 Environmental temperature:
The lowest environment temperature is 0 ºC for cable & wires laying.
3 Model & execution standard
|
Product Name |
Flat Flexible 2 cores Plain annealed wire PVC insulated non-sheathed RVB electrical wire and cables |
| Conductor Material | Class 5 flexible copper conductors, GB/T3956, IEC60228,BC6360. |
| Insulation Material | PVC Insulation |
| Sheath Material | non-sheath |
| Insulation Colour | red, black, or others. |
| Rated Voltage | 300/300V |
| Working Temperature | -15 to +70 ℃ |
| Production Standard | JB/T8734.3, IEC60227,BS EN 50525,VDE 0281,BS6500 |
|
Production Application |
For Anti-theft alarm, Automatic meter reading project,Computer networks, sound, Telecommunication,Instrumentation. |
|
Company Certificates |
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others. |
