32AWG-12AWG Insulated Cable , Pfa Insulated Thermocouple Wire
High Temperature Resistance AWM1180 PTFE Extruded TFE Insulation High Temperature Hook-Up Wire

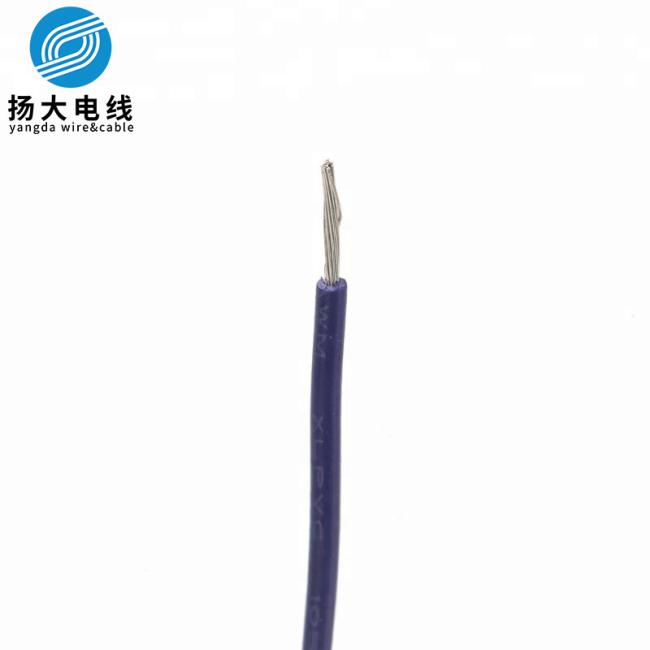

1) Product: PTFE WIRE
2) Style No.: AWM1180
3) Size: 32AWG~12AWG
4) Rated Voltage: 600V
5) Rated Temperature:-80°C~+250°C
6) Conductor: silver or Nickel copper
7) Insulation: PTFE
8) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc
Product features
Has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
Applications
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
| AWG | Conductor construction NO.×mm | Insulation Thickness mm | Outer Diameter mm | m/coil |
| 10 | 37×0.43 | 0.33 | 3.67 | 305 |
| 12 | 19×0.49 | 0.33 | 3.11 | 305 |
| 14 | 19×0.37 | 0.33 | 2.51 | 305 |
| 16 | 19×0.30 | 0.33 | 2.16 | 305 |
| 17 | 19×0.26 | 0.33 | 1.96 | 305 |
| 18 | 19×0.23 | 0.33 | 1.81 | 305 |
| 20 | 19×0.18 | 0.33 | 1.56 | 305 |
| 20 | 1×0.80 | 0.33 | 1.46 | 305 |
| 22 | 19×0.16 | 0.33 | 1.46 | 610 |
| 22 | 1×0.65 | 0.33 | 1.31 | 610 |
| 24 | 7×0.20 | 0.33 | 1.26 | 610 |
| 24 | 1×0.50 | 0.33 | 1.16 | 610 |
| 26 | 1×0.40 | 0.33 | 1.06 | 610 |
| 28 | 1×0.32 | 0.33 | 0.98 | 610 |
