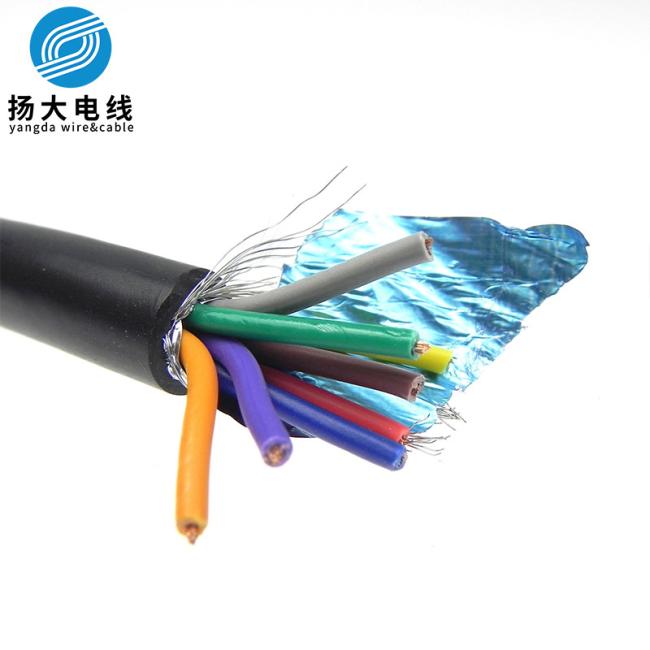

300/300V Sheathed Flexible Cable , High Flexibility Pvc Insulated Cables
| ITEM | High flexibility flexural PVC insulated and sheathed flexible cable |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Color | Black or your request |
| Rated Voltage | 300/300V |
| Temperature Range |
Fixed installation:-30℃~+90℃ Flexing installation:-5℃~+90℃ |
| Application | Machinery manufacturing, Airport equipment |
| MOQ Capacity | 500 meters |
| Certification | CCC,ISO9001,CE,UL,ROHS |
| Bending radius |
<25mm²:4xouter diameter ≥0.25mm²:6xouter diameter |
| Payment | T/T,L/C,D/A,Western Union |
Applications:
It is suitable for dry or wet rooms and installation without strong stress of free continuous reciprocating movement. It is special suitable for the working places of Woodworking Machine, machine tool equipment, logistics convey-er system, crane and other related equipment.
Properties:
Water proof, oil resistance, cool resistance, abrasion resistance, flame resistance, anti-ultraviolet.
Bending for life:above 5000000 times.
Conductor:
| 0.12mm² | 0.2mm² | 0.3mm² | 0.5mm² | 0.75mm² | 1mm² | 1.5mm² |
| 15/0.10 | 25/0.10 | 38/0.10 | 63/0.10 | 96/0.10 | 126/0.10 | 196/0.10 |
| 2.5mm² | 4.0mm² | 6.0mm² | ||||
| 322/0.10 | 504/0.10 | 336/0.15 |
For example:
-0.12mm² represents the cross-sectional area
-15 represents the number of conductor roots
-0.10 represents conductor diameter
Technical Data:
Rated voltage: 300/300V
Working temperature: Fixed installation:-30℃~+90℃
Flexing installation:-5℃~+90℃
The minimum bending radius:
Fixed installation: 5*external diameter
Flexing installation: Moved: When travel<10M bending radius of 7.5*d
When travel>10M bending radius of 10*d
Characteristics
