300V UL 2464 PVC Insulated Wire For X Ray Equipment
Multi-Core Series UL 2464 Jacketed Cable PVC Insulated Wire
Product description:
· UL listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.
· A-A-59544, NEMA WC-5, UL-758
· Standard Colors(denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9),
Pink (-10), Tan (-11); Striping and Other colors available upon request.
· Gasoline & oil resistant - Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.
|
Prouduct Name
|
UL 2464 Jacketed Cable
|
|
Nominal Voltage:
|
300V
|
|
Temperance Range:
|
-20℃~80℃
|
|
O.D.Tolerance:
|
±0.15mm
|
|
Testing Voltage:
|
1500V
|
|
Conductor:
|
Bare & Tinned Copper
|
|
Insulation:
|
SR-PVC
|
|
Colours:
|
Green-Black-Orange-Purple
|
|
Application:
|
Internal wiring or external interconnection of electronic equipment (such as desk-type calculators, dictating machines, or x-ray
equipment).
|
Applications:
1) SPT-1 & SPT-2 For TVs, radios and small light duty appliances
2) STP-2 is of heavier construction than SPT-1
3) SPT-3: Forheavy-duty use in damp locations; especially
Suitable for referigerators an room-size air conditioners
4)UL 20288: For use in chain link of chain suspended lighting fixtures

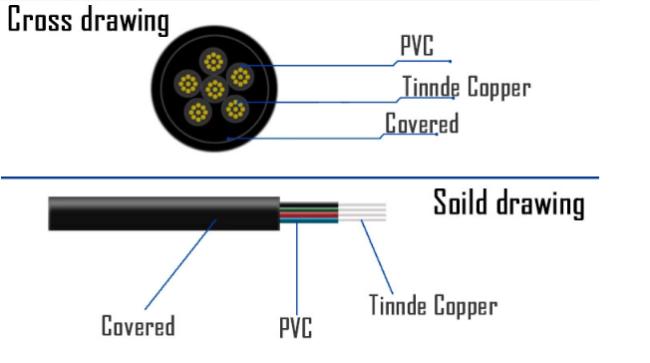

Construction:
| 类型 | 导体 | 绝缘 | |||
| AWG | No. of Conductor | Construction | Nom. Thickness | Diameter | |
| SPT-1 | 20 | 2 | 26/0.16 | 0.76 | 2.5×5.0 |
| 3 | 26/0.16 | 0.76 | 2.5×7.4 | ||
| 18 | 2 | 41/0.16 | 0.76 | 2.7×5.4 | |
| 3 | 41/0.16 | 0.76 | 2.7×8.0 | ||
| SPT-2 | 18 | 2 | 41/0.16 | 1.14 | 3.5×7.0 |
| 3 | 41/0.16 | 1.14 | 3.5×8.7 | ||
| 16 | 2 | 65/0.16 | 1.14 | 3.7×7.4 | |
| 3 | 65/0.16 | 1.14 | 3.7×9.6 | ||
| SPT-3 | 18 | 2 | 41/0.16 | 1.52 | 4.5×9.0 |
| 3 | 41/0.16 | 1.52 | 4.4×10.3 | ||
| 16 | 2 | 65/0.16 | 1.52 | 3.7×7.4 | |
| 3 | 65/0.16 | 1.52 | 4.8×11.2 | ||
| 14 | 2 | 41/0.254 | 2.03 | 6.3×12.6 | |
| 3 | 41/0.254 | 2.03 | 6.3×13.5 | ||
| 12 | 2 | 65/0.254 | 2.41 | 7.6×15.2 | |
| 3 | 65/0.254 | 2.41 | 7.6×15.8 | ||
| 10 | 2 | 65/0.32 | 2.79 | 9.1×18.2 | |
| 3 | 65/0.32 | 2.79 | 9.1×18.8 | ||
